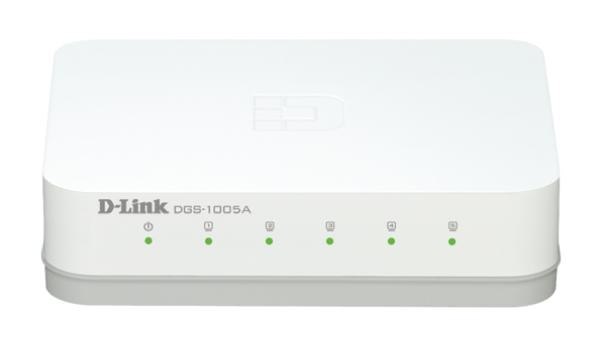

DGS-1005A
5-Port Gigabit Switch
Think Green
The D-Link 5-Port Gigabit Switch is part of D-Links new series of SOHO devices
that make use of D-Links Green Technology, providing energy savings, reduced
heat, and a longer product life without sacrificing performance or
functionality. An energy-efficient power adapter (EnergyStar Level V qualified),
minimized use of harmful substances (RoHS compliant), and recyclable packaging
make this switch truly environmentally friendly.
Conserves Energy
The DGS-1005A 5-Port Gigabit Switch helps you conserve energy automatically
through several methods. It automatically powers down ports that have no link,
allowing the switch to save substantial amounts of power by cutting power usage
for unused ports or ports connected to computers that have been shut down.
Environmentally Friendly
The 5-Port Gigabit Switch was designed with the environment in mind, and is
compliant with Energy Star Level V, as well as with the stringent CEC and MEPS
regulations that require the use of energy efficient power adapters. The switch
is also built to follow RoHS standards to minimize use of hazardous materials,
and uses recyclable packaging that helps reduce waste, complying with the WEEE
directive.
GIGABIT CONNECTION FOR HOME AND SOHO
The DGS-1005A offers an economical way for SOHO and small to medium businesses
benefit from the increased bandwidth of Gigabit Ethernet. It provides Gigabit
ports for easy expansion of your network and a quick way to upgrade your network
to Gigabit connectivity.
TECHNICAL SPECIFICATIONS
Key Features
Built-in D-Link Green Technology
Inexpensive Gigabit solution for Home/SOHO
Five 10/100/1000 Mbps Gigabit ports
10 Gbps switching fabric
Auto MDI/MDIX crossover for all ports
Secure store-and-forward switching scheme
Full/half-duplex for Ethernet/Fast Ethernet speeds
IEEE 802.3x Flow Control
Supports 9,216 Byte Jumbo Frames
RoHS compliant
Plug-and-play installation
Standards
IEEE 802.3 10BASE-T Ethernet (twistedpair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Protocol
CSMA/CD
Data Transfer Rates
Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)
Gigabit Ethernet:
2000 Mbps (full duplex)
Topology
Star
Network Cables
10BASE-T:
UTP CAT 3, 4, 5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX, 1000BASE-T:
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange
Auto MDI/MDIX adjustment for all ports
LED Indicators
Per port: Link/Activity/Speed
Per device: Power
Transmission Method
Store-and-forward
MAC Address Table
2K entries per device
MAC Address Learning
Automatic update
Packet Filtering/Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer
128 KBytes per device
DC Input
Switching 5V/1A Level ?V? Power Adapter
Power Consumption
AC input: 2.7 watts
DC input: 1.67 watts
MTBF
815,700 hours
Operating Temperature
0 to 40 ?C (32 to 104 ?F)
STORAGE TEMPERATURE
-10 to 70 ?C (14 to 158 ?F)
OPERATIN G HUMIDITY
10% to 90% RH non-condensing
Storage Humidity
5% to 90% RH non-condensing
Device Dimensions (W x D x H)
97 x 79 x 28 mm (3.8 x 3.1 x 1.1 inches)
Certifications
CE Class B
FCC Class B
ICES-003 Class B
VCCI Class B
C-Tick
Anatel
CCC
LVD
cUL/UL
⚫Non-blocking Architecture
⚫5 x Gigabit Ports
⚫IEEE 803.2az Energy-Efficient Ethernet (EEE)
⚫Compact Housing
⚫3 Year Warranty
