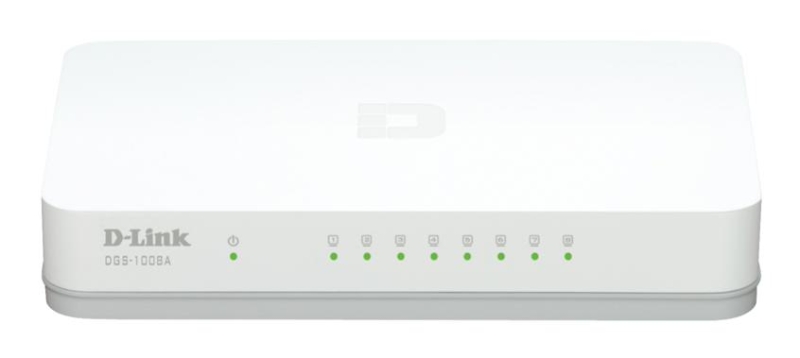

DGS-1008A 8 Port Gigabit Switch
Unmanaged 8-Port 10/100/1000 Base-T, and a power saving function
Description:
Implementation of technology D-Link Green
8-Port Gigabit Switch DGS-1008A is part of a new series of devices for SOHO companies from D-Link, which use a technology called D-Link Green, providing energy savings, reduced heat emission and a longer product life without sacrificing performance or functionality. Energy-saving power adapter (-certified Energy Star Level V), to minimize the use of hazardous substances (compliance directive RoHS) and recyclable packaging is environmentally friendly this switch.
Conservation of energy
8-Port Gigabit Switch DGS-1008A provides automatic saving energy in several ways. With the automatic power off if the connection ports are saving a significant amount of energy on inactive ports or ports connected to the computer is off.
Protecting the environment
8-Port Gigabit Switch DGS-1008A is designed with consideration of the environment and complies with Energy Star Level V, as well as compulsory regulations CEC and MEPS, which prescribe the use of energy efficient power adapters. Also, the switch is designed in accordance with RoHS standards to minimize the use of hazardous materials and recycle used packaging that helps reduce waste, following the provisions of Directive WEEE.
Features:
The main functions
Built-in D-Link Green
Inexpensive Gigabit solution for home networks and SOHO
8 x 10/100/1000 Mbit / s Gigabit
Switch fabric 16 Gbit / s
Auto MDI / MDIX on all ports
The method of switching: store-and-forward
the half-and full-duplex speeds for Ethernet / Fast Ethernet
802.3x Flow Control
Support for Jumbo-frames 9216 bytes
Compliance with the RoHS Directive
Installation of Plug-and-play
Standards
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
Auto-negotiation of ANSI / IEEE 802.3 NWay
802.3x Flow Control
Protocol
CSMA / CD
Data transfer rate
Ethernet
- 10 Mbit / s (half duplex)
- 20 Mbit / s (full duplex)
Fast Ethernet
- 100 Mb / s (half duplex)
- 200 Mbit / s (full duplex)
Gigabit Ethernet
- 2000 Mbit / s (full duplex)
Topology
Star
Network Cables
10BASE-T:
- UTP Cat. 3, 4, 5/5e (100m max.)
- EIA/TIA-586 100-ohm STP (100 meters max.)
100BASE-TX, 1000BASE-T:
- UTP Cat. 5/5e (100m max.)
- EIA/TIA-568 100-ohm STP (100 meters max.)
Media Interface Exchange
Automatic detection of MDI / MDIX on all ports
Indicators
The port: Link / Activity / Speed
On the device: Power
Switching Method
Store-and-forward
MAC-address table
8K entries per device
Study of MAC-addresses
Automatic update
Filtration rate / packet
Ethernet: 14,880 packets per second. to port
Fast Ethernet: 148,800 packets per second. to port
Gigabit Ethernet: 1488000 packets per second. to port
Buffer RAM
128K on device
Physical parameters
Input Power
Power Adapter Level "V" 5 V / 1 A
Power consumption
Input Power: 3.9 W AC, 3.06 Tues DC
MTBF
412,933 hours
Operating temperature
0 to 40 C
Storage temperature
-10 To 70 C
Operating Humidity
From 10% to 90% non-condensing
Humidity
From 5% to 90% non-condensing
Measurements
128 x 68,5 x 25,4 mm
Certificates
CE Class B
FCC Class B
ICES-003 Class B
VCCI Class B
C-Tick
Anatel
CCC
LVD
cUL / UL
