D-link Dpe-301gi Dpe-301gi
SKU
209169
Brand
MPN
DPE-301GI
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$113.00
Buy Now And Earn 113 Reward Points!

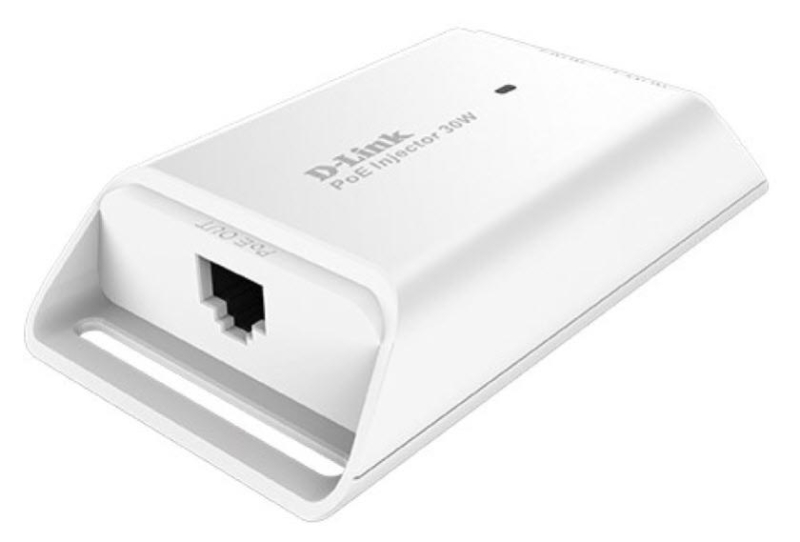

Gigabit PoE+ Injector
DPE-301GI
Features
Simplicity
Plug-and-Play with no software required
Easy installation of PoE devices where a power outlet is not available
Reduces installation and network equipment costs
Provides power over existing network cabling to PoE/PoE+ devices such as access points, network cameras and IP phones
Lightweight and compact
Output: 0.6 A at 54 V
Gigabit Connectivity with PoE+
Delivers PoE power up to 100 metres1 distance
IEEE 802.3at (PoE+) and 802.3af (PoE) compliant
Connect at speeds of up to 1000 Mbps
Convenience
Compact design for unobtrusive placement
Operating system independent

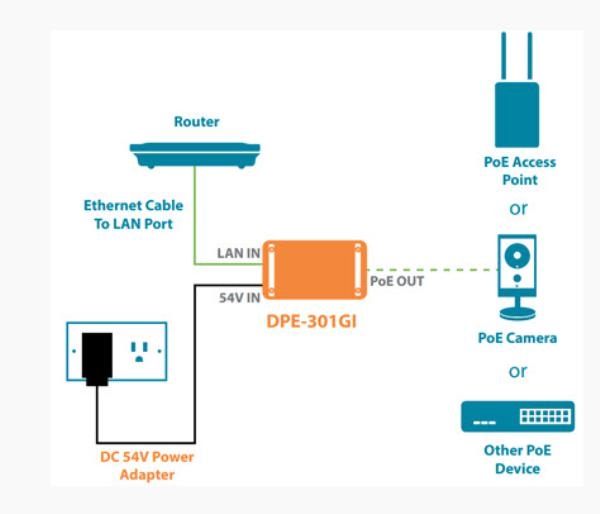

The IEEE 802.3at (PoE+)/802.3af (PoE) compliant DPE-301GI Gigabit PoE+ Injector is designed to supply data and up to 30 watts of power to PoE-enabled devices such as network cameras and wireless access points. The DPE-301GI gives you the ability to mount your PoE device virtually anywhere in a building, such as on ceilings or near entryways, by eliminating the need for a nearby power outlet. D-Link’s DPE-301GI combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet (PoE) signal for transmission over a single Ethernet cable, to up to 100 metre distance.
Cost Efficient Flexibility
Deploying the DPE-301GI saves both installation costs and equipment costs, allowing a single RJ-45 Ethernet cable to carry both power and data to each device. This PoE solution frees network devices from the restrictions of power availability by removing the need for a local power source. This reduces cable clutter, eliminates the need for dedicated electrical outlets in inconvenient places, and cuts down the time required for deployment.
High Speed Connectivity
The DPE-301GI Gigabit PoE+ Injector is designed to be deployed in situations where high bandwidth is demanded. Examples where the DPE-301GI is ideal include powering network devices such as professional network cameras with pan/tilt/zoom, night vision or internal heating/cooling features, as well as the latest wireless access points that support the high throughput 802.11ac standard.
Technical Specifications
Ports
PoE + Data Port (out):
Supports half/full-duplex operation
10/100/1000BASE-T port
IEEE 802.3 compliant
IEEE 802.3u compliant
IEEE 802.3at compliant
IEEE 802.3af compliant
IEEE 802.3ab compliant
Data Port (in)
DPE-301GI
Features
Simplicity
Plug-and-Play with no software required
Easy installation of PoE devices where a power outlet is not available
Reduces installation and network equipment costs
Provides power over existing network cabling to PoE/PoE+ devices such as access points, network cameras and IP phones
Lightweight and compact
Output: 0.6 A at 54 V
Gigabit Connectivity with PoE+
Delivers PoE power up to 100 metres1 distance
IEEE 802.3at (PoE+) and 802.3af (PoE) compliant
Connect at speeds of up to 1000 Mbps
Convenience
Compact design for unobtrusive placement
Operating system independent
The IEEE 802.3at (PoE+)/802.3af (PoE) compliant DPE-301GI Gigabit PoE+ Injector is designed to supply data and up to 30 watts of power to PoE-enabled devices such as network cameras and wireless access points. The DPE-301GI gives you the ability to mount your PoE device virtually anywhere in a building, such as on ceilings or near entryways, by eliminating the need for a nearby power outlet. D-Link’s DPE-301GI combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet (PoE) signal for transmission over a single Ethernet cable, to up to 100 metre distance.
Cost Efficient Flexibility
Deploying the DPE-301GI saves both installation costs and equipment costs, allowing a single RJ-45 Ethernet cable to carry both power and data to each device. This PoE solution frees network devices from the restrictions of power availability by removing the need for a local power source. This reduces cable clutter, eliminates the need for dedicated electrical outlets in inconvenient places, and cuts down the time required for deployment.
High Speed Connectivity
The DPE-301GI Gigabit PoE+ Injector is designed to be deployed in situations where high bandwidth is demanded. Examples where the DPE-301GI is ideal include powering network devices such as professional network cameras with pan/tilt/zoom, night vision or internal heating/cooling features, as well as the latest wireless access points that support the high throughput 802.11ac standard.
Technical Specifications
Ports
PoE + Data Port (out):
Supports half/full-duplex operation
10/100/1000BASE-T port
IEEE 802.3 compliant
IEEE 802.3u compliant
IEEE 802.3at compliant
IEEE 802.3af compliant
IEEE 802.3ab compliant
Data Port (in)
Supports half/full-duplex operation
IEEE 802.3 compliant
IEEE 802.3u compliant
IEEE 802.3ab compliant
10/100/1000BASE-T port
Physical
Dimensions (L x W x H): 109.8 x 62.2 x 24.5 mm
Weight: 65 grams
Power
Power Adapter: 54V/0.6A
Max consumption: 32.4 watts
Output: 0.6A at 54V
Temperature
Operating: 0 to 50C (32 to 122F)
Storage: -30 to 70C (-4 to 158 F)
Humidity
Operating: 5% to 95% non-condensing
Storage: 5% to 95% non-condensing
Certifications
CE, FCC, VCCI, RCM, RoHS, BSMI
The DPE-301GI offers a ready-to-use PoE solution by supplying up to 30 watts of output power using PoE+ technology. It is compliant with the IEEE 802.3af/at (PoE/PoE+) standards, ensuring compatibility with older and newer PoE devices. The DPE-301GI PoE Injector supports Gigabit connectivity and designed to be deployed in situations where high bandwidth is required.
⚫Plug-and-Play with no software required
⚫Easy installation of PoE devices where a power outlet is not available
⚫Reduces installation and network equipment costs
⚫Provides power over existing network cabling to PoE devices such as access points, IP cameras,and IP phones
⚫Lightweight and compact
⚫Output: 0.4 A at 48 V
⚫Plug-and-Play with no software required
⚫Easy installation of PoE devices where a power outlet is not available
⚫Reduces installation and network equipment costs
⚫Provides power over existing network cabling to PoE devices such as access points, IP cameras,and IP phones
⚫Lightweight and compact
⚫Output: 0.4 A at 48 V
