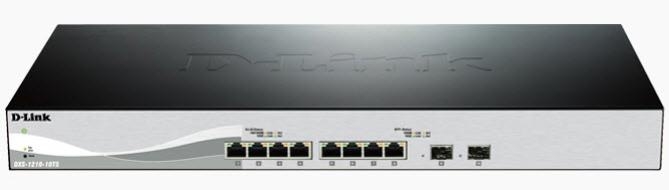

D-link Dxs-1210-10ts 10-port 10 Gigabit Websmart Switch With 8 10gbase-t Ports And 2 Sfp+

SKU
236008
Brand
MPN
DXS-1210-10TS
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $1,829.00 Regular Price $2,125.00
Buy Now And Earn 1829 Reward Points!

QUICK OVERVIEW

ports DXS-1210-10TS

10 Gigabit Ethernet For Everyone

10 Gigabit Switches used to be the exclusive realm of large companies. Now, D-Link’s DXS-1210 Series of 10 Gigabit Ethernet Smart Managed Switches brings the business benefits of high performance and low latency of 10G Ethernet to businesses of all sizes.

Enterprise Functionality at Small Business Prices

Our DXS-1210 switches are a cost-effective solution capable of servicing a range of network needs in businesses of any size.

Flexibility without Compromise

Supporting 10 GBASE-T / SFP+ combo ports, they provide flexibility across a network allowing easier network integration, and with high-performance and low latency they fulfil the need for virtualisation, cloud services and server-to-server applications - perfect for small to medium sized businesses.

High Performance and Low Latency

D-Link’s DXS-1210 Series specifically delivers up to 238* Mbps Maximum Packet Forwarding Rate enabling simultaneous traffic processing on all ports at line rate without any packet loss.

Switching capacity of up to 320 Gbps for the DXS-1210-16TC, up to 240 Gbps for the DXS-1210-12TC and up to 200 Gbps for the DXS-1210-10TS.

Advanced Green Technology

The DXS-1210 Switch Series offers advanced green technology without sacrificing performance or functionality. We take the approach to green IT one step further by incorporating a special chipset with advanced silicon technology for efficient use of energy.



Product Comparison


  DXS-1210-10TS DXS-1210-12TC DXS-1210-16TC
Total Non-Blocking Throughput 200 Gbps 240 Gbps  320 Gbps
10G Base-T over copper 8 8/10*  12/14*
SFP+ Ports 2 2  2
SFP+/Combo - 2  2
Max. Power Consumption 69 watts 91 watts  91 watts
Standby Power Consumption 32 watts 43 watts  44 watts

General

Interfaces
DXS-1210-10TS
8-port 10GBASE-T
2-port SFP+
DXS-1210-12TC
8-port 10GBASE-T
2-port SFP+
2-port 10GBASE-T/SFP+ combo design
DXS-1210-1TC6
12-port 10GBASE-T
2-port SFP+
2-port 10GBASE-T/SFP+ combo design

Port Standard & Functions
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3az compliance
IEEE 802.3an 10GBASE-T 10GbE over copper
IEEE 802.3ae 10GbE over fiber
IEEE 802.3z 1000BASE-X
Auto MDI/MDIX support for 1000/10GBASE-T

Network Cables for 10GBASE-T
CAT-6 (30 m max)
CAT-6A
CAT-7(100 m max)

Media Interface Exchange
Auto MDI/MDIX adjustment for all twisted-pair ports

Performance

Switching Capacity
DXS-1210-10TS: 200 Gbps
DXS-1210-12TC: 240 Gbps
DXS-1210-16TC: 210 Gbps

Maximum Packet Forwarding Rate
DXS-1210-10TS: 148.8 Mpps
DXS-1210-12TC: 178.56 Mpps
DXS-1210-16TC: 238.08 Mpps

Transmission Method
Store-and-forward

MAC Address Table
Up to 16 ,000 entries per device

Physical/Environmental

AC Input
100 to 240 VAC

Maximum Power Consumption
DXS-1210-10TS: 68.67 watts
DXS-1210-12TC: 90.81 watts
DXS-1210-16TC: 90.81 watts

Standby Power Consumption
DXS-1210-10TS: 31.59 watts
DXS-1210-12TC: 42.65 watts
DXS-1210-16TC: 43.65 watts

Operating Temperature
-5 to 50 ˚ C (23 to 122 ° F)

Storage Temperature
-40 to 70 ˚ C (-40 to 158 ° F)

Operating Humidity
0 % to 95 % non-condensing

Storage Humidity
0 % to 95 % non-condensing

Dimensions (L x W x H)
440 x 210 x 44 mm (17.36 x 8.26 x 1.73 inches)

Weight
DXS-1210-10TS: 3.1 kg
DXS-1210-12TC: 3.15 kg
DXS-1210-16TC: 3.15 kg

Diagnostic LEDs
Link/Activity/Speed (Per 10GBASE-T port)
Link/Activity/Speed (Per 10G SFP+ port)
Power/Fan (Per device)

Certifications
CE
FCC
C-Ticket
VCCI
BSMI
CCC

Safety
cUL
CB
CE
CCC
BSMI
Software

L2 Features
MAC Address Table
Up to 16K entries
Static MAC Addresses
1K
IGMP Snooping
IGMP v1/v2 Snooping
IGMP v3 awareness
Supports 384 IGMP groups
Supports at least 128 static multicast addresses
Per VLAN IGMP Snooping
Support host-based fast leave
MLD Snooping
MLD v1 Snooping
MLD v2 awareness
Support 384 groups
Support 128 static multicast addresses
Support host-based fast leave
LLDP
LLDP-MED
Spanning Tree Protocol
802.1D STP
802.1w RSTP
802.1s MSTP
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Port Mirroring
One-to-One
Many-to-One
Supports Mirroring for Tx/Rx/Both
802.3ad Link Aggregation:
Maximum of 8 groups/8 ports per group
Jumbo Frame
Up to 9KB
Loopback Detection
ERPS (Ethernet Ring Protection Switching)

VLAN
802.1Q VLAN
Port-based VLAN
4K VLAN Groups
Configurable VID
1~4094
Voice VLAN
Auto Surveillance VLAN
GVRP1
Asymmetric VLAN

Quality of Service (QoS)
CoS based on
802.1p Priority Queues
DSCP
ToS
IPv6 Traffic Class
TCP/UDP port
VLAN ID
MAC Address
Ether Type
IP Address
Protocol Type
IPv6 Flow Label
802.1p Priority Queue
8 queues per port
Queue Handling
Strict
Weighted Round Robin (WRR)
Deficit Round Robin (DRR)
Weighted Deficit Round Robin (WDRR)
Strict + WDRR
Bandwidth Control
Port-based (Ingress/Egress, min. granularity 64 Kbps)
iSCSI Awareness1

L3 Features
IP Interface
Supports 16 IPv4/v6 interfaces
ARP
128 Static ARP
Default Route
IPv6 Neighbor Discovery (ND)
Static Route
Max. 64 IPv4 entries
Max. IPv6 entries

Access Control List (ACL)
Max. 50 access list
Max. 256 ACL rules
Max. 50 VLAN access map1
ACL based on
802.1p priority
VLAN1
MAC address
Ether type
IP address
DSCP
Protocol type
TCP/UDP port number
IPv6 Traffic Class
IPv6 flow label

Security
Broadcast/Multicast/Unicast Storm Control
D-Link Safeguard Engine
DHCP Server Screening
IP-MAC-Port Binding
DHCP Snooping1
IP Source Guard1
Dynamic ARP Inspection1
IPv6 Snooping1
IPv6 Source Guard1
DHCPv6 Guard1
IPv6 ND Inspection1
IPv6 Route Advertisement (RA) Guard1
Traffic Segmentation
SSH1
Support v1/ v2
Support IPv4/ IPv6
SSL
Support v1/v2/v3
Support IPv4/IPv6
ARP Spoofing Prevention1
Max. 127 entries
DoS Attack Prevention
Port Security
Supports up to 6656 MAC addresses per port
Duplicate Address Detection

OAM
Cable Diagnostics

AAA
Web-based Access Control (WAC)1
Support local/RADIUS database
Support Port-based access control
Support Host-based access control
Support Dynamic VLAN Assignment
Identity-driven Policy (VLAN/ACL/QoS) Assignment
802.1X Authentication1
Support Dynamic VLAN Assignment
Identity-driven Policy (VLAN/ACL/QoS) Assignment
Supports local/RADIUS database
Supports Port-based access control
Supports Host-based access control
Supports EAP, OTP, TLS, TTLS, PEAP
Support IPv4/IPv6 RADIUS Server1
Support IPv4/IPv6 TACACS+1
Guest VLAN1
Compound Authentication1
Authentication for management access
Authentication Database Failover1
MAC-based Access Control (MAC)1
Support local/RADIUS database
Support Port-based access control
Support Host-based access control
Support Dynamic VLAN Assignment
Identity-driven Policy (VLAN/ACL/QoS) Assignment

Management
Web-based GUI
D-Link Network Assistant Utility
Compact CLI
Telnet Server
TFTP Client
Configurable MDI/MDIX
SNMP
Supports v1/v2c/v3
SNMP Trap
Smart Wizard
LLDP
LLDP-MED
DHCP Relay1
System Log
BootP/DHCP Client
SNTP
ICMP v6
IPv4/v6 Dual Stack
DHCP Auto Configuration1
RMON v1/v21
Trusted Host
Dual Images
Dual Configurations
DNS Client1
Debug command

Green V3.0 Technology
Power Saving by:
LED Shutoff
System Hibernation
Port Shutoff

MIB/RFC Standards
RFC 783 TFTP
RFC 951 BootP/DHCP Client
RFC 1157 SNMP v1, v2, v3
RFC 1213 MIB II
RFC 1215 MIB Traps Convention
RFC 1350 TFTP
RFC 1493 Bridge MIB
RFC 1769 SNTP
RFC 1542 BootP/DHCP Client
RFC 1901 SNMP v1, v2, v3
RFC 1907 SNMP v2 MIB
RFC 1908 SNMP v1, v2, v3
RFC 2131 BootP/DHCP Client
RFC 2138 RADIUS Authentication1
RFC 2139 RADIUS Authentication
RFC 2233 Interface Group MIB
RFC-2246 SSL
RFC 2475
RFC 2570 SNMP v1, v2, v3
RFC 2575 SNMP v1, v2, v3
RFC 2598 CoS
RFC 2618 RADIUS Authentication1
RFC 2819 RMON v1
RFC 2865 RADIUS Authentication
RFC 3164 System Log
RFC 3195 System Log
RFC 3411-17 SNMP
D-Link Private MIB
LLDP MIB
Zone Defense MIB
2233 Interface Group MIB

D-Link’s DXS-1210 series 10 Gigabit Ethernet Smart Switches are cost effective 10 GbE switches capable of servicing a range of network needs in any business. Supporting 10GBASE-T and SFP+ ports, they provide connection flexibility across a network allowing easier network integration. With high performance and low latency, these switches can fulfill the needs for virtualization, cloud services and server-to-server applications, making it perfect for SMB customers.
⚫Energy Saving
⚫Extensive Management and Layer 2 Features
⚫QoS, Bandwidth Control
⚫Secure your Network
⚫Versatile Management
⚫Limited Lifetime Warranty
