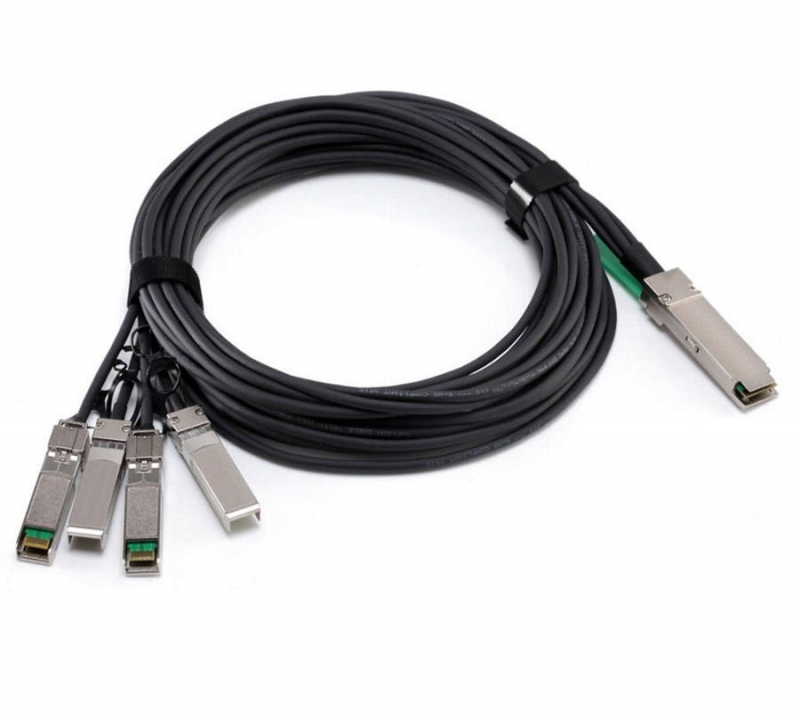

Upgrade your data centre or enterprise network with this high-performance, Dell-compatible 40G QSFP+ to 4x 10G SFP+ Direct Attach Copper (DAC) breakout cable. This 3-metre Twinax cable provides a cost-effective and reliable solution for connecting 40Gb Ethernet QSFP+ ports on switches to four separate 10Gb Ethernet SFP+ ports on servers, storage arrays, or other networking equipment. It's the ideal choice for high-density, short-range interconnects within a rack, offering a significant saving over the use of optical transceivers.

Engineered for seamless compatibility with Dell networking devices, this passive DAC cable is programmed to be recognised and perform identically to the original manufacturer's equipment. Its passive design ensures extremely low latency and minimal power consumption, contributing to a more energy-efficient and cooler-running data centre. The robust Twinax cabling provides excellent signal integrity for reliable 40Gbps aggregate data throughput.

This breakout cable simplifies your network topology by allowing a single 40G port to serve up to four 10G devices, maximising port utilisation and reducing cable clutter. Built to meet stringent Multi-Source Agreement (MSA) standards, this cable guarantees broad interoperability and is a plug-and-play solution for quick and easy deployment in your high-speed network environment.

FEATURES

• Fully compatible with Dell networking equipment
• Splits one 40Gbps QSFP+ port into four 10Gbps SFP+ ports
• Passive design for low power consumption and minimal latency
• Cost-effective alternative to optical transceivers for short distances
• 3-metre length ideal for in-rack and rack-to-rack connections
• Hot-pluggable for easy installation without interrupting network traffic
• Built to comply with MSA (Multi-Source Agreement) standards

SPECIFICATIONS

• Compatible OEM: Dell
• Connector A: 1x QSFP+ 40Gbps
• Connector B: 4x SFP+ 10Gbps
• Cable Type: Passive Direct Attach Copper (DAC) Twinax Cable
• Data Rate: 40Gbps (4x 10Gbps)
• Length: 3m
• Wire Gauge: 30AWG
• Power Consumption: <0.5W
• Operating Temperature: 0 C to 70 C

WARRANTY

3-Years Limited Warranty
