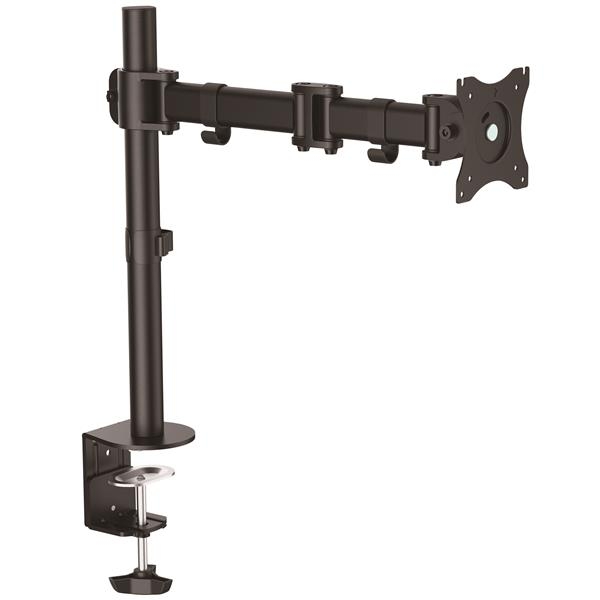

Startech Desk Mount Monitor Arm - Articulating Arm - Heavy Duty Steel - For Vesa Mount Monitors

SKU
253866
Brand
MPN
ARMPIVOTB
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$117.00
Buy Now And Earn 117 Reward Points!

QUICK OVERVIEW

up to 27in and up to 17.6 lb. (8 kg) ARMPIVOTB

Save valuable desk space and position your monitor in a more comfortable viewing position. This durable desk-mount monitor arm makes it easy to suspend your display above your work area. It features an articulating arm that enables you to tilt, swivel and rotate your screen, to create a more ergonomic workspace and enhance productivity.

ARMPIVOTB with VESA mount compatible monitor in landscape position

Mount your monitor to save valuable space

The single-monitor mount enables you to free up desk space by raising your screen off of your desk. It gives you more room to work by removing the monitor’s bulky base from your desk surface. It’s a quick and cost-effective way to maximize your available desk space, which makes for a more comfortable workstation and a more productive work environment.

ARMPIVOTB in portrait position

Adjust the position of your monitor with ease

The articulating arm gives you maximum workspace flexibility. You can extend the arm up to 17” (428 mm), along with swivel (180 degrees) and tilt (up to 90 degrees) adjustments that make it easy to find the perfect viewing angle. The arm offers smooth 360-degree screen rotation, so it’s easy to switch from landscape to portrait orientation, to best meet your work requirements. You can also adjust the height of your monitor along the pole to your desired viewing position, to a maximum height of 17.7" (450 mm).

Rugged Steel Design

With its heavy-duty solid steel construction, the monitor mount provides long-lasting performance. The monitor arm supports a flat-panel display 13” to 27” (330 to 685.8 mm) in size and up to 17.6 lb. (8 kg) in weight.

Easy installation

The single-monitor arm makes it easy to mount your VESA mount compatible display above your desk, table or other surfaces, using the included C-clamp or grommet mount. For easier mounting, the VESA mount features notches that let you pre-set the mounting screw, then slide the monitor in place and tighten the screw. To help keep your work area free of clutter, the monitor arm also features cable clips that keep your cables neatly out of sight.

The ARMPIVOTB is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Performance
Maximum Height450 mm [17.7 in]
Minimum Display Size13"
Swivel / Pivot180?
Tilt+ 45? / - 45?
Weight Capacity (Per Display)8 kg [17.7 lb]
Physical Characteristics
ColorBlack
Enclosure TypeSteel
Product Height446 mm [17.6 in]
Product Length108 mm [4.3 in]
Product Weight3 kg [6.7 lb]
Product Width462 mm [18.2 in]
What's in the Box
Included in Package5 mm hex key
6 mm hex key
cable-management clip
desk clamp
desk-clamp screw
grommet baseplate
grommet plate
instruction manual
M4x12 mm screws
M5x12 mm screws
monitor arm
pole
rubber pads
washers
Performance
Maximum Display Size27in
Maximum Arm Extension428 mm [16.9 in]
Height AdjustmentYes
Display Rotation360?
Packaging Information
Shipping (Package) Weight3.1 kg [6.8 lb]
Hardware
WallmountableNo
VESA Hole Pattern(s)75x75 mm
100x100 mm
Mounting OptionsDesk & Grommet Clamp
Cable ManagementYes
ArticulatingYes
# of Displays Supported1
