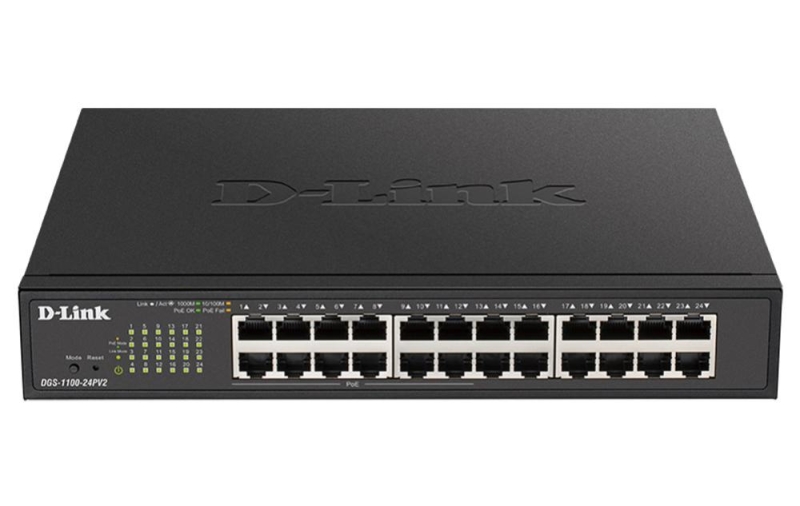

D-Link 24-Port Smart Managed PoE Switch DGS-1100-24PV2
SKU
366422
Brand
MPN
DGS-1100-24PV2
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $514.00 Regular Price $591.00
Buy Now And Earn 514 Reward Points!
D-Link 24-Port Gigabit Smart Managed PoE Switch with 12 10/100/1000 Mbps and 12 PoE Ports
The DGS-1100V2 Series supports surveillance VLAN for IP surveillance deployments. This gives video traffic a dedicated VLAN and higher priority through the switch, separating surveillance traffic from the rest of the network. This ensures security and guarantees the quality of the video traffic, sparing businesses the added cost of dedicated surveillance hardware. Bandwidth Control can reserve bandwidth on a per-port basis for important functions that require larger bandwidth or have higher priority.
RJ-45 Ports: 24RJ-45 Speeds: 10/100/1000Combo Ports (RJ-45 + SFP): 12 Mbps + 12 PoE PortsSFP (Small Form-Factor Pluggable) Ports : 0SFP Speeds: 0PoE++ (60w) or higher available?: YesNumber of PoE Ports: 12Extended PoE?: NoCapacity in Millions of Packets per Second (mpps): 35.71 MppsSwitching Capacity in Gigabits per Second (Gbps): 48 GbpsWeb-based GUI: YesRedundant Power Supply: No19" Rack Mountable: Desktop or 19, rack mount (mounting brackets included)DIN-Rail Mountable: NoStacking Capacity (Physical): NoStacking Capacity (Virtual): NoIPv4 Routing: YesIPv6 Routing: YesDHCP (Dynamic Host Configuration Protocol) Server Screening: YesRuggedized: NoOperating Temperature: -5 to 50 CUnit dimensions: 280 x 230 x 44 mmWarranty Licence: Limited Lifetime Warranty
RJ-45 Ports: 24
RJ-45 Speeds: 10/100/1000
Combo Ports (RJ-45 + SFP): 12 Mbps + 12 PoE Ports
SFP (Small Form-Factor Pluggable) Ports : 0
SFP Speeds: 0
PoE++ (60w) or higher available?: Yes
Number of PoE Ports: 12
Extended PoE?: No
Capacity in Millions of Packets per Second (mpps): 35.71 Mpps
Switching Capacity in Gigabits per Second (Gbps): 48 Gbps
Web-based GUI: Yes
Redundant Power Supply: No
19" Rack Mountable: Desktop or 19, rack mount (mounting brackets included)
DIN-Rail Mountable: No
Stacking Capacity (Physical): No
Stacking Capacity (Virtual): No
IPv4 Routing: Yes
IPv6 Routing: Yes
DHCP (Dynamic Host Configuration Protocol) Server Screening: Yes
Ruggedized: No
Operating Temperature: -5 to 50 C
Unit dimensions: 280 x 230 x 44 mm
Warranty Licence: Limited Lifetime Warranty
The DGS-1100V2 Series supports surveillance VLAN for IP surveillance deployments. This gives video traffic a dedicated VLAN and higher priority through the switch, separating surveillance traffic from the rest of the network. This ensures security and guarantees the quality of the video traffic, sparing businesses the added cost of dedicated surveillance hardware. Bandwidth Control can reserve bandwidth on a per-port basis for important functions that require larger bandwidth or have higher priority.
RJ-45 Ports: 24RJ-45 Speeds: 10/100/1000Combo Ports (RJ-45 + SFP): 12 Mbps + 12 PoE PortsSFP (Small Form-Factor Pluggable) Ports : 0SFP Speeds: 0PoE++ (60w) or higher available?: YesNumber of PoE Ports: 12Extended PoE?: NoCapacity in Millions of Packets per Second (mpps): 35.71 MppsSwitching Capacity in Gigabits per Second (Gbps): 48 GbpsWeb-based GUI: YesRedundant Power Supply: No19" Rack Mountable: Desktop or 19, rack mount (mounting brackets included)DIN-Rail Mountable: NoStacking Capacity (Physical): NoStacking Capacity (Virtual): NoIPv4 Routing: YesIPv6 Routing: YesDHCP (Dynamic Host Configuration Protocol) Server Screening: YesRuggedized: NoOperating Temperature: -5 to 50 CUnit dimensions: 280 x 230 x 44 mmWarranty Licence: Limited Lifetime Warranty
RJ-45 Ports: 24
RJ-45 Speeds: 10/100/1000
Combo Ports (RJ-45 + SFP): 12 Mbps + 12 PoE Ports
SFP (Small Form-Factor Pluggable) Ports : 0
SFP Speeds: 0
PoE++ (60w) or higher available?: Yes
Number of PoE Ports: 12
Extended PoE?: No
Capacity in Millions of Packets per Second (mpps): 35.71 Mpps
Switching Capacity in Gigabits per Second (Gbps): 48 Gbps
Web-based GUI: Yes
Redundant Power Supply: No
19" Rack Mountable: Desktop or 19, rack mount (mounting brackets included)
DIN-Rail Mountable: No
Stacking Capacity (Physical): No
Stacking Capacity (Virtual): No
IPv4 Routing: Yes
IPv6 Routing: Yes
DHCP (Dynamic Host Configuration Protocol) Server Screening: Yes
Ruggedized: No
Operating Temperature: -5 to 50 C
Unit dimensions: 280 x 230 x 44 mm
Warranty Licence: Limited Lifetime Warranty
| Cloud Managed | No |
|---|---|
| Cooling | Passive |
| Form factor | Rack-mount |
| Licence Required | No |
| Main Port Type | Ethernet |
| Managed | Smart Managed |
| OSI Layer Capability | Layer 2 |
| PoE Budget | 100 |
| Port Count | 24 |
| Port Speed | 10/100/1000 |
| Redundant Power Supply | No |
| SFP Ports | 0 |
| Stackable | No |
| Standard Warranty | Limited Lifetime Warranty |
D-Link 24-Port Gigabit Smart Managed PoE Switch with 12 10/100/1000 Mbps and 12 PoE Ports
