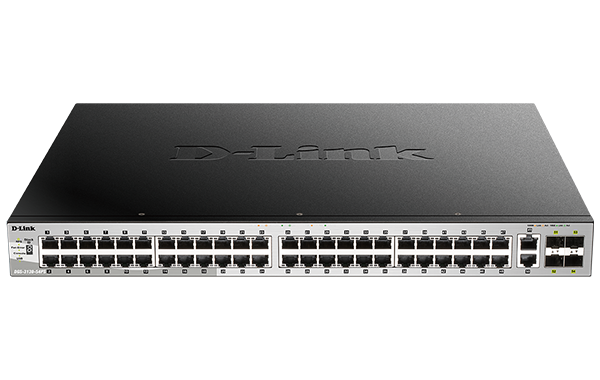

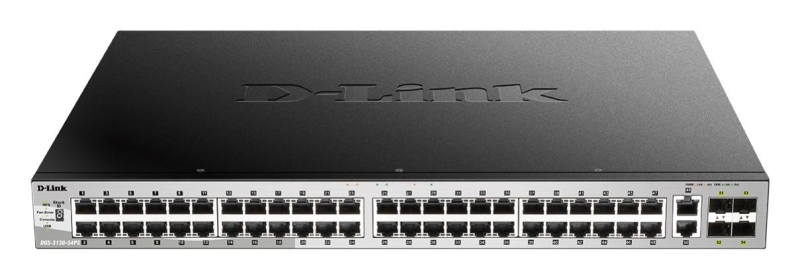

D-Link 54-Port Managed PoE Switch DGS-3130-54PS
SKU
374050
Brand
MPN
DGS-3130-54PS
Warranty
Standard Manufacturer's Warranty
$3,771.00
Buy Now And Earn 3771 Reward Points!
D-Link 54-Port Gigabit Managed PoE Switch with 48 PoE, 2 (10G) RJ45 and 4(10G) SFP+ Ports
The DGS-3130 Series is a range of Lite Layer 3 Stackable Managed Switches designed to connect end-users in a secure enterprise or metro Ethernet access network. These switches support both multicasting and enhanced security, making them an ideal Gigabit access layer solution. The DGS-3130 Series has models equipped with Gigabit Ethernet, Power over Ethernet (PoE) and SFP network connection options ranging from 24 to 48 ports. PoE models support 802.3af and 802.3at PoE standards with default power budgets of 370 watts and the potential to be expanded to 740 watts with the DPS-700 redundant power supply.
RJ-45 Ports: 50RJ-45 Speeds: 10/100/1000Combo Ports (RJ-45 + SFP): 48 PoE + 2 (10G) RJ45 + 4(10G) SFP+ PortsSFP (Small Form-Factor Pluggable) Ports : 4SFP Speeds: 10GPoE++ (60w) or higher available?: YesNumber of PoE Ports: 48Extended PoE?: NoCapacity in Millions of Packets per Second (mpps): 125 MppsSwitching Capacity in Gigabits per Second (Gbps): 168 GbpsWeb-based GUI: YesRedundant Power Supply: Yes19" Rack Mountable: Rack-mountDIN-Rail Mountable: NoStacking Capacity (Physical): YesStacking Capacity (Virtual): YesIPv4 Routing: YesIPv6 Routing: YesDHCP (Dynamic Host Configuration Protocol) Server Screening: YesRuggedized: NoOperating Temperature: 0 to 50 CUnit dimensions: 440 x 350 x 44 mmWarranty Licence: Limited Lifetime Warranty
RJ-45 Ports: 50
RJ-45 Speeds: 10/100/1000
Combo Ports (RJ-45 + SFP): 48 PoE + 2 (10G) RJ45 + 4(10G) SFP+ Ports
SFP (Small Form-Factor Pluggable) Ports : 4
SFP Speeds: 10G
PoE++ (60w) or higher available?: Yes
Number of PoE Ports: 48
Extended PoE?: No
Capacity in Millions of Packets per Second (mpps): 125 Mpps
Switching Capacity in Gigabits per Second (Gbps): 168 Gbps
Web-based GUI: Yes
Redundant Power Supply: Yes
19" Rack Mountable: Rack-mount
DIN-Rail Mountable: No
Stacking Capacity (Physical): Yes
Stacking Capacity (Virtual): Yes
IPv4 Routing: Yes
IPv6 Routing: Yes
DHCP (Dynamic Host Configuration Protocol) Server Screening: Yes
Ruggedized: No
Operating Temperature: 0 to 50 C
Unit dimensions: 440 x 350 x 44 mm
Warranty Licence: Limited Lifetime Warranty
The DGS-3130 Series is a range of Lite Layer 3 Stackable Managed Switches designed to connect end-users in a secure enterprise or metro Ethernet access network. These switches support both multicasting and enhanced security, making them an ideal Gigabit access layer solution. The DGS-3130 Series has models equipped with Gigabit Ethernet, Power over Ethernet (PoE) and SFP network connection options ranging from 24 to 48 ports. PoE models support 802.3af and 802.3at PoE standards with default power budgets of 370 watts and the potential to be expanded to 740 watts with the DPS-700 redundant power supply.
RJ-45 Ports: 50RJ-45 Speeds: 10/100/1000Combo Ports (RJ-45 + SFP): 48 PoE + 2 (10G) RJ45 + 4(10G) SFP+ PortsSFP (Small Form-Factor Pluggable) Ports : 4SFP Speeds: 10GPoE++ (60w) or higher available?: YesNumber of PoE Ports: 48Extended PoE?: NoCapacity in Millions of Packets per Second (mpps): 125 MppsSwitching Capacity in Gigabits per Second (Gbps): 168 GbpsWeb-based GUI: YesRedundant Power Supply: Yes19" Rack Mountable: Rack-mountDIN-Rail Mountable: NoStacking Capacity (Physical): YesStacking Capacity (Virtual): YesIPv4 Routing: YesIPv6 Routing: YesDHCP (Dynamic Host Configuration Protocol) Server Screening: YesRuggedized: NoOperating Temperature: 0 to 50 CUnit dimensions: 440 x 350 x 44 mmWarranty Licence: Limited Lifetime Warranty
RJ-45 Ports: 50
RJ-45 Speeds: 10/100/1000
Combo Ports (RJ-45 + SFP): 48 PoE + 2 (10G) RJ45 + 4(10G) SFP+ Ports
SFP (Small Form-Factor Pluggable) Ports : 4
SFP Speeds: 10G
PoE++ (60w) or higher available?: Yes
Number of PoE Ports: 48
Extended PoE?: No
Capacity in Millions of Packets per Second (mpps): 125 Mpps
Switching Capacity in Gigabits per Second (Gbps): 168 Gbps
Web-based GUI: Yes
Redundant Power Supply: Yes
19" Rack Mountable: Rack-mount
DIN-Rail Mountable: No
Stacking Capacity (Physical): Yes
Stacking Capacity (Virtual): Yes
IPv4 Routing: Yes
IPv6 Routing: Yes
DHCP (Dynamic Host Configuration Protocol) Server Screening: Yes
Ruggedized: No
Operating Temperature: 0 to 50 C
Unit dimensions: 440 x 350 x 44 mm
Warranty Licence: Limited Lifetime Warranty
| Cloud Managed | No |
|---|---|
| Cooling | Active |
| Form factor | Rack-mount |
| Licence Required | No |
| Main Port Type | Ethernet |
| Managed | Fully Managed |
| OSI Layer Capability | Layer 3 |
| PoE Budget | 370 |
| Port Count | 54 |
| Port Speed | 10/100/1000 |
| Redundant Power Supply | Yes |
| SFP Ports | 4 |
| Stackable | Both |
| Standard Warranty | Limited Lifetime Warranty |
D-Link 54-Port Gigabit Managed PoE Switch with 48 PoE, 2 (10G) RJ45 and 4(10G) SFP+ Ports
