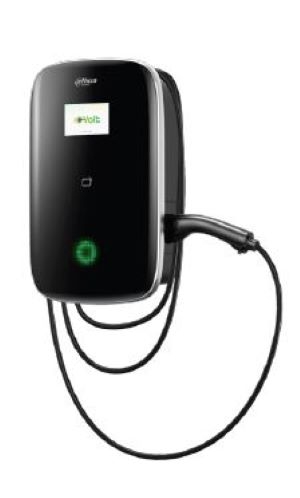

Dahua Intelligent D-Volt Pro 22kW Ev Charger [Dhi-Ics-A220E-B2D] DHI-ICS-A220E-B2D
SKU
429564
Brand
MPN
DHI-ICS-A220E-B2D
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $1,127.00 Regular Price $1,296.00
Buy Now And Earn 1127 Reward Points!
DAHUA Intelligent EV Charger [DHI-ICS-A220E-B2D]
Power supply: three phase, 380V, 3×32A max
Startup mode: RFID, APP, Plug&Play
Connection: WiFi & Bluretooth & Ethernet, 4G(Optional)
5m cable, type 2
TypeA+DC 6mA
LED Indicator
Communication protocol: OCPP 1.6J
MID meter
4.3 inch LCD Display"
3 Year Warranty
Power supply: three phase, 380V, 3×32A max
Startup mode: RFID, APP, Plug&Play
Connection: WiFi & Bluretooth & Ethernet, 4G(Optional)
5m cable, type 2
TypeA+DC 6mA
LED Indicator
Communication protocol: OCPP 1.6J
MID meter
4.3 inch LCD Display"
3 Year Warranty
| MPN | DHI-ICS-A220E-B2D |
|---|---|
| SKU | DHI-ICS-A220E-B2D |
| Brand | Dahua |
| Model | D-Volt Pro |
| Notes | Specifications consolidated from Dahua D-Volt Pro product documentation and regional listings. Designed for commercial EV charging; images and specifications may vary by variant. |
| Phase | 3-phase |
| Display | 4.3 inch LCD |
| Metering | Built-in MID-certified meter |
| Warranty | 3 year warranty |
| Indicators | LED indicator |
| Interfaces | RS485 ×2 CAN ×2 USB RJ-45 |
| Net Weight | 6.0 kg ± 0.5 kg |
| Description | Dahua D-Volt Pro 22 kW intelligent EV charger with a built-in MID meter, 4.3" LCD, and 5 m Type 2 tethered cable. Designed for commercial use, it supports Plug & Play, RFID and app-based start, OCPP 1.6J and Modbus TCP, and multiple network options (Ethernet, Wi‑Fi, Bluetooth; 4G optional). Provides comprehensive safety (30 mA Type A + 6 mA DC leakage protection, surge, over/under voltage, overcurrent, PEN support), IP55/IK10 protection (cable IP66), and is suitable for indoor or outdoor wall or pole mounting. 3-year warranty. |
| Rated Power | 22 kW |
| Cable Length | 5 m |
| Connectivity | Ethernet (RJ-45) Wi‑Fi Bluetooth 4G (optional) |
| Power Supply | 3-phase AC (reported as 380 V to 400 V; AC400 V ±15% 50/60 Hz listed) |
| Product Title | Dahua D-Volt Pro 22 kW Intelligent EV Charger (Type 2, 5 m tethered) |
| Package Weight | 12.0 kg ± 1.0 kg |
| Upgrade Method | USB upgrade and remote upgrade (via OCPP 1.6J) |
| Maximum Current | 3 × 32 A max |
| Nominal Voltage | 380–400 V AC |
| Operating Humidity | ≤95% RH, non‑condensing |
| Storage Temperature | −40 °C to +70 °C (−40 °F to +158 °F) |
| Protection - Leakage | 30 mA Type A RCD + 6 mA DC protection (EN 61008 / EN 62955) |
| Operating Temperature | −30 °C to +50 °C (−22 °F to +122 °F) |
| Accessories (Optional) | EV charger cable (variants for 7 kW / 11 kW / 22 kW) CT sensor (1‑phase / 3‑phase) RFID round card RFID square card Bracket |
| Installation / Mounting | Wall mount and vertical pole mount |
| Protection - Electrical | Surge protection Over temperature protection Over voltage protection Under voltage protection Over current protection Grounding protection Electrical leakage protection PEN protection (for British regions) |
| Charging Protocol / Mode | Mode 3 (EN/IEC 61851), OCPP 1.6J, ModBus TCP |
| Dimensions (H × W × D) | 443.0 mm × 273.0 mm × 171.5 mm (17.44" × 10.75" × 6.75") |
| Charging Port / Connector | IEC 62196 Type 2 (tethered cable, 5 m) |
| Startup / Control Methods | Plug & Play, RFID, Mobile APP |
| Certifications / Standards | CE CB EN IEC 61851-1 EN IEC 61851-21-2 EN 300328 EN 300330 EN 301489 series EN 62311 EN 50364 ETS EN 301511 ETS EN 301908 series IEC 62955 RoHS (2011/65/EU, 2015/863/EU) |
| Wire / Cable Specification | Wire cross-section: 3 × 6 mm² (1-phase) or 5 × 6 mm² (3-phase) (9 AWG) |
| Ingress / Impact Protection | IP55 (unit/socket), IP66 (cable), IK10 |
DAHUA Intelligent D-Volt Pro 22kW EV Charger [DHI-ICS-A220E-B2D]
