Highlights | Robust Design

High EMC endurance, fanless design and wider operating temperature range combined with an IP40 housing to withstand harsh operating environments.

Flexible Deployment

Small form factor design that supports DIN-Rail mounting, PoE, PoE+ and Long Reach PoE support to extend the deployment range of PoE-powered devices.

Plug-and-Play

Plug-and-play installation means the Switch can be quickly and easily installed without the need for any additional configuration.

DIS-F100G Series | Gigabit Industrial Unmanaged PoE+ Switches

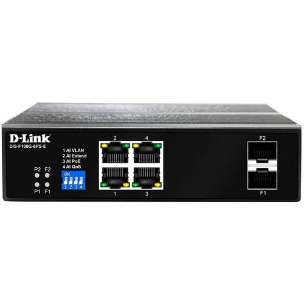

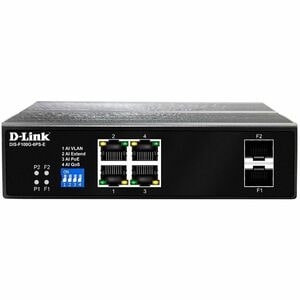

The DIS-F100G Series Gigabit Industrial Switches are equipped with 4 (DIS-F100G-6PS-E) and 8 (DIS-F100G-10PS-E) PoE+ capable 10/100/1000BASE-T ports and 2 SFP ports. These Switches feature a robust design making them ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments.

Durable and Reliable Design

The DIS-F100G Series Switches are housed in a highly resistant IP40-rated metal casing to protect them from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-F100 Series from unwanted effects when operating in environments with strong electromagnetic interference. Meanwhile, the fanless design extends the life of the DIS-F100G Series while also being able to operate in a wider temperature range of up to 75°C.

Additionally, the DIS-F100G Series features high-capacity 6 kV surge protection on all copper ports to help prevent damage to the Switch and connected devices caused by sudden power surges and lightning strikes. The built-in surge protection of up to 6 kV can mitigate the damage to the Switch from both indoor and outdoor devices and network connections by absorbing the excess energy while still letting through the amount of power required for the Switch to operate normally.

Furthermore the DIS-F100G Series offers PSE short circuit protection, PoE overload, power supply over temperature protection, over voltage protection, surge current protection and other protection features. This increases network reliability, reduces repair costs, and removes the need for replacement hardware in the event of an electrical surge or lightning strike.

High Redundancy and Reliability

The DIS-F100G Series offers dual power input allows for a redundant power supply to make sure the device continues to operate in the event of a primary power supply failure.

Advanced Features

The DIS-F100G Series is equipped with smart features which can be controlled with a switch of button:

AI VLAN - isolates RJ45 ports from each other, suppress network storms and improves network performance.

AI Extend - enables Long Reach PoE delivery up to 250m on PoE ports.

AI PoE - enables a watchdog which automatically restart a remote PoE device if it detects the remote device has locked up.

AI QoS - enables application prioritisation. Traffic with higher priority (e.g. Voice over IP) is forwarded ahead of the queue.

Power over Ethernet Support

The DIS-F100G-10PS-E and DIS-F100G-6PS-E are PoE-ready Switches with total PoE budgets of 240 W and 120 W.

The DIS-F100G Series Switches comply with IEEE 802.3af (PoE) and 802.3at (PoE+) standards and provide up to 30 watts per port.
