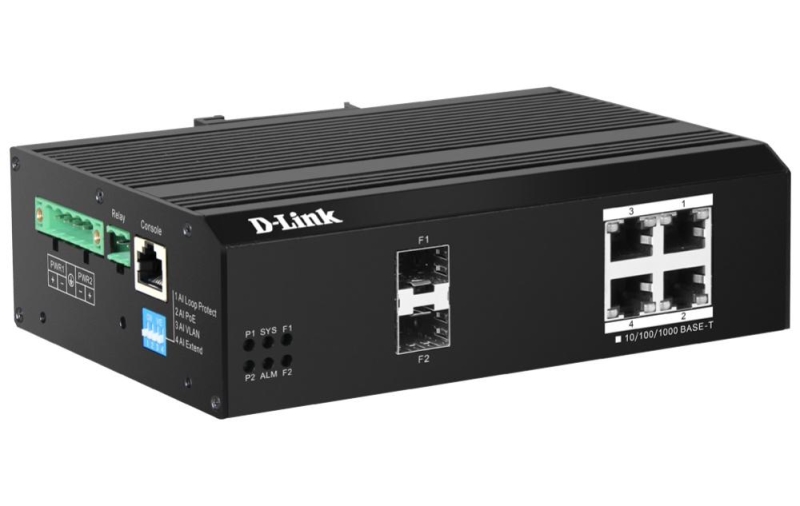

D-Link 6-Port Smart Managed PoE+ Switch DIS-F200G-6PS-E
SKU
410792
Brand
MPN
DIS-F200G-6PS-E
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$475.00
Buy Now And Earn 475 Reward Points!
D-Link DIS-F200G, 6-Port Gigabit Industrial Smart Managed PoE+ Switch with 4 BASE-T PoE+, 2 SFP and 1 RJ-45 Console Port
The DIS-F200G Series Gigabit Industrial Smart Managed PoE+ Switches are equipped with 4 (DIS-F200G-6PS-E) and 8 (DIS-F200G-10PS-E) PoE+ capable 10/100/1000BASE-T ports and 2 SFP ports. These Switches feature a robust design making them ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments. The DIS-F200G Series furthermore integrate advanced management and security functions to provide a complete industrial networking solution.
RJ-45 Ports:4RJ-45 Speeds: 1GbpsCombo Ports (RJ-45 + SFP): 4 BASE-T PoE+, 2 SFP and 1 RJ-45 Console PortSFP (Small Form-Factor Pluggable) Ports : 2SFP Speeds: 1GPoE++ (60w) or higher available?: YesNumber of PoE Ports: 4Extended PoE?: NoCapacity in Millions of Packets per Second (mpps): Maximum Forwarding Rate: 8.9Switching Capacity in Gigabits per Second (Gbps): 12Web-based GUI: NoRedundant Power Supply: Yes19" Rack Mountable: NoDIN-Rail Mountable: YesStacking Capacity (Physical): NoStacking Capacity (Virtual): NoIPv4 Routing: NoIPv6 Routing: NoDHCP (Dynamic Host Configuration Protocol) Server Screening: NoRuggedized: YesOperating Temperature: -40 to 75 CUnit dimensions: 159 x 105 x 39 mmWarranty Licence: NA
RJ-45 Ports:4
RJ-45 Speeds: 1Gbps
Combo Ports (RJ-45 + SFP): 4 BASE-T PoE+, 2 SFP and 1 RJ-45 Console Port
SFP (Small Form-Factor Pluggable) Ports : 2
SFP Speeds: 1G
PoE++ (60w) or higher available?: Yes
Number of PoE Ports: 4
Extended PoE?: No
Capacity in Millions of Packets per Second (mpps): Maximum Forwarding Rate: 8.9
Switching Capacity in Gigabits per Second (Gbps): 12
Web-based GUI: No
Redundant Power Supply: Yes
19" Rack Mountable: No
DIN-Rail Mountable: Yes
Stacking Capacity (Physical): No
Stacking Capacity (Virtual): No
IPv4 Routing: No
IPv6 Routing: No
DHCP (Dynamic Host Configuration Protocol) Server Screening: No
Ruggedized: Yes
Operating Temperature: -40 to 75 C
Unit dimensions: 159 x 105 x 39 mm
Warranty Licence: NA
The DIS-F200G Series Gigabit Industrial Smart Managed PoE+ Switches are equipped with 4 (DIS-F200G-6PS-E) and 8 (DIS-F200G-10PS-E) PoE+ capable 10/100/1000BASE-T ports and 2 SFP ports. These Switches feature a robust design making them ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments. The DIS-F200G Series furthermore integrate advanced management and security functions to provide a complete industrial networking solution.
RJ-45 Ports:4RJ-45 Speeds: 1GbpsCombo Ports (RJ-45 + SFP): 4 BASE-T PoE+, 2 SFP and 1 RJ-45 Console PortSFP (Small Form-Factor Pluggable) Ports : 2SFP Speeds: 1GPoE++ (60w) or higher available?: YesNumber of PoE Ports: 4Extended PoE?: NoCapacity in Millions of Packets per Second (mpps): Maximum Forwarding Rate: 8.9Switching Capacity in Gigabits per Second (Gbps): 12Web-based GUI: NoRedundant Power Supply: Yes19" Rack Mountable: NoDIN-Rail Mountable: YesStacking Capacity (Physical): NoStacking Capacity (Virtual): NoIPv4 Routing: NoIPv6 Routing: NoDHCP (Dynamic Host Configuration Protocol) Server Screening: NoRuggedized: YesOperating Temperature: -40 to 75 CUnit dimensions: 159 x 105 x 39 mmWarranty Licence: NA
RJ-45 Ports:4
RJ-45 Speeds: 1Gbps
Combo Ports (RJ-45 + SFP): 4 BASE-T PoE+, 2 SFP and 1 RJ-45 Console Port
SFP (Small Form-Factor Pluggable) Ports : 2
SFP Speeds: 1G
PoE++ (60w) or higher available?: Yes
Number of PoE Ports: 4
Extended PoE?: No
Capacity in Millions of Packets per Second (mpps): Maximum Forwarding Rate: 8.9
Switching Capacity in Gigabits per Second (Gbps): 12
Web-based GUI: No
Redundant Power Supply: Yes
19" Rack Mountable: No
DIN-Rail Mountable: Yes
Stacking Capacity (Physical): No
Stacking Capacity (Virtual): No
IPv4 Routing: No
IPv6 Routing: No
DHCP (Dynamic Host Configuration Protocol) Server Screening: No
Ruggedized: Yes
Operating Temperature: -40 to 75 C
Unit dimensions: 159 x 105 x 39 mm
Warranty Licence: NA
| Cloud Managed | No |
|---|---|
| Cooling | Passive |
| Form factor | DIN-Rail |
| Licence Required | No |
| Main Port Type | Ethernet |
| Managed | Smart Managed |
| OSI Layer Capability | Layer 2 |
| PoE Budget | 120 |
| Port Count | 6 |
| Port Speed | 10/100/1000 |
| Redundant Power Supply | Yes |
| SFP Ports | 2 |
| Stackable | No |
| Standard Warranty | NA |
D-Link DIS-F200G, 6-Port Gigabit Industrial Smart Managed PoE+ Switch with 4 BASE-T PoE+, 2 SFP and 1 RJ-45 Console Port
