StarTech.com DKT31CH2CPD3 USB 3.2 (Gen 2) Type C Docking Station for Notebook/Workstation - 100 W - Space Gray - Portable - 1 Displays Supported - 4K - 3840 x 2160 - USB Type-A - 2 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - DKT

SKU
391061
Brand
MPN
DKT31CH2CPD3
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$90.00
Buy Now And Earn 90 Reward Points!

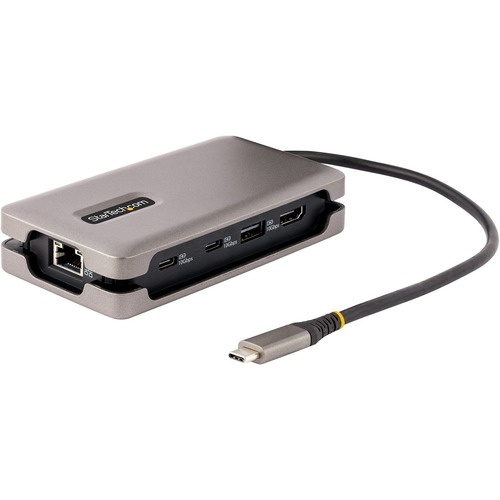

StarTech.com DKT31CH2CPD3 USB 3.2 (Gen 2) Type C Docking Station for Notebook/Workstation - 100 W - Space Gray - Portable - 1 Displays Supported - 4K - 3840 x 2160 - USB Type-A - 2 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 1 x HDMI Ports - HDMI - DisplayPort - Thunderbolt - Wired - Gigabit Ethernet - Windows, macOS, Chrome OS, Linux, Android, iOS, iPadOS

This USB-C multiport adapter with DP 1.4 supports 4K 60Hz HDMI® (HDR) and turns a USB-C™ laptop or tablet into a workstation, anywhere you go.

Enhance Productivity

The portable docking station provides 4K 60Hz HDMI video output, two USB 3.2 Gen 2 Type-C (10Gbps) ports, one USB 3.2 Gen 2 Type-A (10Gbps) port, and a Gigabit Ethernet port (PXE and WoL support) all through one connection to your laptop's USB-C or Thunderbolt 3/4™ port. A USB-C DisplayPort 1.4 Alt-Mode port is required for 4K 60Hz HDMI output.

Host Connection Maximum Resolution DP 1.4 Alternate Mode Up to 4K 60Hz DP 1.2 Alternate Mode Up to 4K 30Hz

Connect and Charge Your USB Devices

The USB hub features two USB-C (10Gbps) ports and one USB-A (10Gbps) port for connecting up to three USB peripherals. The USB PD pass-through port enables charging of the host laptop. USB PD is only available when a USB-C power adapter is connected to the PD pass-through port. Connect a USB-C Power Adapter to use as a standalone USB peripheral charger. The extra-long attached 12inch (30cm) USB-C host cable enables an extended reach for setup flexibility.

Portable Connectivity

For use while travelling, the USB-C adapter can operate bus-powered alone, or with a USB-C power adapter to enable laptop and peripheral charging. The docking station is lightweight and features a built-in wraparound USB-C host cable.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

  • Advanced Windows Layout Utility: Setup and save custom windows layouts.
  • Mac Address Pass-Through Utility: To improve network security.
  • USB Event Monitoring Utility: To track and log connected USB devices
  • Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.

Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Maximum Power Supply Wattage 100 W
Miscellaneous
Compatibility

Mini dock is Compatible with USB-C laptops, Ultrabooks, Chromebooks, USB4 and Thunderbolt 3/4 laptops from HP, Dell, Lenovo, MacBooks (Intel & M1 Pro/Max processors) and Surface - Works w/ Windows, macOS, iPadOS, Android, Linux & Chrome OS

Brand Compatibility Apple
Lenovo
HP
Dell
Physical Characteristics
Weight (Approximate) 93.6 g
Form Factor Portable
Height 25.4 mm
Width 63.5 mm
Product Color Space Gray
Interfaces/Ports
Host Interface USB 3.2 (Gen 2) Type C
HDMI Yes
HDMI Version 2.0b
Number of HDMI Ports 1
Network (RJ-45) Yes
DisplayPort Yes
Thunderbolt Yes
Number of RJ-45 Ports 1
USB Type-C Yes
USB Type-C Detail USB Type-C (24 pin) USB Power Delivery Only
DisplayPort Version 1.4
Number of USB Type-C Ports 2
Number of USB 3.2 Gen 2 Type-A Ports 1
USB Type-A Yes
Technical Information
Device Supported Notebook/Workstation
Connectivity Technology Wired
Number of Displays Supported 1
Supported Resolutions 3840 x 2160
Screen Mode Supported 4K
Software
Operating System Supported iPadOS
Chrome OS
macOS
Windows
Linux
Android
iOS
General Information
Product Type Docking Station
Manufacturer Part Number DKT31CH2CPD3
Manufacturer Website Address http://www.startech.com/au
Packaged Quantity 1
Manufacturer StarTech.com
Product Model DKT31CH2CPD3
Product Name DKT31CH2CPD3 Docking Station
Brand Name StarTech.com
