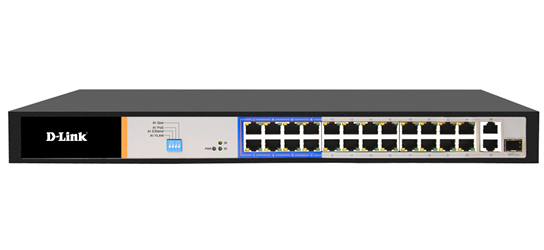

D-Link | DES-F1026P-E | 26 Port PoE Switch with 24 PoE Ports (8 Long Reach 250m) and 2 Gigabit Uplink Ports

The D-Link DES-F1026P-E 26 Port Switch with 24 10/100Mbps and 2 Gigabit Ports with 1 Combo SFP port enables you to connect Power over Ethernet (PoE) devices such as wireless access points (APs), IP cameras, and IP phones to the network. The DES-F1026P-E can also connect other network devices like computers, printers and Network Attached Storage (NAS) to fit into any type of network application. The Combo SFP/RJ45 port gives you the flexibility of using this uplink port either with copper or fibre optic cable.

Power Over Ethernet

DES-F1026P-E features twenty-four 10/100BASE-T ports that support the IEEE802.3af and IEEE802.3at PoE protocols, supplying up to 30 W on each PoE port providing a total power budget of 250W. You can connect compatible devices to the DES-F1026P-E without using an additional power supply. This allows you to save on cabling and to install devices in locations without immediate access to power outlets.

High Performance

The DES-F1026P-E features plug-and-play installation and requires no configuration. Auto MDI/MDI-X support on all ports removes the need for crossover cables when connecting to another switch or hub, and auto-negotiation on each port intelligently adjusts the port speed for compatibility with the connected device. With wire-speed filtering and store-and-forward switching, the DES-F1026P-E maximises network performance while minimising the transmission of bad network packets.

With two Gigabit uplink ports the businesses can increase their network bandwidth using the speed of Gigabit ethernet.

Function

TheDES-F1026P-E 26-Port switch with 24 PoE ports, 6KV protected Extend - support up to 250m distance power supply

VLAN - Isolating ports 1-24 from each other can effectively suppress network storms and improve network performance

QoS - Prioritise the identified video data to make video transmission smoother

PoE - Automatic detection power of port, power off and restart

Expand and Upgrade Your Network

The DES-F1026P-E offers an economical way for SOHO and small to medium businesses (SMB) to benefit from high-speed PoE networking. It provides twenty-four PoE ports and 2 Gigabit uplink ports with 1 Combo SFP for easy expansion of your network and supply power up to 250m* to your PoE devices. DES-F1026P-E, Ports 1 - 8 can supply power (802.3 af/at) up to 250m distances at 10Mbps, it is a cost-effective solution for your SMB network. Unmanaged switch with rich function (Extend, VLAN, QoS and PoE) provides a reliable connection to your company infrastructure.

FEATURES
24 x 10/100 Mbps Fast Ethernet PoE+ Ports
2 x Gigabit Uplink Ports with 1 Combo SFP
PoE+ support - up to 30W per port
8x Long Reach PoE ports - up to 250m
Smart Features: Extend, VLAN, QoS and PoE Reset
Lightning protection built-in (6kV)
PoE Budget 250 Watts
Plug & Play Installation
SPECIFICATIONS
Port Type: Fast Ethernet
Number of Ports: 16 -24
PoE Type Required: PoE|250m Long Reach PoE
Design: Rackmountable|Metals
Ethernet Speed: 10/100
LAN Ports: 26
PoE Ports: 24 Ports
Housing: Metal
Power Supply: Internal
Rackmountable: Yes
Quick, Simple Plug-and-Play Installation: Yes
Dimensions: 440 x 180 x 44 mm
Product Series: Long Reach PoE Switches
WARRANTY

3-Years Limited Warranty
