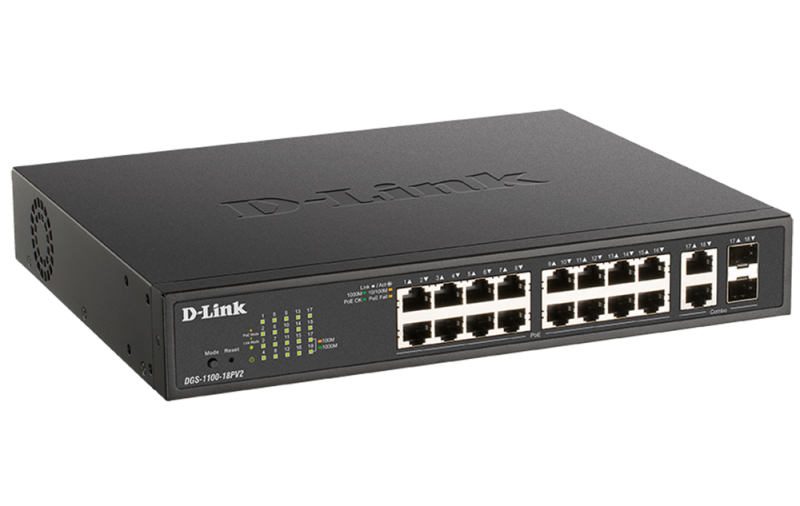

D-Link | DGS-1100-18PV2 | 18 Port Gigabit Smart Managed PoE Switch with 16 PoE and 2 Combo RJ45/SFP Ports (130W PoE budget)

The DGS-1100V2 Series is a range of switches designed to meet the requirements of small, medium, and enterprise businesses. Support for multiple PoE standards make the DGS-1100V2 Series ideal for IP surveillance deployments. Advanced management features, a range of diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to meet your networking requirements.

FEATURES
16 x 10/100/1000BASE-T PoE+ ports
2x RJ45/SFP Combo ports
PoE+ support with up to 30W per port
130 Watts PoE Power Budget
Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
Innovative energy saving features are good for your budget, as well as the environment
Get up and going quickly with streamlined first-time setup and ongoing management
D-Link Green/Power Saving Performance

Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE), the DGS-1100V2 Series consumes less energy by cutting down on power consumption when port utilization is low. By deploying compatible devices, users can cut operating costs and even cut down on additional cooling equipment, helping small and medium-sized businesses stay within their budgets. The DGS-1100V2 Series also features D-Link Green technology that helps save energy automatically. The switches monitor the link status of every port and significantly reduce power consumption of the interface when there is no link or network traffic detected.

Easy to Deploy

The DGS-1100V2 Series supports an intuitive client-based utility (D-Link Network Assistant) and a web-based management interface. The client-based D-Link Network Assistant (DNA) discovers all D-Link Smart Managed Switches within the same Layer 2 network segment, making the initial setup quick and easy. This allows extensive switch configuration and basic administration of discovered devices, including password changes and firmware upgrades. The web-based interface provides a user-friendly way for network administrators to manage the switch down to the port level. The interface can be accessed from a web browser, allowing the switches to be controlled from any PC that is connected to the network.

SPECIFICATIONS
Switch Type: Layer 2
Type of Port Required: Gigabit Copper|Gigabit Fibre
Number of Ports: 18
PoE Type Required: PoE|PoE+
High Speed Stacking: No
Design: Desktop|Rackmountable
1000Base-T Ports: 16 Ports
SFP Ports: 2 Ports (Combo)
PoE Ports: 16 Ports
PoE Budget: 130 Watts
Switching Capacity: 36 Gbps
QoS: Yes
Spanning Tree Protocol: Yes
Link Aggregation: Yes
VLAN: 4K Groups
Surveillance VLAN: Yes
Jumbo Frame: 9216 bytes
Voice VLAN: Yes
IGMP Snooping: Yes
Cable Diagnostics: Yes
Energy Saving Technology: EEE Compliant|RoHS 6 Compliant
19" Rack Mountable: Yes
Fans: 1
Built-in PSU: Yes
Dimensions: 280 x 230 x 44 mm
Web-based GUI: Yes
Command Line Interface: No
Types of Ports: SFP Ports|Gigabit Ports
Static Routing: No
Switch Series: DGS-1100 Series
WARRANTY

3-Years Limited Warranty
