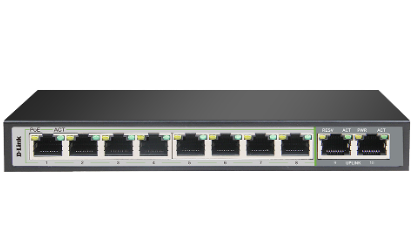

D-Link | DGS-F1010P-E | 10 Port Gigabit PoE Switch with 8 Long Reach PoE Ports and 2 Uplink Ports

The D-Link DGS-F1010P-E is a reliable 10-Port Gigabit PoE Switch engineered to elevate your network connectivity. With eight Gigabit PoE+ ports and two Gigabit Uplink ports, this switch offers the perfect balance of power and speed to enhance your network infrastructure. Designed for both home users and small businesses, its compact, silent operation ensures it's an ideal fit for any room or office environment.

Power over Ethernet

DGS-F1010P-E features eight 10/100/1000 BASE-T ports that support the IEEE 802.3af and IEEE 802.3at PoE protocols, supplying up to 30 W on each PoE port up to 250m and providing a total power budget of 96 W. You can connect compatible devices to the DGSF1010P-E without using an additional power supply. This allows you to save on cabling and to install devices in locations without immediate access to power outlets.

High Performance

The DGS-F1010P-E features plug-and-play installation and requires no configurations. Auto MDI/MDI-X support on all ports removes the need for crossover cables when connecting to another switch or hub, and auto-negotiation on each port intelligently adjusts the port speed for compatibility with the connected device. With wire-speed filtering and store-andforward switching, the DGS-F1010-E maximizes network performance while minimizing the transmission of bad network packets.

Function

The DGS-F1010P-E, 6KV protected, is equipped with smart features with a switch of a button such as:

Extend - support up to 250m distance power supply

VLAN - Isolating ports 1-8 from each other can effectively suppress network storms and improve network performance

QoS - Prioritise the identified video data to make video transmission smoother

PoE - Automatic detection power of port, power off and restart

Compact and Silent

The compact design of the DGS-F1010P-E allows placement in most locations, including those where space is at a premium. The desktop form factor provides everything you need to set up a new network or expand an existing network, while the fanless design ensures silent operation even in noise-sensitive areas such as workstations and meeting rooms.

FEATURES
8 x Gigabit PoE+ Ports
2 x Gigabit Uplink Ports
PoE+ support - up to 30W per port
Long Reach PoE support - up to 250m
Smart Features: Extend, VLAN, QoS and PoE Reset
Lightning protection built-in (6kV)
PoE Budget 96 Watts
Plug & Play Installation
SPECIFICATIONS
Port Type: Gigabit
Number of Ports: 5 - 8
PoE Type Required: PoE|250m Long Reach PoE
Design: Metal|Fanless
Ethernet Speed: Gigabit
LAN Ports: 10
PoE Ports: 8 Ports
Housing: Metal
Power Supply: External
Fanless Design for Silent Operation: Yes
Compact Design for Home and Office Use: Yes
Quick, Simple Plug-and-Play Installation: Yes
Dimensions: 184 x 75 x 27 mm
Product Series: Long Reach PoE Switches
WARRANTY

3-Years Limited Warranty
