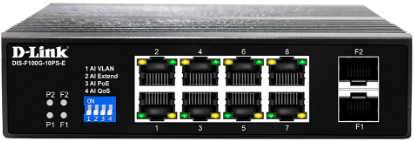

D-Link | DIS-F100G-10PS-E | 10 Port Gigabit Industrial PoE+ Switch with 8 PoE Ports and 2 SFP Ports ** PSU NDR-480-48 Not Included **

The DIS-F100G Series Gigabit Industrial Unmanaged Switches are equipped with a variety of port combinations including 10/100/1000BASE-T PoE+ ports and SFP ports. These switches feature a robust design making them ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments. In addition, the DIS-F100G Series are Plug-and-Play, allowing for effortless and swift deployment.

Durable, Reliable and Efficient

The DIS-F100G Series switches are housed in a highly resistant IP40-rated metal casing to protect the switches from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-F100G Series from unwanted effects when operating in environments with strong electromagnetic interference. Meanwhile, the fanless design extends the life of the DIS-F100G Series while also being able to operate in a wide temperature range from -40 °C up to 75 °C. For increased flexibility, the DIS-F100G Series can also be mounted on a DIN rail. In addition, the DIS-F100G Series supports dual power input which allows for a redundant power supply configuration to make sure the switches continue to operate in the event of a primary power supply failure.

Power over Ethernet Support

The PoE-ready DIS-F100G-10PS-E features a total PoE budget of 240 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices leveraging existing conventional Ethernet cabling. Additionally, the PoE ports in each switch offer Long Reach PoE technology, allowing the use of longer network cable runs which are normally limited to 100m. The Long Reach PoE technology supports cables up to 250m long. This effectively cuts down deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE-devices to be installed in remote locations.

FEATURES
8 1000BASE-T PoE+ ports and 2 SFP ports
Long Reach PoE support - up to 250m
PoE budget is 240 Watts
Robust and High-Redundancy Design
DIN Rail mountable
Fanless, passive cooling design
High EMC endurance
6 kV surge protection on copper ports
Dual power input for redundant power supplies
SPECIFICATIONS
PoE Budget: 240 Watts
Switching Capacity: 20Gbps
DIN Rail Mountable: Yes
Fans: Fanless
Metal Housing: Yes
MAC Address Table Size: 8K
Management Options: Unmanaged
PoE Type Required: PoE+
PoE Ports: 8
PoE+ (802.3at) Supported: Yes
Power Input: 48 to 56V DC terminal block dual input
SFP Ports: 2
Operating Temperature: From -40° to 75°C
1000BASE-T Ports: 8
Switch Series: DIS Industrial Series
Surge Protection: 6 kV Surge Protection
ACCESSORIES (Not Included)
Power Supply Unit (REQUIRED):
NDR-480-48 | 48v DIN Rail Power Supply 10A 480W
WARRANTY

1-Year Limited Warranty
