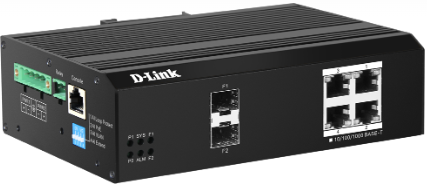

D-Link | DIS-F200G-6PS-E | 6 Port Gigabit Industrial Smart Managed PoE+ Switch with 4 PoE Ports and 2 SFP Ports ** PSU NDR-240-48 Not Included **

The DIS-F200G Series Gigabit Industrial Smart Managed PoE+ Switches are equipped with 4 (DIS-F200G-6PS-E) and 8 (DIS-F200G-10PS-E) PoE+ capable 10/100/1000BASE-T ports and 2 SFP ports. These Switches feature a robust design making them ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments. The DIS-F200G Series furthermore integrate advanced management and security functions to provide a complete industrial networking solution.

Durable and Reliable Design

The DIS-F200G Series switches are housed in a highly resistant metal casing to protect the switches from harsh environments. The high electromagnetic compatibility (EMC) protects the DIS-F200G Series from unwanted electromagnetic interference. Meanwhile, the fanless design extends the life of DIS-F200G Series while also being able to operate in a wider temperature range of up to 75°C.

For increased flexibility, the DIS-F200G Series can also be mounted on a DIN rail. Additionally, the DIS-F200G Series features 6 kV surge protection to help prevent damage to the switch and connected devices caused by sudden power surges and lightning strikes.

High Redundancy and Reliability

The DIS-F200G Series supports RUN-Ring quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the network continues to operate in the event of a primary power supply failure.

Traffic Optimization

The DIS-F200G Series supports QoS and Auto Voice VLAN features. This automatically detects surveillance devices and puts them into a dedicated voice VLAN, segmenting their traffic from the rest of the network. This provides the traffic a higher priority through the switch, reducing the chances of voice traffic being delayed.

Easy Troubleshooting

The DIS-F200G Series features network loop detection and cable diagnostics to help network administrators find and solve network problems quickly and easily. Loop detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.

Power over Ethernet Support

The DIS-F200G-6PS-E is a PoE-ready switch with a total PoE budget of 120 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices. Additionally, the PoE ports in each switch offer Long Reach PoE technology, allowing the use of longer network cable runs which are normally limited to 100m. The Long Reach PoE technology supports cables up to 250m long. This effectively reduces deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE-devices to be installed in remote locations.

FEATURES
4 1000BASE-T PoE+ ports and 2 SFP ports
Long Reach PoE support - up to 250m
PoE budget is 120 Watts
Robust and High-Redundancy Design
DIN Rail mountable
Fanless, passive cooling design
High EMC endurance
6 kV surge protection on copper ports
Dual power input for redundant power supplies
Advanced networking features
RUN-Ring Technology with <10ms self-healing
SPECIFICATIONS
PoE Budget: 120 Watts
Switching Capacity: 12Gbps
DIN Rail Mountable: Yes
Fans: Fanless
Metal Housing: Yes
MAC Address Table Size: 8K
Management Options: Smart Managed
PoE Type Required: PoE+
PoE Ports: 4
PoE+ (802.3at) Supported: Yes
Power Input: 48 to 56V DC terminal block dual input
SFP Ports: 2
Operating Temperature: From -40° to 75°C
1000BASE-T Ports: 4
Switch Series: DIS Industrial Series
Surge Protection: 6 kV Surge Protection
ACCESSORIES (Not Included)
Power Supply Unit (REQUIRED):
NDR-240-48 | 48v DIN Rail Power Supply 5A 240W
WARRANTY

1-Year Limited Warranty
