Targus DOCK430AUZ Usb-c Displayport Alt Mode Dock 85w Power DOCK430AUZ
SKU
399997
Brand
MPN
DOCK430AUZ
Warranty
Standard Manufacturer's Warranty
$213.00
Buy Now And Earn 213 Reward Points!

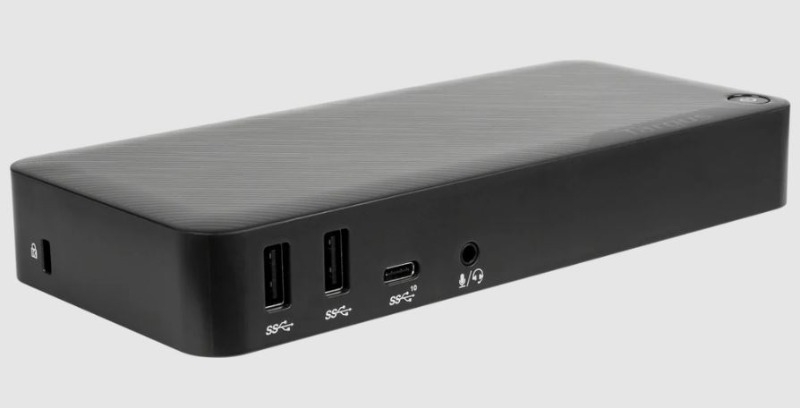

Targus DOCK430AUZ USB-C Displayport Alt Mode Dock 85w Power
| MPN | DOCK430AUZ |
|---|---|
| Brand | Targus |
| Color | Gray/Grey |
| Model | DOCK430AUZ |
| Ports | Audio: 1 x 3.5mm combo audio (in/out) Other: Integrated lock slot (Kensington T-bar compatible) USB-A: 4 x USB-A 3.2 Gen1 (one port supports fast charging) Ethernet: 1 x Gigabit Ethernet (RJ-45) USB-C (host/data): 1 x USB-C 3.2 Gen2 (10Gbps, DP Alt Mode) |
| Weight | 1.16 kg |
| Category | Connectivity Devices |
| GTIN/UPC | 092636338893 |
| Security | Lock Slot: Integrated lock slot Lock Compatibility: Kensington® T-bar™ (per vendor) |
| Warranty | Manufacturer warranty varies by source (listed as 3 years or 5 years in vendor materials) |
| Dimensions | Depth: 8.25 cm Notes: Dimensions reported as 18.03 x 8.25 x 2.79 cm Width: 18.03 cm Height: 2.79 cm |
| Description | The Targus DOCK430AUZ is a USB-C DisplayPort Alt Mode docking station that creates a full workstation with native multi-monitor support and up to 85W power delivery to the host. It provides two DisplayPort 1.4 and one HDMI 2.0 video outputs (single 4K@60, dual 2560x1440@60 or triple 1080p@60), a USB-C 3.2 Gen2 host/data port (10Gbps, DP Alt Mode), four USB-A 3.2 Gen1 ports (one fast-charging), Gigabit Ethernet (RJ-45), and a 3.5mm combo audio port. The unit includes an external AC adapter (135W), offers an integrated lock slot (Kensington T-bar compatibility) and VESA mounting provision (compatible with Targus ACX003GLZ bracket), and works with a wide range of USB-C Alt Mode and Thunderbolt hosts including PCs, Macs, Chromebooks and Android devices. |
| Model Number | DOCK430AUZ |
| Part Numbers | DOCK430AUZ NBDTAR430 |
| Sub-Category | USB and Lightining Connectivity |
| Compatibility | PCs Macs Chromebooks Android devices |
| Product Title | Targus DOCK430AUZ USB-C Multi-Function Triple-Video Docking Station with 85W Power Delivery |
| TAA Compliant | No (per vendor information) |
| VESA Mounting | VESA Provision: true Compatible Bracket: Targus VESA Mounting Bracket ACX003GLZ (sold separately) |
| Video Outputs | HDMI: 1 x HDMI 2.0 Notes: Supports a mix of DP and HDMI; native (uncompressed) video via Alt Mode DisplayPort: 2 x DisplayPort 1.4 Supported Configurations: [ "Single display: up to 3840 x 2160 @60Hz", "Dual displays: up to 2560 x 1440 @60Hz", "Triple displays: up to 1920 x 1080 @60Hz" ] |
| Power Delivery | AC Adapter: 135W AC adapter (external) included (20V, 6.75A, part #800-0485-001A noted in vendor materials) Max Host Power: 85W Output Voltages: [ "5V", "9V", "12V", "15V", "20V" ] |
| Included Accessories | Docking station User Guide (part #410-3897-001A) USB C/M (screwed) to C/M cable, Black; 1M, 5A, 10Gbps (part #ACC1121GLX) Input US AC cable cord set, 3-pin, 1.8M, C5 connector (part #511-0518-001A) AC to DC adapter, output: 20V, 6.75A, 135W (part #800-0485-001A) |
| Connection Technology | DisplayPort Alt Mode (USB-C) |
| Host Port Compatibility | USB-C (Alt Mode); compatible with Thunderbolt hosts (per vendor) |
| Regulatory/Compliance Notes | Regional warranty and compliance details vary by vendor/region |
| Enterprise Software Suite (vendor features) | Notes: Vendor-supplied Targus Enterprise Software Suite available (features listed by manufacturer) Features: [ "Wi‑Fi Auto Switch (disables Wi‑Fi when Ethernet active)", "MAC Address Cloning", "Ghost Device Removal", "Targus A/V Configuration Utility (restores audio and window positions when reconnecting)" ] |
Targus DOCK430AUZ USB-C Displayport Alt Mode Dock 85w Power
