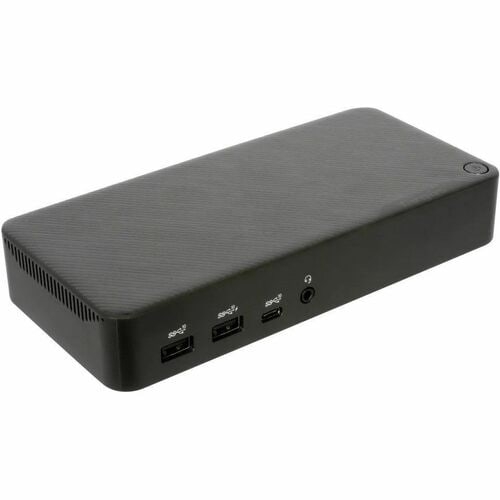

Targus USB4 Triple Video Docking Station with 100W Power DOCK460AUZ

SKU
427892
Brand
MPN
DOCK460AUZ
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $398.00 Regular Price $458.00
Buy Now And Earn 398 Reward Points!

Harness the power of USB4 (and Thunderbolt™) speeds, in a triple video enterprise-grade dock. This Alternate Mode dock packs all of the ports and power you need and is designed to support and power a wide variety of laptop brands and operating systems - up to 100W.

With its integrated USB4 connector, this alternate mode dock can connect to any USB4, Thunderbolt 4 and 3, or and USB-C-enabled host. With its one HDMI port and two DisplayPort™ ports, you can enjoy video performance up to 8K for single display or 8K for dual or 4K for triple displays. Plus, connect all of your favorite accessories with a combination of USB-A (2 USB 3.2 Gen 2 ports; 1 USB 3.2 Gen 2 port), USB-C (1x 3.2 Gen 2), Ethernet and audio ports.

Designed for the modern workstation, the dock comes equipped with a VESA bracket mounting provision, which allows for use of the Targus VESA® Mount Bracket (ACX003GLZ - sold separately) to hold your dock behind your display for even greater space savings.

Triple Video Support

Access the latest display technology with two DisplayPort™ ports and one HDMI port that creates a rich, high-definition viewing experience. The USB4 Triple Video Docking Station with 100W Power supports 8K resolution in single display and resolutions of up to 8K with two or 4K for three monitors.

Fast Data Transfer Speeds with USB4

Enjoy the high transfer speeds of USB4 technology. With transfer speeds up to 40Gbps, you can transfer high-capacity files in seconds.

2.5G Ethernet Speeds

Whether you're working, gaming, or streaming, enjoy the ability to support elevated network speeds of 2.5G - that's 2.5 times faster than the common 1 Gigabit Ethernet port.

Ultimate Compatibility

Don't have a USB4 host device? No problem. This USB4 dock also works with Thunderbolt 3, Thunderbolt 4, and USB-C devices.

  • Supports up to single 8K @60Hz, dual 8K@30Hz, or triple 4K@60Hz monitors with a USB4 host via one HDMI 2.1 and two DisplayPort™ 1.4 ports
  • Power Delivery 3.0 up to 100W for USB-C® hosts
  • 1x USB 3.2 Gen 2 Type-C port (10Gbps and powered to 7.5W)
  • 2x USB 3.2 Gen 2 Type-A ports (10Gbps), 1 fast charging
  • 2x USB 3.2 Gen 1 Type-A ports (5Gbps)
  • 2.5G Ethernet port
  • 1x 3.5mm combo Audio In/Out port for mics, speakers, and headphones
  • Integrated lock slot accommodates standard security locks to safeguard equipment
  • 1m screw-in USB4 host connector supports 40Gbps USB4 and is Thunderbolt™ 4 and 3 compatible
  • Compatible with Targus VESA® Mounting Bracket (ACX003GLZ, sold separately)
  • Works with Windows®, macOS®, Android™, Chrome OS™, and Ubuntu®
  • USB-C DP Alt Mode:
  • Single video up to 8K/30Hz, dual video up to 4K/60Hz and triple video up to 4K/30Hz;
  • USB4 Mode:
  • Single video up to 8K/60Hz, dual video up to 8K/30Hz and triple video up to 4K/60Hz
Network & Communication
Ethernet Technology2.5 Gigabit Ethernet
Power Description
Power Source TypePower Adapter
Miscellaneous
Package Contents
  • USB4 Triple Video Docking Station with 100W Power
  • Quick Start Guide
  • USB4 1.0 C/M to C/M Cable, Black; 1m, 5A, 40Gbps, E-marked, Screw-in (part # ACC1137GLX)
  • Adapter, AC to DC, Output: 20.5V, 7.31A, Desk type, w/ ID Sensing, Level VI (part # 800-0452-101C)
  • AC Power Cord, C5 Connector, US Plug 3P, 1.8M (part # 511-0309-001C)
Kensington Security SlotYes
TAA CompliantNo
Software
Operating System SupportedChromeOS
Ubuntu
Windows
Android
macOS
Physical Characteristics
Weight (Approximate)1.35 kg
Height180 mm
Width222.9 mm
Depth85 mm
Product ColorBlack
Color FamilyBlack
General Information
Product TypeDocking Station
Manufacturer Part NumberDOCK460AUZ
Manufacturer Website Addresshttp://www.targus.com/au
ManufacturerTargus Group International
Product ModelDOCK460AUZ
Product NameUSB4 Triple Video Docking Station with 100W Power
Brand NameTargus
Technical Information
Cable Length1 m
Device SupportedSpeaker
Notebook
Monitor
Microphone
Headphone
Workstation
Connectivity TechnologyWired
FeaturesPower Delivery Pass-through
Charging CapabilityYes
Maximum Data Transfer Rate5 GB/s
Number of Displays Supported3
Supported Resolutions7680 x 4320
3840 x 2160
Screen Mode Supported4K @ 60Hz
4K UHD
8K
8K @ 30Hz
4K
8K @ 60Hz
Security Slot TypeKensington Security Slot
Interfaces/Ports
Host InterfaceUSB4
HDMIYes
HDMI Version2.1
Number of HDMI Ports1
DVINo
VGANo
Network (RJ-45)Yes
DisplayPortYes
Total Number of USB Ports5
ThunderboltNo
Number of DisplayPorts2
Headphone/Microphone Combo PortYes
Number of RJ-45 Ports1
Mini DisplayPortNo
USB Type-CYes
USB Type-C Detail1 x USB-C Ports / 3.2 Gen 2
DisplayPort Version1.4
Number of USB Type-C Ports1
Number of USB Type-A Ports4
USB Power Delivery100W
Number of USB 3.2 Gen 1 Type-A Ports2
Number of USB 3.2 Gen 2 Type-A Ports2
USB Type-AYes
