Targus DOCK570AUZ Usb-c Quad Video 4K Docking Station With 100W Power DOCK570AUZ
SKU
298162
Brand
MPN
DOCK570AUZ
Warranty
Standard Manufacturer's Warranty
$727.00
Buy Now And Earn 727 Reward Points!

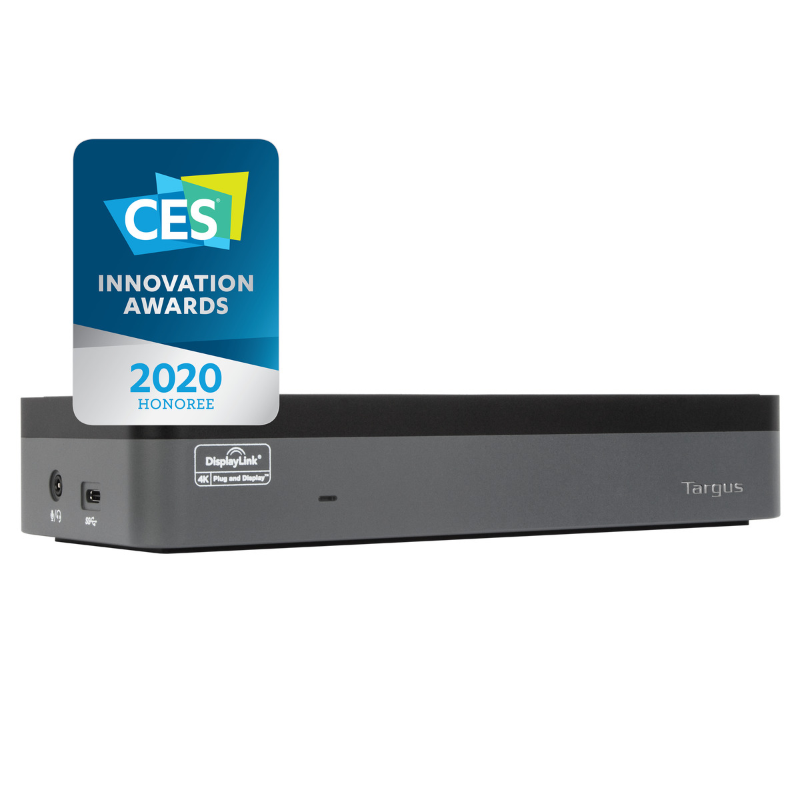

Targus DOCK570AUZ USB-C Quad Video 4K Docking Station with 100W Power
| SKU | DOCK570AUZ |
|---|---|
| GTIN | 092636336806 |
| Brand | Targus |
| Model | DOCK570AUZ |
| Notes | Product marketing refers to '100W Power Delivery' while some technical notes indicate the powered USB-C port is non-PD — this discrepancy is preserved from vendor materials. |
| Ports | HDMI: 4 x HDMI 2.0 Audio: 1 x 3.5mm combo Audio In/Out (microphone/speakers/earphones) with Apple and Nokia headset auto-detection USB-A: 4 x USB 3.0 ports (1 fast-charging) Ethernet: 1 x Gigabit Ethernet (RJ-45) Host Cable: USB-C to USB-C cable included; USB-C to USB-A adapter included to support USB-A laptops DisplayPort: 4 x DisplayPort 1.2 USB-C (powered): 1 x USB-C 3.0 port with up to 100W power (listed in vendor materials; also described as non-PD in some specs) |
| Power | Host Power: Up to 100W (vendor marketing lists 100W Power Delivery; some spec notes indicate 100W non-PD for the powered USB-C port) AC Adapter Output: 20V ⎓ 9A, 180W (AC to DC adapter included) |
| Category | Connectivity Devices |
| Warranty | 3 Year Limited Warranty |
| Description | Enterprise-class universal USB-C docking station that supports up to four independent 4K displays and provides host power and multiple peripheral connections. Dual DisplayLink DL-6910 chipset enables four DisplayPort 1.2 (3840 x 2160 @60Hz) or four HDMI 2.0 (3840 x 2160 @50Hz) outputs. Includes multiple USB 3.0 ports (one fast-charging), Gigabit Ethernet, combo audio in/out, and a comprehensive set of power tips and cables to support a wide range of laptops. Rubberized padded base and VESA-mount provision for tidy installations. Compatible with Windows, macOS, Chrome OS, Android and Ubuntu Linux. 3 Year Limited Warranty. |
| Key Features | Supports up to four 4K extended displays Dual DisplayLink DL-6910 chipset Includes power tips and USB-C to USB-A adapter for broad laptop compatibility VESA bracket mounting provision (VESA mount bracket ACX003GLZ sold separately) Rubberized, padded bottom to protect surfaces 3 Year Limited Warranty |
| Product Type | Docking Station |
| Sub-Category | USB and Lightning Connectivity |
| Compatibility | Windows (10/8.1/7) macOS (OS X 10.10, 10.11, 10.12 listed) Chrome OS (R51 or later) Android (5.0 or later) Ubuntu Linux Works with PCs, Macs, Chromebooks, and many Android devices |
| Product Title | Targus USB-C Universal Quad 4K (QV4K) Docking Station with 100W Power (DOCK570AUZ) |
| Display Support | HDMI Mode: 3840 x 2160 @ 50Hz (HDMI) DisplayPort Mode: 3840 x 2160 @ 60Hz (DisplayPort) Maximum Displays: Up to 4 independent displays |
| Physical/Design | Base: Rubberized, padded bottom Mounting: VESA bracket mounting provision (Targus VESA Mount Bracket ACX003GLZ sold separately) |
| What's in the Box | USB-C Universal Quad 4K (QV4K) Docking Station User Guide (part #410-3878-001A) DC cable to power tip, 1M (part #511-0459-001C) Input US AC Cable Cord (part #511-0309-001C) Power Tips (parts PT-3A, PT-3H, PT-3H2, PT-3I2, PT-3P, PT-3W, PT-3X9) USB-C/M (screwed) to C/M (normal) Cable, 1M, 5A, 10Gbps (part #511-0515-001A) AC to DC Adapter, output: 20V, 9A, 180W (part #800-0478-001A) USB-C/F to A/M Adapter (part #ACC1104GLX) |
| Chipset/Technology | Dual DisplayLink DL-6910 |
| Manufacturer Website | targus.com |
| Thunderbolt Compatibility | Thunderbolt 3 compatible / supports DisplayPort Alt Mode |
| Software/Enterprise Features | Wi-Fi Auto Switch (disables Wi-Fi when Ethernet is active) MAC Address Cloning (replaces dock Ethernet MAC with host MAC for device-based authentication) Ghost Device Removal (removes latent Targus docking devices from local registry) |
Targus DOCK570AUZ USB-C Quad Video 4K Docking Station with 100W Power
