Startech.Com 6ft (2m) VESA Certified Mini DisplayPort to DisplayPort 1.4 Cable - 8K 60Hz HBR3 HDR - Super UHD mDP to DP 1.4 Cord - Slim (34 AWG) Ultra HD 4K 120Hz - Monitor/Video Cable (DP14MDPMM2MB)

SKU
381885
Brand
MPN
DP14MDPMM2MB
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$41.00
Buy Now And Earn 41 Reward Points!

StarTech.com 2 m DisplayPort/Mini DisplayPort A/V Cable for Audio/Video Device, Notebook, Workstation, TV, Monitor, Projector, PC, MAC, Computer, Graphics Card - First End: 1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male - Second End: 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male - 32.4 Gbit/s - Supports up to7680 x 4320 - Shielding - Gold Plated Connector - 34 AWG - Black

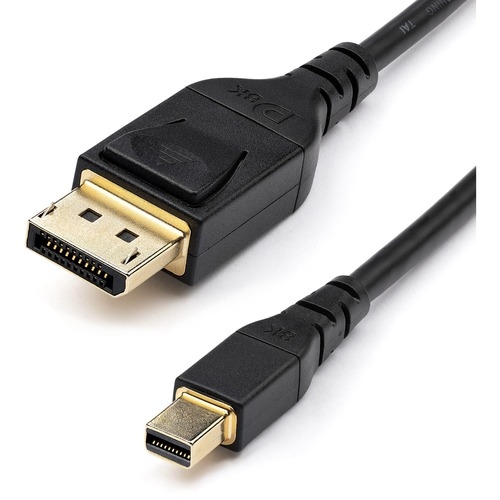

This 2 meter VESA Certified Mini DisplayPort to DisplayPort v1.4 cable features a mDP male connector on one end, and a DP male latching connector on the other, allowing you to connect any Mini DisplayPort-enabled laptop or workstation to an 8K TV, monitor or projector that uses a standard DisplayPort connection.

Astonishing Picture Quality This mDP to DP 1.4 cable supports high resolutions of up to 8K (7680 x 4320p) at 60Hz or 4K (3840 x 2160) at 120Hz with a maximum HBR3 bandwidth of 32.4 Gbps and ensures that digitally protected content is displayed properly, with both HDCP 2.2 and DPCP capability. The adapter cable also supports:

  • Multi-Stream Transport (MST) for daisy chaining multiple monitors.
  • Display Stream Compression (DSC) v1.2 transport that enables up to 3:1 compression ratio.
  • HDR meta transport, which offers a flexible metadata packet transport to support future dynamic HDR standards.
  • Expanded audio transport, which covers capabilities such as 32 uncompressed audio channels, 1536kHz sample rate.
  • Forward Error Correction (FEC), which overlays the DSC 1.2 transport, addresses the transport error resiliency needed for compressed video transport to external displays.

Ultimate Compatibility This Mini DisplayPort to DisplayPort adapter is compatible with several systems, including your PC, Mac and Microsoft Surface devices with mDP. For ultimate convenience, this Mini DisplayPort cable works with computers that are equipped with Thunderbolt 2 ports, enabling you to connect your DP compatible displays to your mDP source. In addition, this DP1.4 adapter cable supports a wide selection of mDP1.4-equipped graphics cards such as:

  • Radeon™ VII, SSG, WX x100, Pro and FirePro™ series.
  • Nvidia Quadro P series.

Built to Last This Mini DisplayPort to DisplayPort v1.4 adapter cable is designed with gold-plated latching DisplayPort connectors that prevent accidental disconnection, making it a great accessory for office or boardroom applications.

Having 34 AWG conductors and 4.5mm outer diameter, this slim cable offers both flexibility and ease of connection.

The DP14MDPMM2MB is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Miscellaneous
Compatibility Nvidia Quadro Graphic Cards:
      • P620
      • P600
      • P400
AMD Graphic Cards:
    • Radeon Pro VII
    • Radeon Pro SSG
    • Radeon Pro WX9100
    • Radeon Pro WX4100
    • Radeon Pro WX3200
    • Radeon Pro WX3100
    • Radeon Pro WX2100
    • Radeon Pro W5700
    • Radeon Pro W5500
    • FirePro W9100
    • FirePro 900
    • FirePro 600
    • FirePro 4100
Technical Information
Cable Length 2 m
Data Transfer Rate 32.4 Gbit/s
Device Supported PC
Projector
Monitor
Notebook
TV
MAC
Computer
Graphics Card
Workstation
Audio/Video Device
Shielding Yes
Features Bend Resistant
Forward Error Correction (FEC) Support
Latching Connector
EMI Protection
Stress Resistant
Multi-Stream Transport (MST) Support
HDCP 2.2
DPCP
Strain Relief
Display Stream Compression (DSC) 1.2
Tarnish Resistant
Cable Type DisplayPort/Mini DisplayPort
Connector Type on First End DisplayPort 1.4 Digital Audio/Video - Male
Connector Type on Second End Mini DisplayPort 1.2 Digital Audio/Video - Male
Connector Plating Gold
American Wire Gauge 34 AWG
Supported Resolution 7680 x 4320
Connector on First End Details 1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male
Connector on Second End Details 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male
Physical Characteristics
Jacket Material Polyvinyl Chloride (PVC)
Product Color Black
General Information
Product Type A/V Cable
Manufacturer Part Number DP14MDPMM2MB
Manufacturer Website Address http://www.startech.com/au
Manufacturer StarTech.com
Product Name Mini Displayport to Displayport Cable
Brand Name StarTech.com
