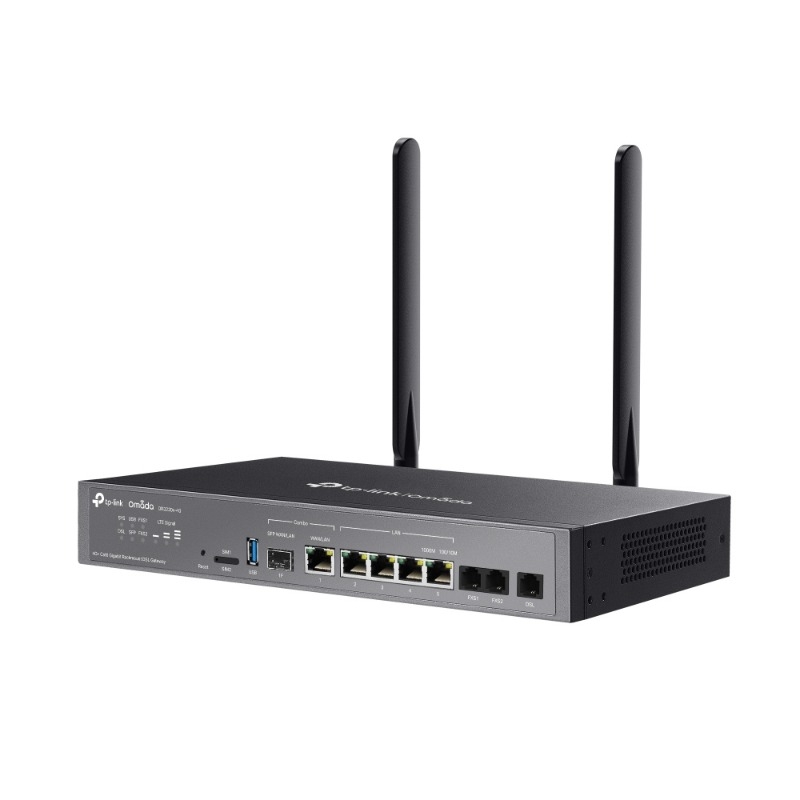

TP-LINK OMADA 4G+ CAT6 GIGABIT RACKMOUNT DSL GATEWAY, DSL/FXS(3), GBE WAN(1)/LAN(4), 5YR DR3220V-4G
SKU
431414
Brand
MPN
DR3220V-4G
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$513.00
Buy Now And Earn 513 Reward Points!
Omada 4G+ Cat6 Gigabit Rackmount DSL Gateway - Support 4G+ Cat6 up to 300 Mbps* - Super VDSL (VDSL2 35b): Supports 350Mbps DSL Access† - VDSL2/ADSL2+/ADSL2/ADSL Compatibility - 1× DSL Port, 2× FXS Ports, 1× Gigabit SFP/RJ45 Combo WAN/LAN Port, 4× Gigabit RJ45 LAN Ports, 1× USB 3.0 Port - 2× Nano SIM for 4G/LTE Failover - DPI Security Support - IPSec / PPTP / L2TP / OpenVPN / WireGuard / GRE** / SSL VPN - Load Balancing Across DSL, 4G, and Ethernet WAN for Optimised Connectivity - Centralised Cloud Management - Desktop / Rack-Mounting
| PRODUCT DESCRIPTION | Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway |
| DEVICE TYPE | 4G+ Cat6 Gigabit Rackmount DSL Gateway |
| NETWORK | VDSL2/ADSL2+/ADSL2/ADSL/4G/LTE |
| FREQUENCY | 350Mbps DSL Access*2, 4G+ Cat6 up to 300Mbps |
| SIM TYPE | 2× Nano SIM for 4G/LTE |
| WI-FI FREQUENCY & SIGNAL RATE | N?A |
| INTERFACE | 1x Combo Gigabit SFP/RJ45 Port, 4 × RJ45 Gigabit LAN Ports,1x DSL Port, 2x FXS Ports |
| POWER SUPPLY (POE) | N/A |
| MOUNTING | Desktop/ Rack-mounting |
| OMADA APP | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| VPN | Yes |
| CLOUD ACCESS | Yes. Require the use of Omada Controller. |
| SECURITY | Source/Destination IP Based Access Control,TCP/UDP/ICMP Flood Defense,ARP Scanning |
| ADVANCED FUNCTIONS 1 | LTE: Two 3dBi omnidirectional detachable antennas |
| ADVANCED FUNCTIONS 2 | IP-Based Bandwidth Control |
| ADVANCED FUNCTIONS 3 | TR-069 (data models of TR-098 and TR181 are supported) |
| ADVANCED FUNCTIONS 4 | GRE - Standalone Mode |
| ADVANCED FUNCTIONS 5 | SSL VPN - 50 Tunnels |
| ADVANCED FUNCTIONS 6 | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| IN THE BOX | DR3650v, Power Adapter, Ethernet Cable, Phone Cable, Quick Installation Guide |
| DIMENSIONS (WXDXH) | 294 × 180 × 44 mm |
| WARRANTY | 5-Year Warranty |
