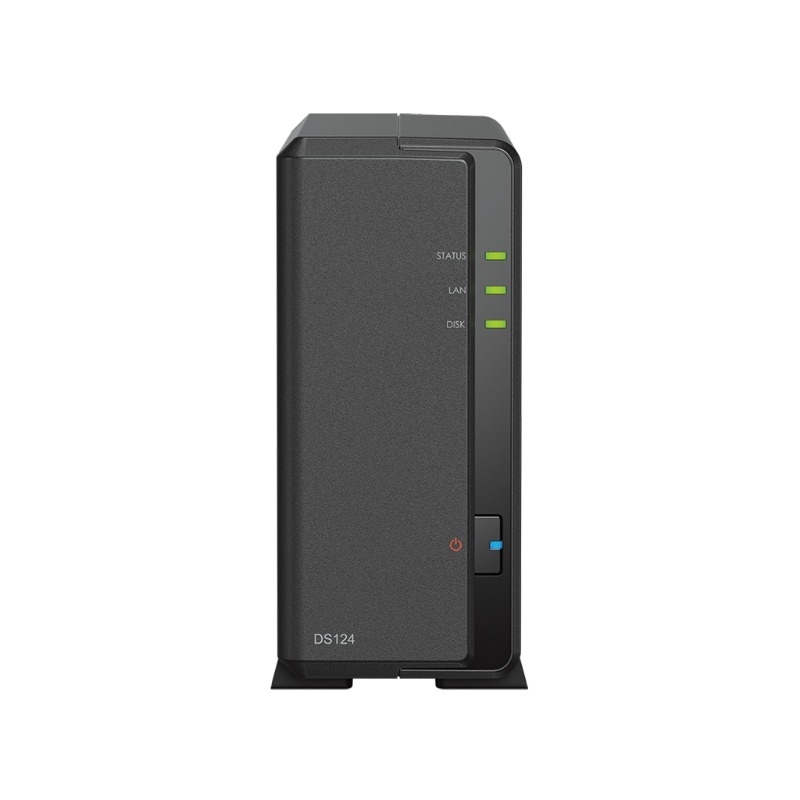

Synology DS124 Diskstation 1-Bay Nas DS124
SKU
404797
Brand
MPN
DS124
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$277.00
Buy Now And Earn 277 Reward Points!
Synology DiskStation DS124 bring scattered data under control, a super compact daat hub that empowers data centralization, organization, and sharing. License-free solutions in Synology DSM allows you to established a secure private cloud, conveniently access files from any device, and collaborate seamlessly with partners or clients and is backed with 2 year limited warranty.
Specification:
•CPU Frequency: Realtek RTD1619B 4-core 1.7Ghz
•Hardware Encryption Engine
•Memory: DDR4 1GB
•Internal HDD/SSD: 3.5" or 2.5" SATA(II/III) x1 (With optional 2.5" Disk Holder-Hard drive not included)
•External HDD Interface: USB 3.0 Port X2,
•Size (HxWxD): 166x71x224mm
•Weight: 0.72Kg
•LAN: Gigabit x1
•Wake on LAN/WAN
•System Fan: 60x60mm x1
•Wireless Support (dongle)
•Noise Level: 18.4 dB(A)
•Power Recovery
•AC Input Power Voltage: 100V-240V AC
•Power Frequency: 50/60 Hz, Sin
Specification:
•CPU Frequency: Realtek RTD1619B 4-core 1.7Ghz
•Hardware Encryption Engine
•Memory: DDR4 1GB
•Internal HDD/SSD: 3.5" or 2.5" SATA(II/III) x1 (With optional 2.5" Disk Holder-Hard drive not included)
•External HDD Interface: USB 3.0 Port X2,
•Size (HxWxD): 166x71x224mm
•Weight: 0.72Kg
•LAN: Gigabit x1
•Wake on LAN/WAN
•System Fan: 60x60mm x1
•Wireless Support (dongle)
•Noise Level: 18.4 dB(A)
•Power Recovery
•AC Input Power Voltage: 100V-240V AC
•Power Frequency: 50/60 Hz, Sin
| CPU | Realtek RTD1619B |
|---|---|
| Fan | 60 mm single modular fan |
| SKU | DS124 |
| Brand | Synology |
| Model | DS124 |
| Memory | 1 GB DDR4 (soldered, non-ECC) |
| Weight | 0.7 kg (approx. 700 g / 1.54 lb) |
| Category | Storage |
| Diskless | Yes |
| Hot-Swap | No |
| Warranty | 2-year hardware warranty (extendable to 4 years via Extended Warranty Plus) |
| CPU Cores | 4 |
| Fan Modes | Full-Speed; Cool; Quiet; Low-power |
| USB Ports | 2 x USB 3.2 Gen 1 |
| Drive Bays | 1-bay |
| NVMe Slots | No |
| Description | The Synology DiskStation DS124 is a compact 1-bay NAS designed for personal and small-business use. Powered by a quad-core Realtek RTD1619B 1.7 GHz CPU and 1 GB DDR4 (soldered, non-upgradeable), it runs Synology DSM (7.2/7.3) and delivers basic network services via a single 1 GbE port and two USB 3.2 Gen 1 ports. The diskless DS124 supports one 3.5" or 2.5" SATA HDD/SSD, Snapshot Replication, Synology Drive, Hyper Backup, Surveillance Station (includes 2 free camera licenses), and common file protocols for secure private-cloud, backup, and media tasks. |
| Form Factor | Desktop |
| Sub-Category | Network Attached Storage (NAS) |
| CPU Frequency | 1.7 GHz |
| Network Ports | 1 x Gigabit RJ-45 (1 GbE) |
| Power Adapter | 36 W (external adapter) |
| Product Title | Synology DiskStation DS124 1-Bay NAS (Diskless) |
| Additional Notes | Diskless system (drive not included) RAM is soldered and not user-upgradeable No expansion port; no hot-swap capability Provides a compact, license-free DSM experience for file sharing, backup, and light surveillance |
| CPU Architecture | 64-bit ARM |
| Operating System | Synology DiskStation Manager (DSM) 7.2 / 7.3 |
| Package Contents | 1 x DS124 main unit 1 x AC power adapter 1 x RJ-45 LAN cable 1 x Accessory pack 1 x Quick Installation Guide |
| Sources Combined | Synology product details and download center Retail listings (Newegg, Amazon, eBay) Product reviews and overviews |
| Max Network Speed | 1 GbE |
| Power Consumption | 10.69 W (Access), 3.44 W (HDD Hibernation) |
| Max Drive Capacity | 12 TB (per product listing) |
| Memory Upgradeable | No |
| Drive Compatibility | 1 x 3.5" or 2.5" SATA HDD/SSD (drives not included) |
| Software & Services | Synology Drive Snapshot Replication Hyper Backup Surveillance Station (includes 2 free licenses) |
| Supported Protocols | SMB AFP NFS FTP WebDAV CalDAV iSCSI Telnet SSH SNMP VPN (PPTP, OpenVPN, L2TP) |
| Software Limitations | Synology Virtual Machine Manager not available Active Backup Suite not available Write Once Read Many (WORM) support not available Volume encryption not available Synology Hybrid RAID (SHR) not available |
| Surveillance Support | Includes 2 free Surveillance Station licenses; supports IP camera deployment (vendor listings indicate support for up to 12 cameras) |
| Dimensions (H x W x D) | 166 x 71 x 224 mm |
| Manufacturer Part Number | DS124 |
| Supported Drives / Notes | Supports Synology HAT3300 NAS drives and a wide range of third-party NAS drives (see Synology compatibility list for validated models) |
| Hardware Encryption Engine | Yes |
| Dimensions (inches H x W x D) | 6.54 x 2.8 x 8.82 in |
Synology DS124 Diskstation 1-Bay NAS
