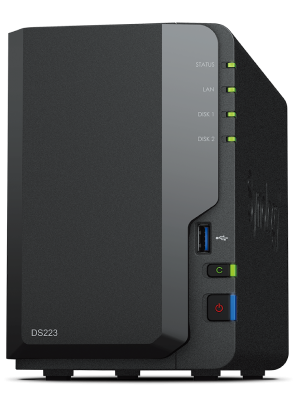

Synology DS223 DiskStation 2-Bay Nas DS223
SKU
395381
Brand
MPN
DS223
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$504.00
Buy Now And Earn 504 Reward Points!
Synology DiskStation Designed with both leisure and work in mind, the entry-level 2-bay DS223 has all the tools you need to create an intuitive and secure platform to centralize, organize, and share your data. Leverage the license-free, built-in solutions available in Synology DiskStation Manager (DSM) to create your own private cloud, access files from any device, and work
efficiently on business projects with clients and collaborators. DS223 is backed by Synology's 2 year limited warranty.
Specification:
•CPU Frequency: Realtek RTD1619B
•Hardware Encryption Engine
•Memory: DDR4 2GB
•Internal HDD/SSD: 3.5" or 2.5" SATA x2 (Hard drive not included)
•Hot Swappable HDD: No
•External HDD Interface: USB 3.2 Port X 3
•Size (HxWxD): 165x108x233.2mm
•Weight: 1.3Kg
•LAN: Gigabit x1
•Wake on LAN/WAN
•ssSystem Fan: 92x92mm x1
•Wireless Support (dongle)
•Noise Level: 19.9 dB(A)
•Po
efficiently on business projects with clients and collaborators. DS223 is backed by Synology's 2 year limited warranty.
Specification:
•CPU Frequency: Realtek RTD1619B
•Hardware Encryption Engine
•Memory: DDR4 2GB
•Internal HDD/SSD: 3.5" or 2.5" SATA x2 (Hard drive not included)
•Hot Swappable HDD: No
•External HDD Interface: USB 3.2 Port X 3
•Size (HxWxD): 165x108x233.2mm
•Weight: 1.3Kg
•LAN: Gigabit x1
•Wake on LAN/WAN
•ssSystem Fan: 92x92mm x1
•Wireless Support (dongle)
•Noise Level: 19.9 dB(A)
•Po
| MPN | DS223 |
|---|---|
| SKU | DS223 |
| UPC | 0846504004775 |
| ASIN | B0BRNBVTJK |
| Brand | Synology |
| Model | DS223 |
| Notes | Specifications and feature availability are based on Synology documentation and third-party reviews provided; model specifications are subject to change. Performance figures are based on Synology internal testing and independent reviews. |
| Weight | kg: 1.28 lb: 2.82 |
| Category | Storage |
| Diskless | true |
| Warranty | Standard: 2-year hardware warranty Extendable: Extendable to 4 years with Extended Warranty Plus (availability region-limited) |
| CPU Cores | 4 |
| CPU Model | Realtek RTD1619B |
| USB Ports | USB 3.2 Gen 1: 3 Front USB with Copy Button: 1 |
| Drive Bays | 2 |
| System Fan | 1 x 92 x 92 x 25 mm (92 mm), replaceable |
| Description | Compact 2-bay DiskStation NAS designed for home and small office use. The DS223 is a diskless, energy-efficient NAS powered by a quad-core Realtek RTD1619B (1.7 GHz) and 2 GB DDR4 soldered memory. It supports 3.5" SATA HDDs and 2.5" SATA SSDs in hot-swappable bays, offers 1 x Gigabit Ethernet and 3 x USB 3.2 Gen 1 ports (including a front USB with copy button), and runs Synology DiskStation Manager (DSM 7.x) with support for SHR, Btrfs snapshots, and license-free Synology services including Surveillance Station (2 camera licenses included). The unit uses an external 60W power adapter, has low operating power consumption (17.343 W access; 4.08 W hibernation), and small desktop dimensions suitable for home/small-office deployments. |
| Noise Level | 14.6 dB(A) |
| Power Notes | Power consumption and noise figures are based on Synology internal testing; see Synology documentation for measurement details. |
| SAN Manager | Maximum LUNs: 4 Maximum iSCSI Targets: 2 |
| Manufacturer | Synology Inc. |
| Memory Notes | Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions; revised components are validated for compatibility. |
| Plex Support | Not available at launch (per reviews) |
| Release Date | February 2023 |
| Sub-Category | Network Attached Storage (NAS) |
| CPU Frequency | 1.7 GHz |
| Network Ports | LAN: 1 x 1GbE (RJ-45) |
| Product Title | Synology DiskStation DS223 2-Bay NAS (Diskless) |
| Certifications | FCC CE BSMI VCCI RCM UKCA EAC CCC KC BIS |
| DSM / Software | DSM Features: [ "Synology Drive", "Surveillance Station (2 camera licenses included)", "Hyper Backup (folder and package backup)", "Snapshots (Btrfs)" ] Operating System: Synology DiskStation Manager (DSM) DSM Version Mentioned: DSM 7.3.x Synology Drive - Max Users: 5 Synology Drive - Max Hosted Files: 100000 |
| Docker Support | Not available (per reviews) |
| Drive Bay Type | Hot-swappable trays |
| File Protocols | SMB AFP NFS FTP WebDAV Rsync CalDAV iSCSI Telnet SSH SNMP VPN (PPTP, OpenVPN, L2TP) |
| M.2 NVMe Slots | None |
| Dimensions (mm) | Depth: 232.7 Width: 108 Height: 165 |
| Power Frequency | 50/60 Hz, Single Phase |
| Wake on LAN/WAN | Yes |
| AC Input Voltage | 100 V to 240 V AC |
| CPU Architecture | ARM (64-bit) |
| Storage Humidity | 5% to 95% RH |
| Expansion Support | No expansion support |
| Front Copy Button | true |
| Packaging Content | Main Unit x1 Accessory Pack x1 AC Power Adapter x1 AC Power Cord x1 RJ-45 LAN Cable x1 Quick Installation Guide x1 |
| Power Consumption | Access: 17.343 W HDD Hibernation: 4.08 W |
| Newegg Item Number | N82E16822108824 |
| Operating Humidity | 8% to 80% RH |
| Dimensions (inches) | 6.5 x 4.25 x 9.17 in |
| Hot Swappable Drive | true |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| External Ports Notes | MTU value of 1GbE LAN port limited to 1500 |
| Maximum Local Groups | 64 |
| Supported RAID Types | Synology Hybrid RAID (SHR) Basic JBOD RAID 0 RAID 1 |
| Surveillance Station | Default Licenses: 2 Maximum IP Cameras and Total FPS (H.264): { "3M": "20 channels, 300 FPS", "4K": "11 channels, 110 FPS", "5M": "15 channels, 150 FPS", "1080p": "20 channels, 460 FPS" } Maximum IP Cameras and Total FPS (H.265): { "3M": "20 channels, 400 FPS", "4K": "20 channels, 200 FPS", "5M": "20 channels, 350 FPS", "1080p": "20 channels, 500 FPS" } |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Supported Drive Types | 3.5" SATA HDD 2.5" SATA SSD |
| Environment Compliance | RoHS Compliant |
| File System - External | Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT |
| File System - Internal | Btrfs ext4 |
| Maximum Shared Folders | 64 |
| Power Supply / Adapter | External 60 W power adapter (included) |
| Scheduled Power On/Off | Yes |
| System Memory (Maximum) | 2 GB (fixed/non-upgradeable) |
| Virtual Machine Support | Not available (per reviews) |
| Included Camera Licenses | 2 |
| Maximum Internal Volumes | 64 |
| System Memory (Installed) | 2 GB DDR4 (non-ECC, soldered) |
| Maximum Single Volume Size | 108 TB |
| HDD/SSD Compatibility Notes | Supports common NAS drives (WD Red, Seagate IronWolf, Synology drives, Toshiba). Refer to Synology compatibility pages for supported models and capacities. |
| Maximum Local User Accounts | 256 |
| Maximum Shared Folder Sync Tasks | 2 |
| Optional / Recommended Accessories | Synology HAT5300 Series (Enterprise 3.5" SATA HDD) Synology HAT3300 Series (Plus Series 3.5" SATA HDD) Synology SAT5200 Series (Enterprise 2.5" SATA SSD) |
| Maximum SMB Connections (FSCT-Based) | 5 |
| Storage Management Limits (DSM Notes) | Actual maximum storage pool and volume sizes vary depending on drives used, number of drive bays, and RAID configuration. Usable capacity will be lower than maximum due to filesystem and system metadata. |
Synology DS223 DiskStation 2-Bay NAS
