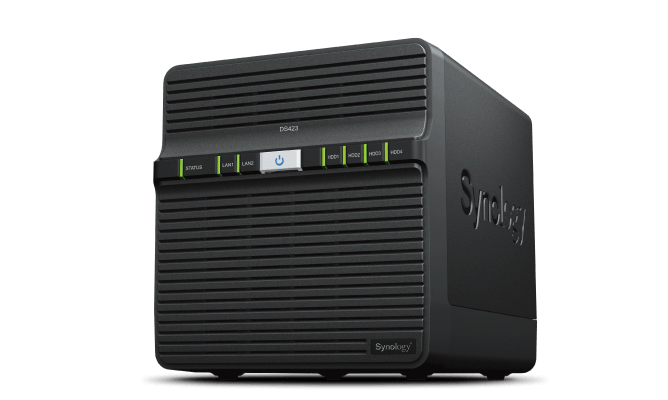

Synology DS423 DiskStation 4-Bay Nas DS423
SKU
397506
Brand
MPN
DS423
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$698.00
Buy Now And Earn 698 Reward Points!
Synology DiskStation DS423 offers four bays of storage and everything you need to consolidate, organize, and secure your data. Leverage built-in solutions in Synology DSM to sync and access files across multiple devices, create a digital photo hub for work or leisure, or secure your premises with intelligent video surveillance tools. warranty.
Specification:
•CPU Frequency: Realtek RTD1619B 4-core (4-thread) 1.7Ghz
•Hardware Encryption Engine
•Memory: DDR4 2GB
•Internal HDD/SSD: 3.5" or 2.5" SATA(II) x 4 (Hard drive not included)
•External HDD Interface: USB 3.0 Port x 2
•Size (HxWxD): 184x168x230mm
•Weight: 2.28Kg
•LAN: Gigabit x2
•Wake on LAN/WAN
•System Fan: 80x80mm x2
•Wireless Support (dongle)
•Noise Level: 18.9 dB(A)
•Power Recovery
•AC Input Power Voltage: 100V-240V AC
•Power Frequency: 50/60 Hz, Single Phase
•Power Consumption: 31.56W (Access); 7.68W (HD
Specification:
•CPU Frequency: Realtek RTD1619B 4-core (4-thread) 1.7Ghz
•Hardware Encryption Engine
•Memory: DDR4 2GB
•Internal HDD/SSD: 3.5" or 2.5" SATA(II) x 4 (Hard drive not included)
•External HDD Interface: USB 3.0 Port x 2
•Size (HxWxD): 184x168x230mm
•Weight: 2.28Kg
•LAN: Gigabit x2
•Wake on LAN/WAN
•System Fan: 80x80mm x2
•Wireless Support (dongle)
•Noise Level: 18.9 dB(A)
•Power Recovery
•AC Input Power Voltage: 100V-240V AC
•Power Frequency: 50/60 Hz, Single Phase
•Power Consumption: 31.56W (Access); 7.68W (HD
| SKU | DS423 |
|---|---|
| UPC | 846504004911 |
| Type | Desktop NAS (Diskless) |
| Brand | Synology |
| Model | DS423 |
| BTU/hr | Access: 110.52 BTU/hr HDD Hibernation: 16.95 BTU/hr |
| Weight | kg: 2.21 kg lb: 4.87 lb |
| Category | Storage |
| CPU Cores | 4 |
| CPU Model | Realtek RTD1619B |
| USB Ports | 2 x USB 3.2 Gen 1 (Type-A) |
| Drive Bays | 4 |
| CPU Threads | 4 |
| Description | The Synology DiskStation DS423 is a compact 4-bay desktop NAS designed for centralized data storage, secure file sharing, backups, and entry-level surveillance. Powered by a Realtek RTD1619B quad-core 1.7 GHz CPU and 2 GB DDR4 onboard memory, the diskless DS423 supports 3.5" SATA HDDs and 2.5" SATA SSDs (hot-swappable), dual Gigabit Ethernet, and USB 3.2 Gen 1 ports. It runs Synology DiskStation Manager (DSM) and supports Btrfs/ext4 file systems, Synology Hybrid RAID and standard RAID modes, snapshot-based protection, and Surveillance Station (up to 30 IP cameras, includes 2 licenses). |
| Form Factor | 4-bay enclosure |
| Noise Level | 20.6 dB(A) (measured, idle with specified drives) |
| Other Notes | Diskless system — drives not included Synology DiskStation Manager (DSM) operating system Supports Synology Hybrid RAID and standard RAID migration, SSD TRIM, link aggregation and failover (where supported by network environment) Some specifications (e.g., pre-installed memory module) may be revised by manufacturer; usable storage varies by drive selection and RAID configuration |
| Memory Notes | Onboard/2 GB pre-installed. Synology may revise pre-installed memory modules in response to component lifecycle and supply conditions. |
| Sub-Category | Network Attached Storage (NAS) |
| Surveillance | Supported IP Cameras: Up to 30 IP cameras (system) Default Surveillance Station Licenses: 2 |
| CPU Frequency | 1.7 GHz |
| Hot-Swappable | Yes |
| Network Ports | 2 x 1GbE RJ-45 |
| Product Title | Synology DiskStation DS423 4-Bay Desktop NAS (Diskless) |
| System Memory | 2 GB DDR4 (onboard) |
| AC Input Power | 100 - 240 V AC, 50/60 Hz |
| Certifications | FCC CE BSMI VCCI RCM UKCA EAC CCC KC BIS RoHS |
| Cooling / Fans | 2 x 80 mm fans (fan speed modes: Full-Speed, Cool, Quiet) |
| Package Weight | 8.13 lb (box weight reported by BH) |
| Included Cables | 2 x RJ-45 LAN cables |
| CPU Architecture | 64-bit |
| Storage Humidity | 5% to 95% RH |
| Included Warranty | 2-year hardware warranty (extendable with Synology Extended Warranty Plus) |
| Power Consumption | Access: 32.41 W HDD Hibernation: 4.97 W |
| Security Features | Kensington security slot (cable lock sold separately) |
| Memory Upgradeable | Not specified / Onboard (BH listing indicates Onboard/Not Upgradeable) |
| Operating Humidity | 8% to 80% RH |
| Packaging Contents | Main unit x1 Accessory pack x1 AC power adapter x1 AC power cord x1 RJ-45 LAN cable x2 Quick Installation Guide x1 |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Supported RAID Types | Synology Hybrid RAID (SHR) Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 |
| Internal File Systems | Btrfs ext4 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Supported Drive Types | 3.5" SATA HDD 2.5" SATA HDD/SSD |
| Dimensions (H x W x D) | mm: 184 x 168 x 230 mm inches: 7.24 x 6.61 x 9.06 in |
| Power Supply / Adapter | 90 W external AC adapter |
| Manufacturer Part Number | DS423 |
| Hardware Encryption Engine | No / Not specified |
| Snapshot Replication Limits | Maximum snapshots per LUN: 32 Maximum snapshots per system: 1024 Maximum snapshots per shared folder: 128 |
| Network Protocols / Services | SMB AFP NFS FTP WebDAV Rsync CalDAV iSCSI SNMP VPN (PPTP, OpenVPN, L2TP) LDAP |
| DSM Maximum Single Volume Size | 108 TB |
| External File Systems Supported | Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT |
| Max Raw Capacity (manufacturer) | Up to 80 TB (raw capacity; usable capacity depends on drives and RAID configuration) |
| DSM Limits / Notable Software Limits | Maximum local groups: 64 Maximum shared folders: 64 Synology Drive max users: 5 Maximum local user accounts: 256 Maximum shared folder sync tasks: 2 Synology Drive max indexed/hosted files: 100000 |
