Startech Dual Port Pci Express Gigabit Ethernet Network Card Adapter - 2 Port Pcie Nic 10/100/100
QUICK OVERVIEW

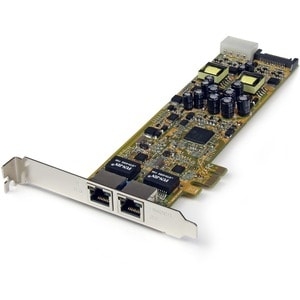

The ST2000PEXPSE Dual Port PoE NIC provides two 10/100/1000 Mbps PoE RJ45 ports that can provide up to 25.5W of power each, combining a network data connection and power on a single cable, for less clutter and convenient installations in remote locations.
This full/low profile Gigabit server adapter supports the IEEE 802.3at (Type 1 and 2) standard for a Power Sourcing Equipment (PSE) device, and can deliver 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and cable for remote networked devices such as IP cameras, IP phones and wireless access points.
Suitable for any PCI Express-enabled client, server or workstation, this versatile PoE network adapter supports features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL).
The ST2000PEXPSE PoE NIC is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Reduces cable clutter and makes it easier to install devices in remote locations that are powered by the the PSE network card, with up to 25.5W of power delivery as well as a solid network link over a single cable connection
- Suitable for installation in full profile or small form factor computer cases using the included half-height/low profile bracket, adding two network connection ports using a single PCI Express slot
- Provides versatile network connections with support for advanced features such as Jumbo Frames and VLAN tagging, as well as Wake-On-LAN and Auto MDIX
| Connector(s) | |
| Connector Type(s) | PCI Express x1 Male |
| External Ports | RJ-45 Female |
| Internal Ports | LP4 (4 pin, Molex Large Drive Power) Male |
| SATA Power (15 pin) Plug | |
| Environmental | |
| Humidity | 5% ~ 95% RH |
| Operating Temperature | 0?C to 55?C (32?F to 131?F) |
| Storage Temperature | -20?C to 85?C (-4?F to 185?F) |
| Hardware | |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | Realtek - RTL8111E |
| Industry Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3at |
| Interface | RJ45 (Gigabit Ethernet) |
| Port Style | Integrated on Card |
| Ports | 2 |
| Indicators | |
| LED Indicators | Link/ Activity (green) |
| PoE Active (yellow) | |
| Packaging Information | |
| Shipping (Package) Weight | 245 g [8.6 oz] |
| Performance | |
| Auto MDIX | Yes |
| Buffer Size | 48 KB |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Maximum Data Transfer Rate | 1000 Mbps (uni-directional), 2000 Mbps (bi-directional) |
| MTBF | 140,981 hours |
| Physical Characteristics | |
| Product Height | 68 mm [2.7 in] |
| Product Length | 195 mm [7.7 in] |
| Product Weight | 106 g [3.7 oz] |
| Product Width | 19 mm [0.7 in] |
| Power | |
| Output Voltage | 48 DC |
| Software | |
| OS Compatibility | Windows? 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS X? 10.6 to 10.9Linux 2.4.x to 4.11.x LTS Versions Only |
| Special Notes / Requirements | |
| Patents and Licenses | The following patents are licensed for this product. This list might not be all inclusive. ? United States Patent No. 5,406,260 (expired) ? United States Patent No. 6,650,622 ? United States Patent No. 7,457,250 ? United States Patent No. 8,155,012 ? United States Patent No. 8,902,760 ? United States Patent No. 8,942,107 ? United States Patent No. 9,019,838 ? United States Patent No. 9,049,019 ? United States Patent Application No. 14/695,456 ? United States Patent Application No. 14/726,940 |
| System and Cable Requirements | Available full/low profile PCI Express expansion slot |
| Available LP4 Molex or SATA power connector | |
| What's in the Box | |
| Included in Package | Driver CD |
| Instruction Manual | |
| Low Profile Bracket | |
| PCI Express Network Card | |
The ST2000PEXPSE Dual Port PoE NIC provides two 10/100/1000 Mbps PoE RJ45 ports that can provide up to 25.5W of power each, combining a network data connection and power on a single cable, for less clutter and convenient installations in remote locations.
This full/low profile Gigabit server adapter supports the IEEE 802.3at (Type 1 and 2) standard for a Power Sourcing Equipment (PSE) device, and can deliver 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and cable for remote networked devices such as IP cameras, IP phones and wireless access points.
Suitable for any PCI Express-enabled client, server or workstation, this versatile PoE network adapter supports features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL).
The ST2000PEXPSE PoE NIC is backed by a StarTech.com 2-year warranty and free lifetime technical support.
