StarTech Lc To Lc Coupler 10 Pack, OS2 Single Mode Sc Footprint Lc Fiber Optic Coupler Without Flange, Lc/APC Duplex Adapter - 10 Pack Of Single Mode OS2 Lc To Lc Couplers In Sc Footprint Is Ideal For Fiber Breakout Cassettes/enclosures; Toolless Setup;
SKU
448762
Brand
MPN
DUPLEXLCAPCNOF
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$56.00
Buy Now And Earn 56 Reward Points!
QUICK OVERVIEW
DUPLEXLCAPCNOF

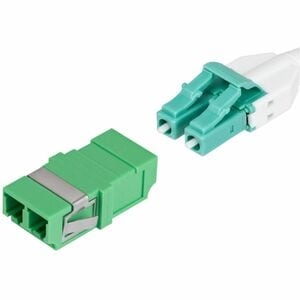

This 10-Pack of flangeless Single Mode LC couplers is a practical solution for supporting multiple installations. Join two LC Duplex connections in a fiber splice cassette or distribution panel.
Toolless Installation for Quick Setup
The LC Fiber Coupler supports Single Mode LC fiber cables. It is compatible with OS1/OS2 (9/125µm) fiber core/cladding. The coupler features toolless setup to simplify installation into fiber panels and modular assemblies. This 10 Pack is ideal for fast deployment in enterprise networks and fiber infrastructure.
Built for Reliable Performance
The Single Mode LC/LC Fiber Coupler features a durable PBT housing and zirconia ceramic-lined inner sleeves for precise fiber alignment, minimizing signal loss for long-lasting reliability and performance.
Toolless Installation for Quick Setup
The LC Fiber Coupler supports Single Mode LC fiber cables. It is compatible with OS1/OS2 (9/125µm) fiber core/cladding. The coupler features toolless setup to simplify installation into fiber panels and modular assemblies. This 10 Pack is ideal for fast deployment in enterprise networks and fiber infrastructure.
Built for Reliable Performance
The Single Mode LC/LC Fiber Coupler features a durable PBT housing and zirconia ceramic-lined inner sleeves for precise fiber alignment, minimizing signal loss for long-lasting reliability and performance.
| Product Type | Network Adapter |
| Packaged Quantity | 10, 10 Pack |
| Brand Name | StarTech.com |
| Connector Type on First End | LC/APC Network |
| Connector Type on Second End | LC/APC Network |
| Adapter Type | Fibre Optic |
| Product Color | Green |
| Minimum Operating Temperature | -40°C |
| Minimum Storage Temperature | -40°C |
| Maximum Storage Temperature | 85°C |
| Manufacturer Part Number | DUPLEXLCAPCNOF |
| Manufacturer Website Address | http://www.startech.com/au |
| Manufacturer | StarTech.com |
| Product Name | LC/APC Fiber Coupler |
| Device Supported | Distribution Panel, Splice Box |
| Weight (Approximate) | 2.8 g |
| Length | 27.9 mm |
| Height | 10.2 mm |
| Width | 15.2 mm |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Color Family | Green |
| Sleeve Material | Zirconia Ceramic |
| Features | Passive |
| Connector on First End Details | 2x LC/APC Network - Female |
| Connector on Second End Details | 2x LC/APC Network - Female |
| Connector Gender on First End | Female |
| Connector Gender on Second End | Female |
| Shipping Dimensions | Height 0.01, Width 14, Length 16, Shipping Weight 0.03 KG |
StarTech LC to LC Coupler 10 Pack, OS2 Single Mode SC Footprint LC Fiber Optic Coupler without Flange, LC/APC Duplex Adapter - 10 Pack of Single Mode OS2 LC to LC couplers in SC footprint is ideal for fiber breakout cassettes/enclosures; Toolless setup; Best paired with LC/APC cables; Insertion Loss rated below 0.2dB; Supports 9/125um fiber cores; Laser Optimized
