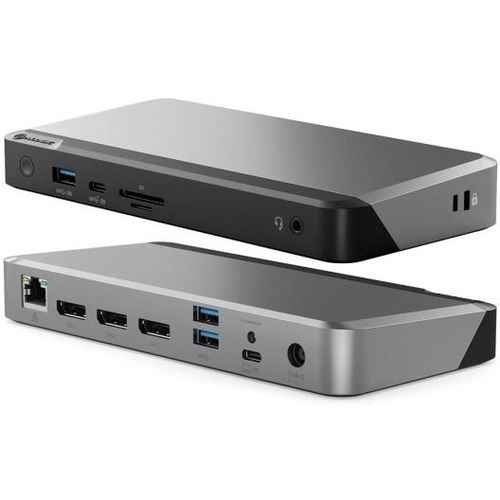

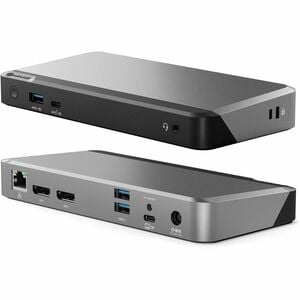

Alogic MX3 USB Type C Docking Station for Notebook/Smartphone/Monitor - Memory Card Reader - SD, microSD - 100 W - Black, Space Gray - 3 Displays Supported - 4K, 5K - 3840 x 2160 - 1 x USB 3.1 Type-C Ports - 3 x USB Type-A Ports - USB Type-A - USB Typ DUP
Alogic MX3 USB Type C Docking Station for Notebook/Smartphone/Monitor - Memory Card Reader - SD, microSD - 100 W - Black, Space Gray - 3 Displays Supported - 4K, 5K - 3840 x 2160 - 1 x USB 3.1 Type-C Ports - 3 x USB Type-A Ports - USB Type-A - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - DisplayPort - Wired
SIMPLIFIED CONNECTIVITY-The MX3 makes multi-display set ups simple. Featuring DP Alt Mode technology, it connects directly with up to three displays and multiple other accessories. No need to install drivers or software. Plug in and go.
SINGLE 5K DISPLAY WITH MAC-The MX3 is a powerful docking station for Mac users seeking to add a picture-perfect single display for their desk set up.
DUAL 4K DISPLAY WITH WINDOWS-Windows users can plug into the MX3 to run up to three ultra-polished external displays.
11 HIGH-PERFORMANCE PORTS- Port 1-USB-A 3.1 Gen 1 (5G) BC 1.2 & Apple Charging (Supports Smartphone charging).
Port 2- USB-C 3.1 Gen 2 (10G) BC 1.2 & Apple Charging (Supports Smartphone charging)
Port 3- Micro SD Card Reader (SD 4.0)
Port 4 -SD Card Reader (SD 4.0)
Port 5- 3.5mm TRRS Audio/Microphone Jack
Port 6- RJ45 Ethernet 1 Gbps
Port 7 -DisplayPort (DP1.4/DP++)
Port 8 -DisplayPort (DP1.4/DP++)
Part 9- DisplayPort (DP1.4/DP++)
Part 10- USB-A 3.1 Gen1 (5G)
Part 11- USB-A 3.1 Gen1 (5G)
| Maximum Power Supply Wattage | 100 W |
| Compatibility | Compatible with all computers with a USB-C port. |
| Brand Compatibility | Microsoft |
| Apple |
| Weight (Approximate) | 535 g |
| Height | 26.5 mm |
| Width | 190 mm |
| Depth | 90 mm |
| Product Color | Space Gray |
| Black |
| Device Supported | Notebook/Smartphone/Monitor |
| Connectivity Technology | Wired |
| Memory Card Supported | microSD |
| SD | |
| Memory Card Reader | Yes |
| Number of Displays Supported | 3 |
| Supported Resolutions | 3840 x 2160 |
| Screen Mode Supported | 4K |
| 5K |
| Product Type | Docking Station |
| Manufacturer Part Number | DUPRMX3-WW |
| Manufacturer Website Address | http://www.alogic.co |
| Manufacturer | Alogic |
| Product Model | MX3 |
| Product Name | MX3 Docking Station |
| Brand Name | Alogic |
| Host Interface | USB Type C |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 3 |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C 3.1 Gen 2 (10G) |
| Number of USB Type-A Ports | 3 |
| Number of USB 3.1 Type-C Ports | 1 |
| Number of USB 3.1 Gen 1 Type-A Ports | 3 |
| USB Type-A | Yes |
