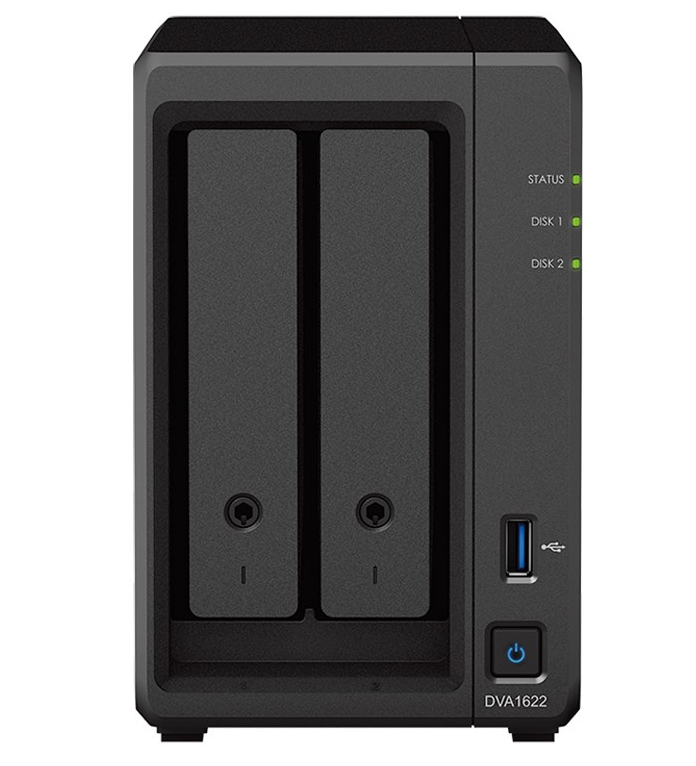

Synology DVA1622 Network Video Recorder 2bay DVA1622
SKU
397507
Brand
MPN
DVA1622
Warranty
Standard Manufacturer's Warranty
$1,543.00
Buy Now And Earn 1543 Reward Points!
Synology Network Video Recorder DVA1622 is a 2bay desktop recording server that gives home and small business user access to fast, smart, and accurate video surveillance powered by deep learning-based algorithms. Built-in automated event detection helps safeguard properties by detecting people, vehicles, or objects and alerting staff when self-configured rules or thresholds are breached and is backed by Synology's 3-year limited warranty.
Specification:
•CPU: Intel Atom J4125 quad-core burst up to 2.71Ghz
•RAM size : DDR4 6GB
•Compatible drive type : 3.5" SATA x 2 ( HDD not included )
•USB: 2 x USB 3.2 , 1 x HDMI
•Size (HxWxD) (mm) : 166x106x223 mm
•Weight:1.51 kg
•LAN: Gigabit (RJ45) x 1
•AC Input Power Voltage: 100V to 240V AC
•Power Frequency: 50/60 Hz, Single Phase
•Operating Temperature: 5°C-35°C
•Storage Temperature: -10°C-70°C
•Relative Humidity: 5%-95% RH
•Maximum
Specification:
•CPU: Intel Atom J4125 quad-core burst up to 2.71Ghz
•RAM size : DDR4 6GB
•Compatible drive type : 3.5" SATA x 2 ( HDD not included )
•USB: 2 x USB 3.2 , 1 x HDMI
•Size (HxWxD) (mm) : 166x106x223 mm
•Weight:1.51 kg
•LAN: Gigabit (RJ45) x 1
•AC Input Power Voltage: 100V to 240V AC
•Power Frequency: 50/60 Hz, Single Phase
•Operating Temperature: 5°C-35°C
•Storage Temperature: -10°C-70°C
•Relative Humidity: 5%-95% RH
•Maximum
| CPU | Intel Celeron J4125 (Quad-Core, 64-bit, 2.0 GHz base, up to 2.7 GHz burst) |
|---|---|
| GPU | Integrated Intel UHD Graphics 600 |
| SKU | DVA1622 |
| UPC | 846504004683 |
| Type | Deep Learning NVR / Surveillance NAS (diskless) |
| Brand | Synology |
| Model | DVA1622 |
| Notes | Device ships diskless; HDDs/SSDs must be purchased separately. License plate recognition on DVA1622 is only capable of recognizing plates on stationary vehicles (per Synology notes). Actual system capabilities may vary depending on system configuration, drive performance, number of features enabled, and additional workloads. |
| Ports | USB: 2 x USB 3.0 Type-A HDMI: 1 x HDMI (HDMI 2.0 reported — local 4K output for monitor/TV) |
| Power | BTU/hr: 67.96 BTU/hr (Access), 13.71 BTU/hr (HDD Hibernation) Power Supply: External 60 W AC adapter Power Frequency: 50/60 Hz, Single Phase AC Input Voltage: 100 V to 240 V AC Power Consumption: 19.93 W (Access), 4.02 W (HDD Hibernation) |
| Series | Deep Learning NVR |
| Weight | 1.51 kg |
| Network | LAN Ports: 1 x RJ-45 1 GbE Supported Network Protocols: [ "SMB1 (CIFS)", "SMB2", "SMB3", "NFSv3", "NFSv4", "NFSv4.1", "NFS Kerberized sessions", "iSCSI", "HTTP", "HTTPS", "FTP", "SNMP", "LDAP", "CalDAV" ] |
| Category | Physical Security |
| Warranty | 3-year hardware warranty (extendable to 5 years with Extended Warranty Plus; availability varies by region) |
| Drive Bays | 2 |
| Description | The Synology DVA1622 is a compact 2-bay Deep Learning NVR designed for home and small business video surveillance. Powered by an Intel Celeron J4125 quad-core CPU with integrated Intel UHD Graphics, and 6 GB DDR4 (2 GB soldered + 4 GB DIMM), the DVA1622 runs Synology Surveillance Station with onboard deep video analytics for people/vehicle detection, license plate recognition, face recognition, people/vehicle counting, intrusion detection and more. It includes eight surveillance licenses by default and supports up to 16 IP cameras (additional licenses required beyond the included eight). The unit provides local HDMI output for direct monitoring, two USB 3.0 ports, a single 1 GbE network port, and two internal SATA drive bays (diskless). RAID 0/1, Synology Hybrid RAID, JBOD and Basic volumes are supported. The DVA1622 is intended for deployments that need AI-powered analytics at the edge with easy local or remote management via Surveillance Station and DSM. |
| Form Factor | 2-bay desktop NVR |
| Memory Type | DDR4 non-ECC |
| RAID Support | Synology Hybrid RAID (SHR) Basic JBOD RAID 0 RAID 1 |
| Sub-Category | Video Surveillance |
| Product Title | Synology DVA1622 16-Channel 2-Bay Deep Learning NVR (Diskless, 6GB RAM) |
| Storage Notes | Compatible drive type indicates drives tested by Synology for compatibility; not an indicator of maximum connection speed of each bay. |
| Certifications | FCC CE BSMI VCCI RCM UKCA EAC KC RoHS compliant |
| Memory Slot(s) | 1 x DDR4 SODIMM (one slot; 2 GB soldered + 1 DIMM slot) |
| Cooling / Noise | System Fan: 1 x 92 mm (reported) Noise Level: 18.4 dB(A) (reported) Fan Speed Modes: [ "Cool Mode", "Quiet Mode", "Full-Speed Mode" ] |
| Memory Installed | 6 GB DDR4 non-ECC (2 GB soldered + 4 GB DIMM) |
| Package Contents | Main unit x1 Accessory pack (screws, etc.) x1 AC power adapter (external) x1 AC power cord x1 RJ-45 LAN cable x1 Quick Installation Guide x1 |
| Relative Humidity | 5% to 95% RH |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Hot-Swappable Drives | Yes (2 bays) |
| Included Accessories | Accessory pack AC power adapter and cord RJ45 LAN cable Quick Installation Guide |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Supported Drive Types | 3.5" SATA HDD 2.5" SATA HDD/SSD |
| Audio Codecs Supported | AMR G.711 G.726 PCM |
| Dimensions (H x W x D) | 166 mm x 106 mm x 223 mm |
| Video Codecs Supported | H.264 H.264+ H.265 H.265+ MJPEG MPEG-4 MxPEG (note: MxPEG not supported by Deep Video Analytics tasks) |
| Maximum Memory (device) | 6 GB (device ships with 6 GB; Synology-verified configuration) |
| Manufacturer Part Number | DVA1622 |
| Graphics Clock (reported) | 350 MHz start, peak up to 750 MHz (reported in review transcript) |
| Maximum Cameras Supported | 16 |
| Maximum Single Volume Size | 108 TB |
| RAID Migration / Expansion | Basic to RAID 1; SHR and RAID 1 support volume expansion with larger HDDs; SHR supports adding a drive |
| Surveillance Software / OS | Synology Surveillance Station 9.x (bundled capabilities) running on DSM 7.x (device supports Surveillance Station features and centralized CMS) |
| DVA Task Concurrency / Limits | Note: Actual capabilities depend on system configuration, drives, enabled features and additional workloads. People Counting: up to 2 concurrent tasks Face Recognition: up to 1 concurrent task Vehicle Counting: up to 2 concurrent tasks Maximum Concurrent DVA Tasks: 2 Maximum Face Database Registrations: 10000 People and Vehicle Detection (with LPR): up to 2 concurrent tasks Intrusion Detection (object detection in zone): up to 2 concurrent tasks |
| File System (External Drives) | Btrfs ext4 ext3 FAT NTFS HFS+ exFAT |
| File System (Internal Drives) | Btrfs ext4 |
| Maximum Raw Capacity (2 bays) | 36 TB (2 x 18 TB, official) |
| Supported Cameras / Protocols | Supports over 8,300 cameras and ONVIF Profile S/T/G and Synology surveillance device protocol (camera compatibility list maintained by Synology) |
| Maximum Internal Volume Number | 64 |
| Official Max Single Drive Size | 18 TB (official support per Synology) |
| Supported Languages (interface) | English Deutsch Français Italiano Español Dansk Norsk Svenska Nederlands Русский Polski Magyar Português (Brasil) Português (Europeu) Türkçe Český ภาษาไทย 日本語 한국어 繁體中文 简体中文 Brazilian Portuguese Czech |
| Default Included Camera Licenses | 8 |
| Optional / Recommended Accessories | Synology Enterprise Series 3.5" SATA HDD: HAT5300 Series Surveillance device license pack (additional camera licenses) |
| Deep Video Analytics (DVA) / AI Features | People detection Vehicle detection (license plate recognition for stationary vehicles only — per Synology) License plate recognition Face recognition People counting Vehicle counting Intrusion detection Face covering detection Congestion / crowd alerts Automation rules and notifications Map-supported alerts, multi-site management and granular delegation (Surveillance Station features) |
| Max Local Users / Groups / Shared Folders | Max Local Groups: 256 Max Shared Folders: 512 Max Local User Accounts: 2048 |
| Suggested Maximum IP Cameras and Total FPS (H.264, tested figures) | 3M: 16 channels, 160 FPS 4K: 8 channels, 80 FPS 5M: 12 channels, 120 FPS 720p: 16 channels, 480 FPS 1080p: 16 channels, 285 FPS Test Notes: Figures tested with device fully populated with drives and under continuous recording setup; actual performance may vary. |
| Suggested Maximum IP Cameras and Total FPS (H.265, tested figures) | 3M: 16 channels, 190 FPS 4K: 8 channels, 80 FPS 5M: 12 channels, 120 FPS 720p: 16 channels, 480 FPS 1080p: 16 channels, 350 FPS |
