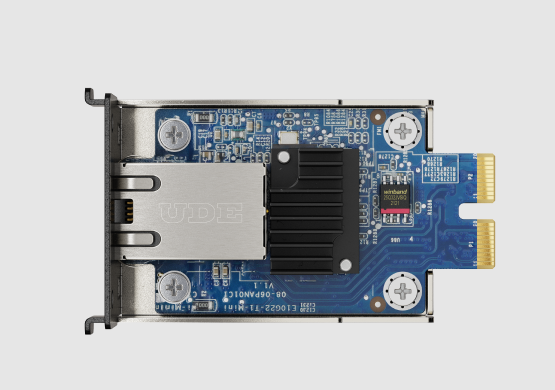

Synology E10G22-T1 Mini 10Gbe Rj-45, Single Port. E10G22-T1-Mini
SKU
384150
Brand
MPN
E10G22-T1-Mini
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$234.00
Buy Now And Earn 234 Reward Points!
Synology E10G22-T1 Mini 10Gbe RJ-45, single port. Compatitble for 10Gbe, 5 Gbe;2.5Gbe, compatible with RS422+.
| MPN | E10G22-T1-MINI |
|---|---|
| SKU | E10G22-T1-Mini |
| UPC | 0846504004485 |
| GTIN | 04711174724482 |
| Type | Network upgrade module / NIC (proprietary mini plug-in) |
| Brand | Synology |
| Color | Black |
| Model | E10G22-T1-Mini |
| Notes | Proprietary mini adapter design; not compatible with conventional/standard PCIe add-in cards. Installation requires a Synology model with the dedicated Network Upgrade Slot. |
| Ports | 1 x RJ-45 (10GBase-T) |
| Weight | 3.2 oz |
| Heatsink | Onboard heatsink (visible) |
| Humidity | 5% to 95% RH |
| Warranty | 3-year manufacturer warranty |
| Interface | PCI Express 3.0 x2 |
| Standards | IEEE 802.3an (10GBASE-T) IEEE 802.3bz (NBASE-T 2.5/5 Gbps) IEEE 802.3ab (1000BASE-T) IEEE 802.3u (100BASE-TX) IEEE 802.3x (Flow Control) |
| Controller | Not specified |
| Description | The Synology E10G22-T1-Mini is a compact, proprietary network upgrade module that adds a single 10GbE RJ-45 port to compatible Synology systems via the dedicated Network Upgrade Slot. It supports auto-negotiation across 10/5/2.5/1 Gbps and 100 Mbps networks, features an onboard heatsink and support for jumbo frames (9K), and uses a PCI Express 3.0 x2 interface for data transfer. Designed for easy installation in Synology compact enclosures (examples: DS1522+, RS422+), it provides high-bandwidth connectivity for heavier workloads while remaining optimized for Synology systems. |
| Form Factor | Proprietary mini/micro plug-in module (horizontal deployment); not a standard PCIe card |
| Jumbo Frames | Up to 9K |
| Cabling Types | 10Base-T 5GBase-T 2.5GBase-T 1000Base-T 100Base-TX |
| Product Title | Synology E10G22-T1-Mini 10GbE RJ-45 Network Upgrade Module (1-Port, PCIe 3.0 x2) |
| Compatible With | Synology systems equipped with a dedicated Network Upgrade Slot (compact Synology enclosures). Examples cited: DS1522+, RS422+. |
| Auto Negotiation | Yes |
| Supported Speeds | 10 Gbps 5 Gbps 2.5 Gbps 1 Gbps 100 Mbps |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimensions (L x W x H) | 2.98 in x 1.79 in x 1.04 in |
| Regulatory / Protocols | TCP/IP UDP/IP |
| Data Transfer Rate (Max) | 10 Gbps |
Synology E10G22-T1 Mini 10Gbe RJ-45, single port.
