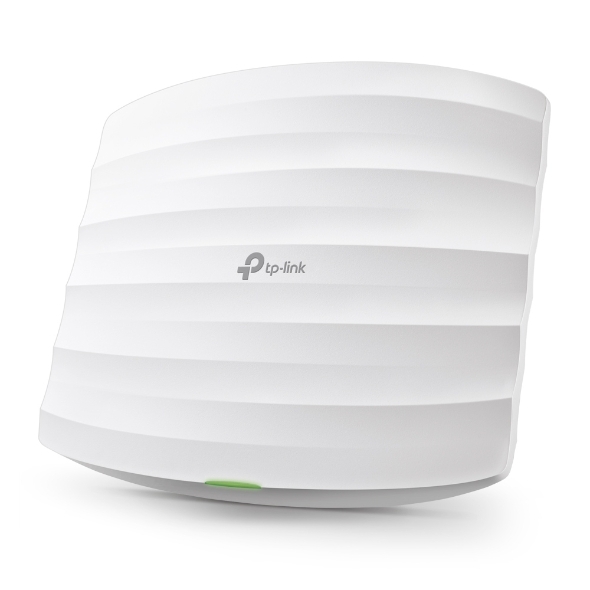

TP-Link AC1350 Ceiling Mount Dual-Band Wi-Fi Access Point, 1× Gigabit RJ45 Port, 450 Mbps At 2.4 GHz + 867 Mbps At 5 GHz - (EAP223), 5-Year Wty EAP223
SKU
395383
Brand
MPN
EAP223
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$119.00
Buy Now And Earn 119 Reward Points!
"TP-Link AC1350 Ceiling Mount Dual-Band Wi-Fi Access Point
PORT: 1× Gigabit RJ45 Port
SPEED: 450 Mbps at 2.4 GHz + 867 Mbps at 5 GHz
FEATURE: 802.3af PoE and Passive PoE (Power Adapter is not included), 3× Internal Antennas, Mesh, Seamless Roaming, MU-MIMO, Band Steering, Beamforming, Load Balance, Airtime Fairness, Centralized Management by Omada SDN Controller, Omada App"
PORT: 1× Gigabit RJ45 Port
SPEED: 450 Mbps at 2.4 GHz + 867 Mbps at 5 GHz
FEATURE: 802.3af PoE and Passive PoE (Power Adapter is not included), 3× Internal Antennas, Mesh, Seamless Roaming, MU-MIMO, Band Steering, Beamforming, Load Balance, Airtime Fairness, Centralized Management by Omada SDN Controller, Omada App"
| UPC | 840030704277 |
|---|---|
| Brand | TP-Link |
| Color | White |
| Model | EAP223 |
| Notes | Some listings refer to aggregate marketing label AC1350 (450+867). Some listings specify hardware version V2. PoE adapter/AC adapter generally not included. |
| Series | EAP223 |
| Antenna | 3 × internal omnidirectional antennas |
| Mounting | Ceiling or wall mount (mounting kits included) |
| Data Rates | 5 GHz: up to 867 Mbps 2.4 GHz: up to 450 Mbps Aggregate: 1317 Mbps |
| Dimensions | mm: 205.5 × 181.5 × 37.1 mm inches: 8.1 × 7.1 × 1.5 in |
| Management | Omada SDN integration (OC300/OC200/hardware controller, software controller, cloud controller) Omada app Zero-Touch Provisioning (ZTP) Web management (HTTP/HTTPS) SSH SNMP v1/v2c Syslog (local/remote) Multi-site and L3 management Management VLAN |
| Description | TP-Link EAP223 is an AC1350 dual-band ceiling-mount access point designed for business and high-density home deployments. It delivers up to 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz (1317 Mbps aggregate) using 802.11ac Wave 2 MU-MIMO and supports Band Steering, Airtime Fairness and Beamforming for optimized performance. Integrated with the Omada SDN platform, EAP223 supports Zero-Touch Provisioning, centralized cloud management (Omada app, OC200/OC300, software/cloud controller), seamless roaming and mesh (when using Omada controllers). Flexible power options include 802.3af/at PoE and Passive 48V PoE (adapter not included); 12V DC input is also supported on some configurations. Ceiling- or wall-mountable with included kits, it provides Gigabit Ethernet connectivity, captive-portal guest authentication (SMS/Facebook/Voucher), robust wireless security (802.1X, MAC filtering, client isolation, rogue AP detection) and enterprise management features (VLAN, SNMP, Syslog, SSH, HTTP/HTTPS). Package includes the EAP223 AP, mounting kits and installation guide. |
| Antenna Gain | 5 GHz: 5 dBi 2.4 GHz: 4 dBi |
| Product Title | TP-Link EAP223 AC1350 Dual-Band Gigabit Ceiling Mount Access Point (Omada SDN, PoE) |
| Certifications | CE FCC RoHS |
| Ethernet Ports | 1 × Gigabit Ethernet (RJ-45) |
| Transmit Power | CE: ≤20 dBm (2.4 GHz, EIRP); ≤23 dBm (5 GHz, EIRP) FCC: ≤24 dBm (2.4 GHz); ≤22 dBm (5 GHz) |
| Wi-Fi Standard | Wi‑Fi 5 (802.11ac Wave 2) |
| Frequency Bands | Dual-Band (2.4 GHz & 5 GHz) |
| Supported SSIDs | Up to 15 SSIDs (8 for 2.4 GHz, 7 for 5 GHz) |
| Hardware Version | V2 (where specified) |
| Package Contents | TP-Link EAP223 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point Mounting kits Installation guide |
| Storage Humidity | 5–90% RH, non‑condensing |
| PoE/Power Options | 802.3af/at PoE; Passive PoE 48V (adapter not included); optional 12V DC (12V/1.5A) on some listings |
| Power Consumption | EU: 9.7 W US: 12.1 W |
| Wireless Features | MU-MIMO (Wave 2) Band Steering Airtime Fairness Beamforming Omada Mesh (requires Omada controller) Seamless Roaming (requires Omada controller) WMM (QoS) Channel Auto-selection Transmit Power Control Rate Limiting and Scheduling |
| Wireless Security | Captive portal (SMS/Facebook/Voucher authentication) 802.1X support Wireless MAC filtering Client isolation SSID-to-VLAN assignment Rogue AP detection |
| Concurrent Clients | 220+ (listed) |
| Operating Humidity | 10–90% RH, non‑condensing |
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Storage Temperature | -40–70 °C (-40–158 °F) |
| Included Accessories | Mounting kits, installation guide (PoE adapter not included) |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Coverage (manufacturer listing) | Approx. 115 m² (1,250 ft²) (listed) |
TP-Link AC1350 Ceiling Mount Dual-Band Wi-Fi Access Point, 1× Gigabit RJ45 Port, 450 Mbps at 2.4 GHz + 867 Mbps at 5 GHz - (EAP223), 5-Year WTY
