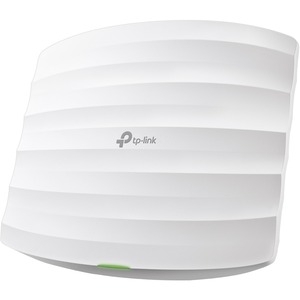

TP-Link AC1200 Wireless Dual Band Gigabit Ceiling Mount Access Point, Qualcomm, 300Mbps At 2.4GHz + 867Mbps At 5GHz, 802.11a/b/g/n/ac,-(EAP225) EAP225
SKU
413804
Brand
MPN
EAP225
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$133.00
Buy Now And Earn 133 Reward Points!
TP-Link AC1200 Wireless Dual Band Gigabit Ceiling Mount Access Point-(EAP225), Qualcomm, 300Mbps at 2.4GHz + 867Mbps at 5GHz, 802.11a/b/g/n/ac, Beamforming, 1 Gigabit LAN, 802.3af PoE Supported, Centralized Management, Captive Portal, Multi-SSID, 4 internal antennas, Ceiling/Wall Mount
| Brand | TP-Link |
|---|---|
| Color | White |
| Model | EAP225 |
| Ports | 1 × Gigabit Ethernet (RJ-45) (PoE PD support) |
| MU-MIMO | Yes (Wave 2 MU-MIMO) |
| Antennas | Internal antennas (listings reference 3 internal omni antennas for ceiling model); outdoor variant uses dedicated/professional antennas (high gain) per listing |
| Mounting | Ceiling / Wall mount (mounting kits included); outdoor variant supports pole-mount/wall-mount |
| Beamforming | Yes |
| Description | TP-Link Omada EAP225 series are dual-band, MU‑MIMO wireless access points designed for business-class Wi‑Fi with centralized management via the Omada controller (hardware, software or cloud) or standalone operation. Features across the series include 802.11ac Wave 2 support, MU‑MIMO, band steering, airtime fairness, beamforming, seamless roaming, Omada Mesh, multiple SSIDs (up to 16, 8 per band), captive portal/guest authentication and flexible PoE power options (802.3af/at and passive 24V PoE). The EAP225-Outdoor provides a weatherproof enclosure and long-range coverage for outdoor deployments; indoor/ceiling variants (EAP225 V2/V3) offer ceiling/wall mounting with compact designs. Packages commonly include mounting kits, an installation guide and, for some SKUs, a passive PoE adapter. |
| Form Factor | Ceiling/Wall mount (indoor) and Pole/Wall mountable (outdoor) |
| PoE / Power | Supports 802.3af/at PoE and 24V Passive PoE (passive PoE adapter reported included with some packages); Max power consumption reported ~10.5 W (EU) / ~12.6 W (US) on some listings |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Type | Wireless Access Point |
| Band Steering | Yes |
| Product Title | TP-Link Omada EAP225 Series Dual-Band Wireless Access Point (EAP225 / EAP225-Outdoor / EAP225 V2 / V3) |
| Model Variants | { "Common Title": "EAP225-Outdoor (AC1200)", "Variant Name": "EAP225-Outdoor", "Environment/Use": "Indoor/Outdoor - weatherproof enclosure", "Range (reported)": "Up to 200m+ (2.4 GHz), 300m+ (5 GHz)", "Warranty (reported)": "Limited Lifetime (some listings) / 2 Year (other listings)", "Wireless Throughput": "Up to 1200 Mbps (AC1200, 2x2 MIMO)", "Operating Temperature": "-30 to 70 °C (-22 to 158 °F)" } { "Common Title": "EAP225 V2 (Ceiling/Wall mount)", "Variant Name": "EAP225 V2", "Environment/Use": "Indoor ceiling/wall mount", "Wireless Throughput": "Varies by listing; part of EAP225 family" } { "Common Title": "EAP225 V3 (AC1350 Ceiling Mount)", "Variant Name": "EAP225 V3", "Environment/Use": "Indoor ceiling/wall mount", "Wireless Throughput": "AC1350 (450 Mbps on 2.4 GHz + 867 Mbps on 5 GHz = ~1317 Mbps reported by some listings)" } |
| Frequency Bands | Dual-Band (2.4 GHz and 5 GHz) |
| Airtime Fairness | Yes |
| Recommended Uses | Indoor (ceiling/wall) or Outdoor (weatherproof model) wireless access point deployments; business-class Wi‑Fi |
| Seamless Roaming | Yes (supported) |
| Security Features | Captive Portal Authentication, Guest network/authentication options (SMS/Voucher/Facebook Wi‑Fi where listed), Access control, MAC address filtering, Wireless client isolation, SSID-to-VLAN mapping, Rogue AP detection, 802.1X support |
| Weight (reported) | Approx. 5.9 ounces (outdoor listing) |
| Compatible Devices | PCs and Wi‑Fi capable devices; designed for small/medium business and residential deployments |
| Notes / Variations | This record consolidates multiple EAP225 family listings (EAP225-Outdoor, EAP225 V2, EAP225 V3). Specific features, throughput ratings (AC1200 vs AC1350), environmental ranges, included accessories and warranty terms vary by model/version and by listing. Refer to the specific SKU/variant (EAP225-Outdoor, EAP225 V2, EAP225 V3) for exact specifications. |
| Wireless Functions | Multiple SSIDs (up to 16, 8 per band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control, QoS (WMM), Load Balance, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics |
| Wireless Standards | IEEE 802.11ac (Wave 2), backward compatible with 802.11a/b/g/n |
| Warranty (reported) | Listings vary (Limited Lifetime reported in some listings; 2 Year limited warranty reported in other listings) |
| Dimensions (reported) | EAP225-Outdoor: 8.46 x 1.81 x 1.05 inches (approx.); other listings: 8.5 x 1.8 x 1.1 in EAP225 (ceiling): Approx. 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm) reported for ceiling model |
| Omada SDN / Management | Omada Cloud-Based Controller, Omada Hardware Controllers (OC200/OC300), Omada Software Controller; Zero-Touch Provisioning (ZTP) supported where listed; Omada app and centralized cloud management supported |
| Environmental (reported) | Storage Humidity: 5–90% RH non-condensing Operating Humidity: 10–90% RH non-condensing Storage Temperature: -40 to 70 °C (-40 to 158 °F) EAP225-Outdoor Operating Temperature: -30 to 70 °C (-22 to 158 °F) EAP225 (indoor) Operating Temperature: 0 to 40 °C (32 to 104 °F) |
| Certifications (reported) | CE, FCC, RoHS (listed on some variants) |
| Transmit Power (reported) | CE (examples from listings): ≈ <=20 dBm (2.4 GHz, EIRP); <=23 dBm (5 GHz, EIRP) (values vary by listing) FCC (examples from listings): ≈ <=23–24 dBm (2.4 GHz); <=22 dBm (5 GHz) (values vary by listing) |
| Package Content (reported) | Access Point (EAP225 variant), Passive PoE adapter (where listed), Power cord (where listed), Mounting kits, Installation guide |
| Country of Origin (reported) | China |
| Power Consumption (reported) | Approximately 10.5 W (some listings); up to 12.6 W reported for certain regions/variants |
| Included Accessories (reported) | Mounting kits, Installation guide, Passive PoE adapter (reported in some packages), Power cord (reported in some packages) |
| Management Protocols & Features | Web GUI (HTTP/HTTPS), SNMP v1/v2c, SSH, Local/Remote Syslog, Multi-site management, Management VLAN, Email alerts, LED on/off control, MAC access control |
| Maximum Data Rate (per variant) | EAP225 V3: Reported as AC1350 (450 Mbps @2.4 GHz + 867 Mbps @5 GHz = ~1317 Mbps) EAP225-Outdoor: Up to 1200 Mbps (combined) |
TP-Link AC1200 Wireless Dual Band Gigabit Ceiling Mount Access Point, Qualcomm, 300Mbps at 2.4GHz + 867Mbps at 5GHz, 802.11a/b/g/n/ac,-(EAP225)
