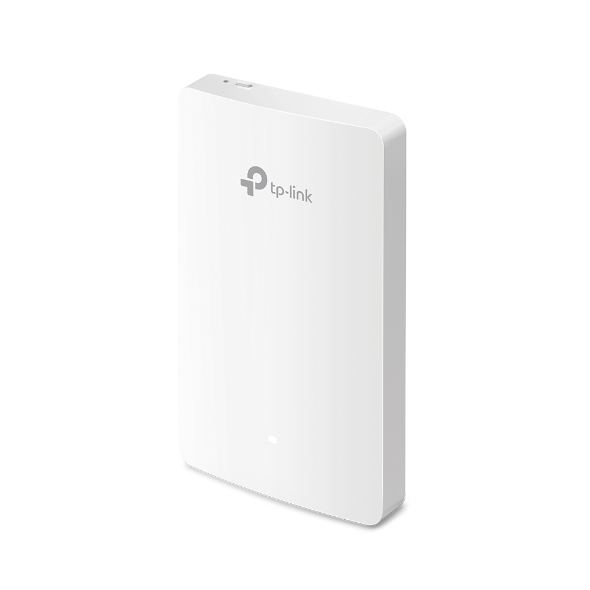

TP-Link AC1200 Dual Band Gigabit Wall-Plate Access Point, MediaTek, 867Mbps at 5GHz + 300Mbps at 2.4GHz, 4 10/100/1000Mbps LAN, 5- Year WTY EAP235-Wall
SKU
393642
Brand
MPN
EAP235-Wall
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$103.00
Buy Now And Earn 103 Reward Points!
| HARDWARE FEATURES | |
|---|---|
| Interface | Uplink: 10/100/1000 Mbps Ethernet Port*1 Downlink: 10/100/1000 Mbps Ethernet Port*3 (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13W.) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/802.3at PoE |
| Power Consumption | 9.8 watts /24.4 watts (PoE Out Included) |
| Dimensions ( W x D x H ) | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) |
| Dimensions | 143 × 86 × 20mm (5.6 × 3.4 × 0.8 in) |
| Antenna | 2 Dual-Band Antennas 2.4GHz: 2*4dBi 5GHz: 2*4dBi |
| Mounting | Wall Plate Mounting |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbps |
| Wireless Functions | 16 SSIDs（Up to 8 SSIDs on each band） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO Band Steering Beamforming Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Local LAN port based VLAN Rogue AP Detection 802.1X Support 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise |
| Transmission Power | • CE: ≤20 dBm (2.4 GHz, EIRP) ≤23 dBm (5 GHz, EIRP) • FCC: ≤21 dBm (2.4 GHz) ≤21 dBm (5 GHz) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall • Installation Guide • Mounting Screw |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
