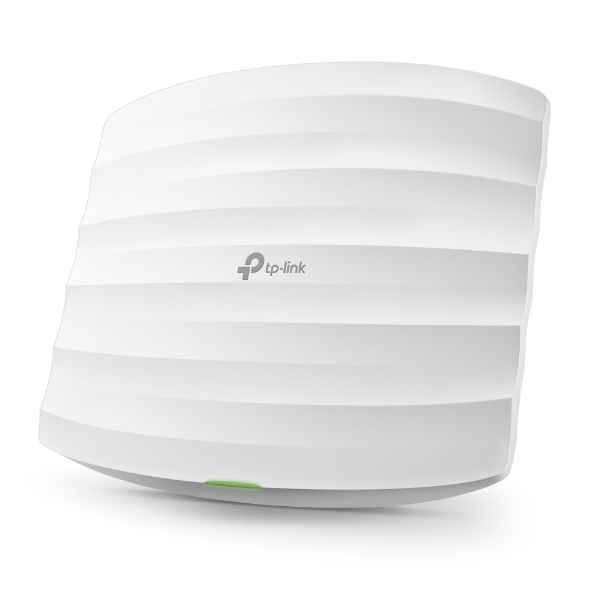

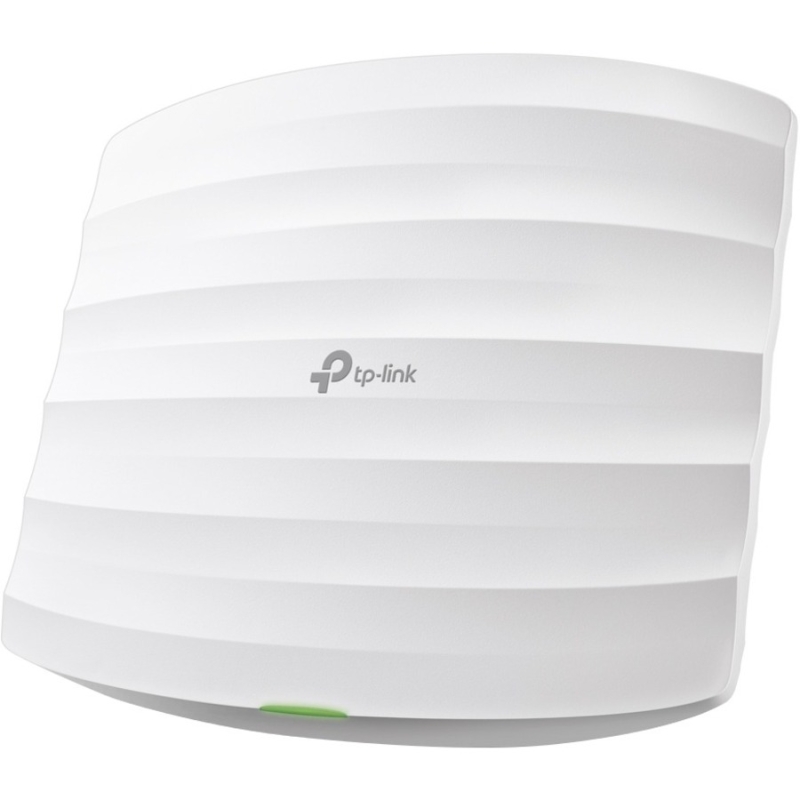

TP-Link AC1750 Wireless Dual Band Ceiling Mount Access Point, 2.4GHz 450Mbps & 5GHz 1300Mbps, Qca Chipset ,1x Ge, 802.3at PoE, 5-Year Wty-(Eap245) EAP245
SKU
392406
Brand
MPN
EAP245
Warranty
Standard Manufacturer's Warranty
$163.00
Buy Now And Earn 163 Reward Points!
"TP-Link AC1750 Wireless Dual Band Ceiling Mount Access Point-(EAP245)
-2.4GHz 450Mbps & 5GHz 1300Mbps
-QCA Chipset
-1 GE, 802.3at PoE
-Ceiling or Wall Mounting
-Centralized Management
"
-2.4GHz 450Mbps & 5GHz 1300Mbps
-QCA Chipset
-1 GE, 802.3at PoE
-Ceiling or Wall Mounting
-Centralized Management
"
| SKU | EAP245 |
|---|---|
| Brand | TP-Link |
| Model | EAP245 |
| Ports | 1 × Gigabit RJ45 (PoE-in) 1 × Gigabit RJ45 (LAN passthrough) |
| Weight | 13.4 ounces (approx.) |
| Antenna | Gain: 4 dBi (reported) Type: Internal Count: 3 |
| MU-MIMO | Wave 2 MU-MIMO |
| Category | Networking |
| Description | The TP-Link Omada EAP245 is an AC1750 (Wi‑Fi 5, 802.11ac Wave2) business-class dual-band access point delivering up to 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz (1750 Mbps total). Designed for flexible deployments, it supports 802.3af/802.3at PoE and 48V passive PoE, has dual Gigabit Ethernet ports (one PoE-in, one passthrough), and a low‑profile ceiling/wall-mount form factor. The EAP245 integrates with the Omada SDN platform and Omada cloud/app for centralized management, zero-touch provisioning, and remote monitoring. Enterprise features include MU-MIMO, Beamforming, Band Steering, Airtime Fairness, seamless roaming, Mesh support, captive portal/guest authentication, management VLANs, and support for up to 16 SSIDs. Hardware versions reported include V3 and V4. |
| PoE Support | 802.3af (PoE) 802.3at (PoE+) 48V Passive PoE |
| Key Features | Seamless roaming Mesh Wi-Fi support Band Steering Airtime Fairness Beamforming Load balancing Captive portal / guest authentication (SMS/Facebook/Voucher options reported) Management VLAN support Up to 16 SSIDs |
| Sub-Category | Wireless Networking |
| Product Title | TP-Link Omada EAP245 AC1750 Dual-Band Gigabit Ceiling/Wall Mount Access Point |
| Certifications | FCC RoHS |
| Transmit Power | 25–27 dBm (reported) |
| Wireless Speed | 5 GHz: 1300 Mbps Total: 1750 Mbps 2.4 GHz: 450 Mbps |
| Frequency Bands | Dual-Band (2.4 GHz / 5 GHz) |
| Operation Modes | Access Point Bridge |
| Country of Origin | China (reported) |
| Power Consumption | 12.3 W (reported) |
| Wireless Security | WEP WPA WPA-PSK WPA2-Enterprise WPA2-PSK |
| Wireless Standard | 802.11ac (Wi‑Fi 5, Wave2) |
| Max SSIDs Supported | 16 |
| Supported Protocols | Gigabit Ethernet 802.1x Auto-MDIX/MDI |
| Dimensions (L×W×H) | 8.06 × 7.15 × 1.46 inches (approx.) |
| Management & Controller | Omada SDN integration (Omada Hardware Controller, Omada Software Controller, Omada Cloud Controller) Omada cloud management and Omada mobile app Zero-Touch Provisioning (ZTP) Free EAP Controller software (on-premises) |
| Mobile App Compatibility | Omada (Android & iOS) |
| Form Factor / Mount Options | Ceiling mountable Wall mountable |
| Included Components (reported) | Mounting kit Installation guide Power cord Gigabit Passive PoE adapter (reported in some packages — varies by seller/package) |
| Model Variants / Hardware Versions | EAP245 V3 EAP245 V4 |
| Wireless Communication Standards Supported | 802.11a 802.11b 802.11g 802.11n 802.11ac |
| Environmental / Operating Conditions (reported) | Operating Humidity: 10% to 90% (non-condensing) Operating Temperature: 0 to 40°C (32 to 72°F) |
TP-Link AC1750 Wireless Dual Band Ceiling Mount Access Point, 2.4GHz 450Mbps & 5GHz 1300Mbps, QCA Chipset ,1x GE, 802.3at PoE, 5-Year WTY-(EAP245)
