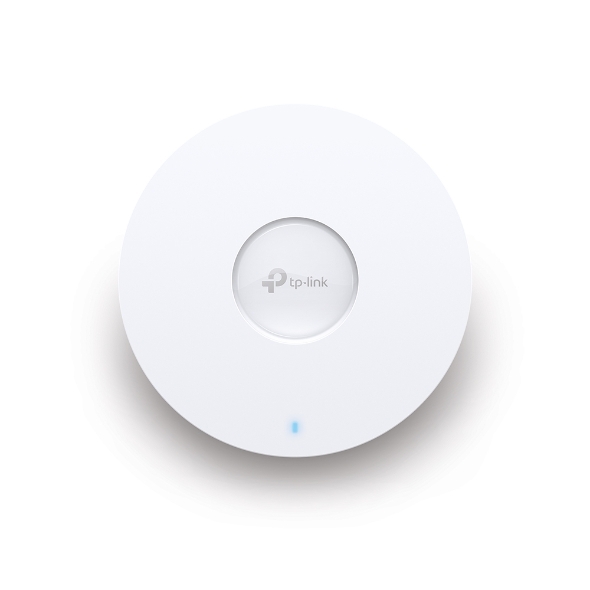

TP-Link AX1800 Ceiling Mount Dual-Band Wi-Fi 6 Access Point, 1x Gigabit RJ45 Port, 574Mbps At 2.4 GHz + 1201 Mbps At 5 GHz, 5-Year Wty - (EAP610) EAP610
SKU
393641
Brand
MPN
EAP610
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$186.00
Buy Now And Earn 186 Reward Points!
"TP-Link AX1800 Ceiling Mount Dual-Band Wi-Fi 6 Access Point
PORT:1 Gigabit RJ45 Port
SPEED:574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz
FEATURE: 802.3at POE and 12V DC, 4×Internal Antennas, MU-MIMO, Seamless Roaming, Band Steering, Beamforming, Load Balance, Airtime Fairness, Centralized Management by Omada SDN Controller, Omada App"
PORT:1 Gigabit RJ45 Port
SPEED:574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz
FEATURE: 802.3at POE and 12V DC, 4×Internal Antennas, MU-MIMO, Seamless Roaming, Band Steering, Beamforming, Load Balance, Airtime Fairness, Centralized Management by Omada SDN Controller, Omada App"
| QAM | 1024-QAM |
|---|---|
| SKU | EAP610 |
| Brand | TP-Link |
| Color | White |
| Model | EAP610 |
| Notes | Some sources reference an outdoor variant named EAP610-Outdoor (IP67) which is a separate model; this record is for the EAP610 ceiling/wall-mount AX1800 access point. |
| Ports | 1 x Gigabit Ethernet (RJ-45) (supports IEEE 802.3at PoE and Passive PoE) |
| Weight | Approximately 0.9 lb |
| Antennas | Gain: { "5 GHz": "2 x 5 dBi", "2.4 GHz": "2 x 4 dBi" } Type: Internal omni-directional |
| Security | WPA-Personal/Enterprise WPA2-Personal/Enterprise WPA3-Personal/Enterprise WEP 802.1X authentication Captive portal Wireless MAC address filtering Wireless isolation between clients SSID to VLAN mapping Rogue AP detection |
| Dimensions | 160 mm × 160 mm × 33.6 mm (Φ160 mm × 33.6 mm) / 6.3 × 6.3 × 1.3 in |
| Management | SNMP: v1, v2c, v3 Other: [ "Zero-touch provisioning (ZTP)", "Multi-site management", "Management VLAN", "LED on/off control", "Email alerts" ] Logging: Local/Remote syslog Cloud Managed: Yes (Omada Cloud via Omada app or Omada controllers) Local Management: Web UI (HTTP/HTTPS), SSH |
| Description | TP-Link Omada EAP610 is an AX1800 Wi‑Fi 6 access point designed for ceiling or wall installation in business and high-density home environments. It delivers simultaneous dual-band speeds (up to 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz; total 1775 Mbps), supports OFDMA, MU‑MIMO and 1024‑QAM for higher network efficiency, and provides seamless roaming and Omada Mesh for extended coverage. The unit is cloud-manageable via the Omada app, software or hardware controllers (OC200/OC300) and supports centralized management, zero-touch provisioning and multi-site management. Power options include 802.3at PoE+, passive PoE and included DC adapter. Package typically includes the access point, power adapter, ceiling/wall mounting kits and installation guide. |
| Form Factor | Ceiling / wall mountable |
| MIMO / OFDMA | OFDMA, MU‑MIMO, 4x longer OFDM symbol |
| SSID Support | Up to 16 SSIDs (multiple SSIDs per band) |
| Wi-Fi Rating | AX1800 (1775 Mbps aggregate) |
| Max Data Rate | 5 GHz: Up to 1201 Mbps Total: Up to 1775 Mbps 2.4 GHz: Up to 574 Mbps |
| Power Options | 802.3at PoE+ 48 V Passive PoE 12 V / 1.5 A DC (adapter included) |
| Product Title | TP-Link Omada EAP610 AX1800 Ceiling-Mount Wi‑Fi 6 Access Point |
| Model Variants | EAP610 EAP610_V2 EAP610 V3 |
| Product Family | Omada |
| Transmit Power | CE: <20 dBm (2.4 GHz EIRP); <23 dBm (5 GHz band1/2 EIRP); <25 dBm (5 GHz band3). FCC: <25 dBm (2.4 GHz & 5 GHz) |
| Wi-Fi Standard | Wi‑Fi 6 (802.11ax); backward compatible with 802.11ac/n/g/b/a |
| Frequency Bands | 2.4 GHz 5 GHz |
| Power Consumption | EU: 13.7 W (PoE), 12.3 W (DC) US: 14.2 W (PoE), 12.8 W (DC) |
| Wireless Features | Seamless roaming (fast roaming) Omada Mesh Band steering Beamforming Airtime fairness Load balancing Rate limiting Wireless scheduler |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| Included Accessories | Power adapter Ceiling/wall mounting kits (including junction/plate mounting) Installation guide |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Compliance & Certifications | CE FCC RoHS |
| Maximum Ratings & Protections | Transmit Power Control (TPC) 15KV ESD protector (reported on some variants) Surge/lightning protection (variant dependent) |
TP-Link AX1800 Ceiling Mount Dual-Band Wi-Fi 6 Access Point, 1x Gigabit RJ45 Port, 574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz, 5-Year WTY - (EAP610)
