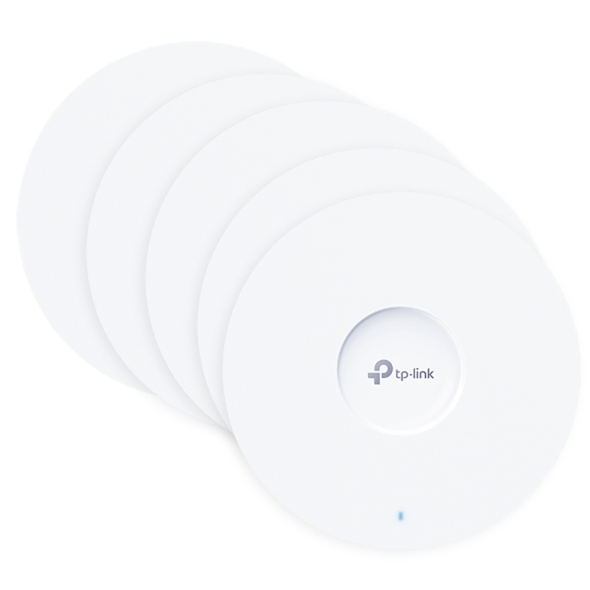

TP-Link AX1800 Ceiling Mount Dual-Band Wi-Fi 6 Access Point, 1× Gigabit RJ45 Port, 574Mbps At 2.4 GHz + 1201 Mbps At 5 GHz, 5-Year Wty - (EAP613) EAP613
SKU
394273
Brand
MPN
EAP613
Warranty
Standard Manufacturer's Warranty
$182.00
Buy Now And Earn 182 Reward Points!
"TP-Link AX1800 Ceiling Mount Dual-Band Wi-Fi 6 Access Point-(EAP613)
PORT:1× Gigabit RJ45 Port
SPEED:574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz
FEATURE: 802.3at POE and 12V DC (Power Adapter is not included), 2×Internal Antennas, MU-MIMO, Seamless Roaming, Band Steering, Beamforming, Load Balance, Airtime Fairness, Centralized Management by Omada SDN Controller, Omada App"
PORT:1× Gigabit RJ45 Port
SPEED:574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz
FEATURE: 802.3at POE and 12V DC (Power Adapter is not included), 2×Internal Antennas, MU-MIMO, Seamless Roaming, Band Steering, Beamforming, Load Balance, Airtime Fairness, Centralized Management by Omada SDN Controller, Omada App"
| SKU | EAP613 |
|---|---|
| UPC | 840030704307 |
| Brand | TP-Link |
| Color | White |
| Model | EAP613 |
| Notes | Cloud access and centralized management available via Omada controllers and Omada app Seamless roaming and Omada Mesh features require Omada SDN controller for full functionality DC power adapter is not included |
| Series | EAP613 |
| Weight | 14.1 oz |
| Antenna | Internal |
| Warranty | 5 Year Limited |
| MU‑MIMO | Yes |
| Dimensions | Height: 33.6 mm (1.3 in) Diameter: 160 mm (6.3 in) |
| Mount Type | Ceiling mount, Wall mount |
| Beamforming | Yes |
| Description | The TP-Link Omada EAP613 is an AX1800 Wi‑Fi 6 ceiling/wall mount access point designed for business and high‑density environments. It delivers up to 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz (1,775 Mbps combined) using 4 spatial streams, 1024‑QAM and OFDM enhancements. The ultra‑slim, white design includes internal antennas and supports 802.3at PoE+, passive PoE and 12V DC (adapter not included) for flexible installation. Integrated with the Omada SDN platform, the EAP613 can be managed via Omada hardware controller, software controller, cloud controller, web UI or Omada mobile app (standalone mode also supported). Advanced features include Mesh, Seamless Roaming (requires Omada SDN controller), WPA3/WPA2 security, MU‑MIMO, beamforming, band steering, load balancing, airtime fairness and various guest authentication options. Package includes the EAP613 access point, ceiling/wall mounting kit and installation guide. |
| Environment | Indoor |
| Form Factor | Ceiling mount / Wall mount (indoor) |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Line | Omada |
| Product Type | Wireless Access Point |
| Power Options | 802.3at PoE+ Passive PoE (48V/0.5A) 12V DC (adapter not included) |
| Product Title | TP-Link Omada EAP613 AX1800 Ceiling Mount Wi‑Fi 6 Access Point |
| Certifications | CE FCC RoHS |
| Ethernet Ports | 1 x RJ‑45 |
| Ethernet Speed | Gigabit Ethernet (1 Gbps) |
| Spatial Streams | 4 |
| Modulation / PHY | 1024‑QAM, Long OFDM Symbol |
| Wi-Fi Generation | Wi‑Fi 6 (802.11ax) |
| Advanced Features | Omada SDN compatibility (hardware/software/cloud controller) Omada app and web UI management Mesh WiFi Seamless Roaming (with Omada SDN controller) Band Steering Load Balancing Airtime Fairness Guest authentication options (SMS/Facebook/Voucher/etc.) |
| Country of Origin | Vietnam |
| Power Consumption | 9.9 W |
| Wireless Standard | IEEE 802.11ax |
| Antenna Form Factor | Internal |
| Included Components | EAP613 access point Ceiling / Wall mounting kit Installation guide |
| Security / Encryption | WPA3‑PSK WPA3‑ENT WPA2‑PSK WPA2‑ENT WPA‑PSK WPA‑ENT |
| Manufacturer Part Number | EAP613 |
| Wireless Transmission Speeds | 5 GHz: Up to 1201 Mbps 2.4 GHz: Up to 574 Mbps Combined: Up to 1775 Mbps (AX1800 class) |
TP-Link AX1800 Ceiling Mount Dual-Band Wi-Fi 6 Access Point, 1× Gigabit RJ45 Port, 574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz, 5-Year WTY - (EAP613)
