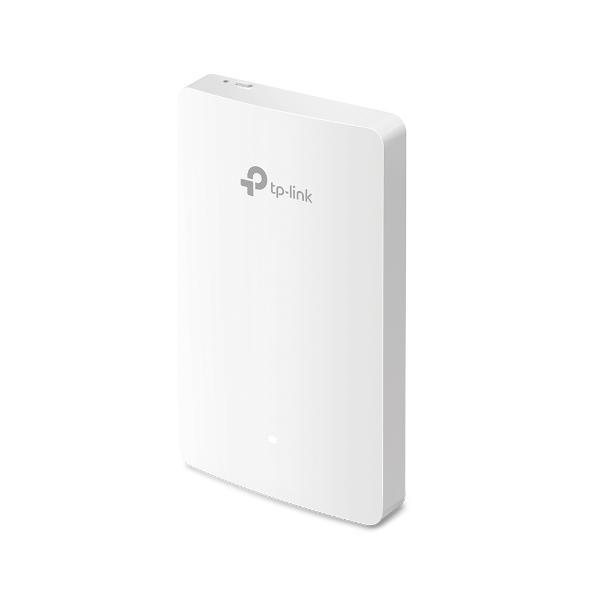

TP-Link AX1800 Wall-Plate Dual-Band Wi-Fi 6 Access Point -(EAP615-Wall) EAP615-Wall
SKU
392405
Brand
MPN
EAP615-Wall
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$138.00
Buy Now And Earn 138 Reward Points!
"TP-Link AX1800 Wall-Plate Dual-Band Wi-Fi 6 Access Point -(EAP615-Wall)
PORT: Uplink: 1× Gigabit RJ45 Port; Downlink: 3× Gigabit RJ45 Port
SPEED:574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz
FEATURE: Compatible with EU & US Standard Junction Box, 802.3at/af PoE, PoE Passthrough, 2× Internal Antennas, MU-MIMO, Band Steering, Beamforming, Load Balance, Centralized Management by Omada SDN Controller , Omada App, 143 × 86 × 19.7 mm"
PORT: Uplink: 1× Gigabit RJ45 Port; Downlink: 3× Gigabit RJ45 Port
SPEED:574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz
FEATURE: Compatible with EU & US Standard Junction Box, 802.3at/af PoE, PoE Passthrough, 2× Internal Antennas, MU-MIMO, Band Steering, Beamforming, Load Balance, Centralized Management by Omada SDN Controller , Omada App, 143 × 86 × 19.7 mm"
| Brand | TP-Link |
|---|---|
| Model | EAP615-Wall |
| OFDMA | Yes |
| Ports | 4 × 10/100/1000 Mbps Ethernet (1 × uplink, 3 × downlink; one downlink supports PoE pass-through) |
| SSIDs | Up to 16 (up to 8 per band) |
| Series | Omada / EAP |
| Weight | 7 oz |
| MU-MIMO | Yes |
| Antennas | Internal (4 total); 2.4 GHz: 2 × 3 dBi, 5 GHz: 2 × 4 dBi |
| Warranty | Limited 5 year warranty |
| Dimensions | 143 × 86 × 19.7 mm (5.6 × 3.4 × 0.8 in) |
| Management | Omada Hardware Controller (OC300/OC200), Omada Software Controller, Omada Cloud / Omada app, standalone mode, zero-touch provisioning |
| Beamforming | Yes |
| Description | In-wall Wi‑Fi 6 (802.11ax) access point designed for hotels, offices and multi-room deployments. Dual‑band AX1800 performance (up to 1775 Mbps: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz) with 4 spatial streams, OFDMA, MU‑MIMO and beamforming for higher capacity and better multi-user performance. Installs in standard 86 mm / EU / US junction boxes and is powered by 802.3af/at PoE (one downlink port supports PoE pass-through to power a wired device). Integrates with the Omada SDN platform and Omada app for centralized, cloud or local management (Omada hardware controller, software controller or cloud-based controller). Includes captive portal and multiple authentication options for guest networks, comprehensive wireless security (WPA2/WPA3, 802.1X), VLAN support, and enterprise management features. |
| PoE Support | 802.3af/at (PoE in) |
| Wi-Fi Rating | AX1800 |
| Coverage Area | Approximately 50 m² (600 ft²) |
| Product Title | TP-Link Omada EAP615-Wall AX1800 Wall-Plate WiFi 6 Access Point (4x Gigabit, PoE) |
| Certifications | CE, FCC, RoHS |
| Package Origin | China |
| Transmit Power | CE: <20 dBm (2.4 GHz EIRP), <23 dBm (5 GHz EIRP); FCC: <21 dBm (2.4 GHz), <21 dBm (5 GHz) |
| Frequency Bands | Dual-Band (2.4 GHz and 5 GHz) |
| Spatial Streams | 4 |
| Maximum Data Rate | Up to 1775 Mbps (574 Mbps @ 2.4 GHz + 1201 Mbps @ 5 GHz) |
| Wireless Features | Seamless roaming, Band steering, Airtime fairness, QoS (WMM), Rate limit, Load balance, Transmit power control, Automatic channel assignment, Wireless schedule |
| Wireless Security | WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, 802.1X, Captive Portal, MAC filtering, Wireless isolation |
| Wireless Standard | IEEE 802.11ax (backward compatible with 802.11a/b/g/n/ac) |
| Concurrent Clients | 120+ |
| Included Components | EAP615-Wall AX1800 Wall-Plate WiFi 6 Access Point, Installation Guide, Mounting Kits |
| Operating Environment | Operating temperature: 0–40 °C (32–104 °F); Storage temperature: -40–70 °C (-40–158 °F); Operating humidity: 10–90% RH non-condensing; Storage humidity: 5–90% RH non-condensing |
| Form Factor / Mounting | Wall plate / wall mountable; compatible with 86 mm, EU and US standard junction boxes |
| PoE Pass-through Power | Max PoE pass-through: 12 W (US) / 13 W (EU) (requires 802.3at PoE+ input) |
| Compatibility / Use Cases | Designed for hotels, offices, cubicles and multi-room deployments; compatible with laptops, PCs and wired devices via Gigabit Ethernet |
| Maximum Power Consumption | EU: 10 W (802.3at PoE, PoE Out off); US: 11.5 W (802.3at PoE, PoE Out off) |
| Encryption / Data Protection | WPA2/WPA3, 802.1X, VLAN |
| Management Protocols & Interfaces | HTTP/HTTPS web management, SSH, SNMP v1/v2c/v3, syslog, L3 management, multi-site management, management VLAN, LED on/off control |
