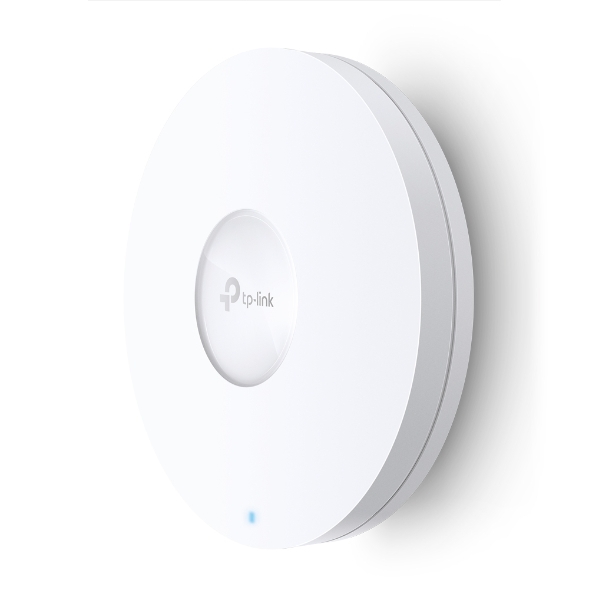

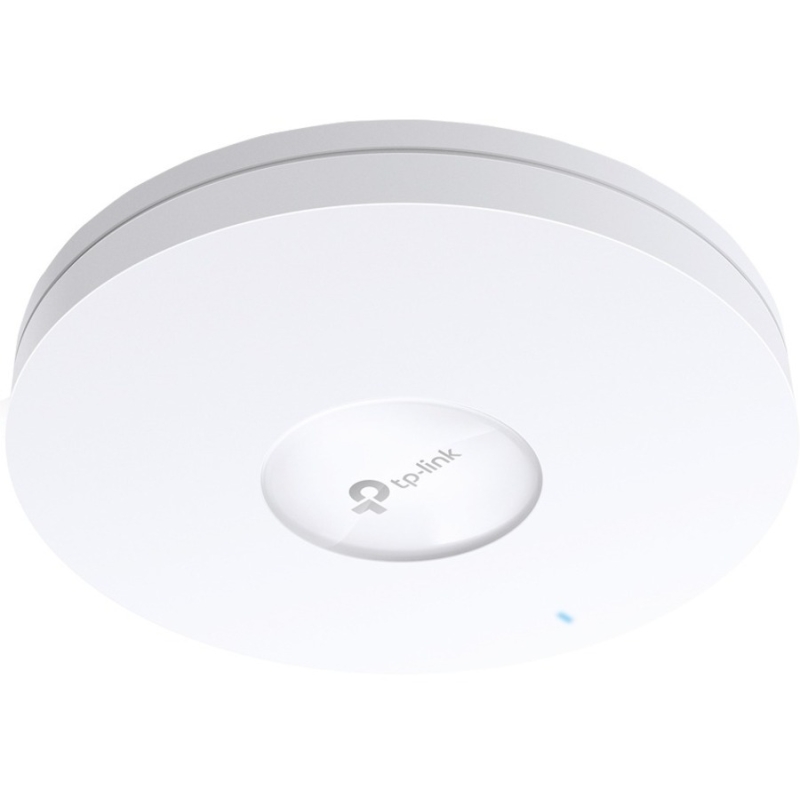

TP-Link AX1800 Ceiling Mount Dual-Band Wi-Fi 6 Access Point, 1 Gigabit RJ45 Port, 574Mbps At 2.4 GHz + 1201 Mbps At 5 GHz, 5-Year Wty-(Eap620 Hd) EAP620 HD
SKU
408033
Brand
MPN
EAP620 HD
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$263.00
Buy Now And Earn 263 Reward Points!
"TP-Link AX1800 Ceiling Mount Dual-Band Wi-Fi 6 Access Point
PORT:1 Gigabit RJ45 Port
SPEED:574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz
FEATURE: High Density connectivity（1000+ Clients）, 802.3at POE and 12V DC, 4×Internal Antennas, MU-MIMO, Seamless Roaming, Band Steering, Beamforming, Load Balance, Airtime Fairness, Centralized Management by Omada SDN Controller, Omada App"
PORT:1 Gigabit RJ45 Port
SPEED:574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz
FEATURE: High Density connectivity（1000+ Clients）, 802.3at POE and 12V DC, 4×Internal Antennas, MU-MIMO, Seamless Roaming, Band Steering, Beamforming, Load Balance, Airtime Fairness, Centralized Management by Omada SDN Controller, Omada App"
| SKU | EAP620 HD |
|---|---|
| Brand | TP-Link |
| Color | White |
| Model | EAP620 HD |
| Notes | Product marketed under TP-Link Omada line; some listings reference Omada as brand but TP-Link is the manufacturer/brand. Zero-Touch Provisioning requires Omada Cloud-Based Controller and is supported on EAP620 HD v2.0 and above. |
| Ports | 1 × Gigabit Ethernet (RJ-45) port (supports 802.3at PoE and Passive PoE) |
| Series | Omada |
| Weight | Approximately 1.59 lb (25.3 oz) |
| Antenna | Internal omni-directional |
| Category | Networking |
| Mounting | Ceiling / Wall / Junction box (mounting kits included) |
| AX Rating | AX1800 |
| Description | High-performance Wi‑Fi 6 (802.11ax) ceiling/ceiling-junction-box mount access point designed for high-density deployments. Delivers AX1800 dual‑band speeds (up to 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz), supports OFDMA, MU‑MIMO, 1024‑QAM and Omada SDN/Cloud management with Zero‑Touch Provisioning. Flexible power options (802.3at PoE+, passive PoE and 12 V DC), internal omni antennas, included mounting kits and power adapter make it suitable for business and enterprise environments. |
| Form Factor | Ceiling / wall mountable access point |
| Antenna Gain | 5 GHz: 2 × 5 dBi 2.4 GHz: 2 × 4 dBi |
| Sub-Category | Wireless Networking |
| Model Variant | V3 (where specified) |
| Power Options | 802.3at PoE+ 48 V Passive PoE 12 V / 1.5 A DC (adapter included) |
| Product Title | TP-Link EAP620 HD AX1800 Ceiling Mount WiFi 6 Access Point (PoE+) |
| 5 GHz Data Rate | Up to 1201 Mbps |
| Frequency Bands | Dual-band (2.4 GHz & 5 GHz) |
| Spatial Streams | 4 (per vendor listing) |
| Package Contents | EAP620 HD Power Adapter Ceiling/Wall Mounting Kits Installation Guide |
| Storage Humidity | 5% to 90% RH non-condensing |
| 2.4 GHz Data Rate | Up to 574 Mbps |
| Wireless Features | OFDMA MU-MIMO 1024-QAM Long OFDM Symbol Beamforming Band Steering Load Balancing Airtime Fairness Seamless Roaming Omada Mesh Multiple SSIDs (up to 16, 8 per band) Rate Limit Wireless Schedules |
| Wireless Security | WPA3-Personal/Enterprise WPA2-Personal/Enterprise WPA-Personal/Enterprise WEP 802.1X Captive Portal Authentication MAC Address Filtering SSID to VLAN Mapping Wireless Isolation Rogue AP Detection |
| Concurrent Clients | 1,020+ |
| Coverage (approx.) | 140 m² (approx. 1500 ft²) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Wireless Standards | IEEE 802.11ax IEEE 802.11ac IEEE 802.11n IEEE 802.11g IEEE 802.11b IEEE 802.11a |
| Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| Included Accessories | EAP620 HD access point Power adapter (12 V / 1.5 A) Ceiling / wall mounting kits (including junction box options) Installation guide |
| Max Data Rate (Total) | 1775 Mbps |
| Max Power Consumption | EU: 14.4 W (PoE); 13.1 W (DC) US: 14.9 W (PoE); 13.4 W (DC) |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Dimensions (W x D x H) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Management & Protocols | Omada Cloud-Based Controller Omada Hardware Controller (OC300/OC200) Omada Software Controller Omada App Zero-Touch Provisioning (requires Omada Cloud-based controller, supported on v2.0+) Web-based management (HTTP/HTTPS) SSH SNMP v1/v2c/v3 L3 Management Multi-site Management Email Alerts Local/Remote Syslog |
| UPC / MPN (where provided) | MPN: EAP620 HD / EAP620 HD_V3 UPC: 840030707766 (where provided) |
| Certifications / Compliance | CE FCC RoHS |
| System Requirements / Compatibility | Omada controllers (hardware/software/cloud) for centralized management Standalone mode supported Compatible with Windows and Linux for management tools (per vendor documents) |
TP-Link AX1800 Ceiling Mount Dual-Band Wi-Fi 6 Access Point, 1 Gigabit RJ45 Port, 574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz, 5-Year WTY-(EAP620 HD)
