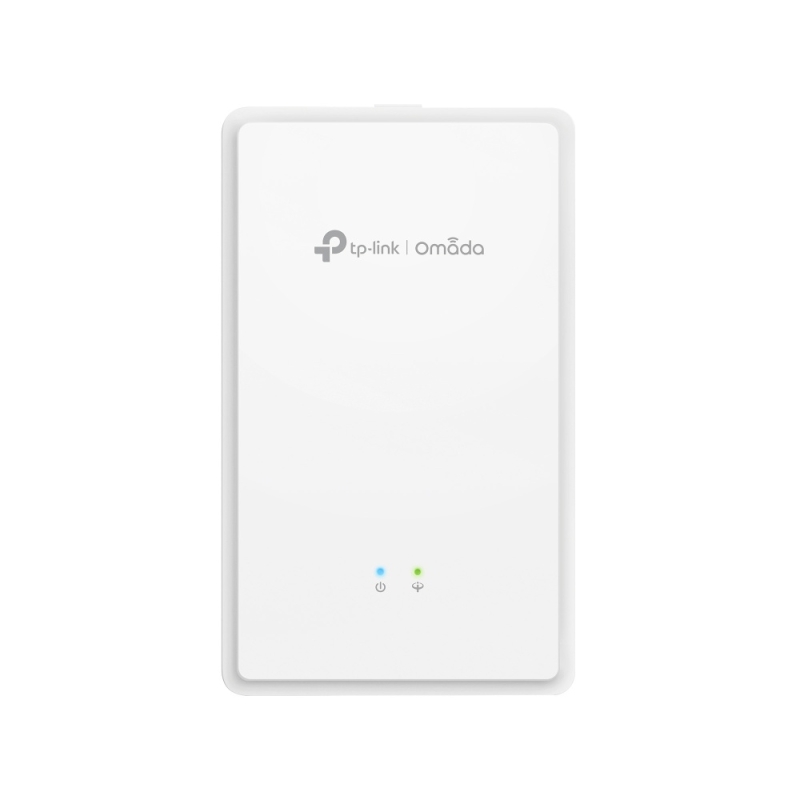

Tp-Link Omada AX1800 Wi-Fi 6 Gpon Wall Plate Access Point, GPON(1), FXS(1), GbE(2), 5YR EAP625GP-WALL
SKU
426085
Brand
MPN
EAP625GP-WALL
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$109.00
Buy Now And Earn 109 Reward Points!
-Seamless 1.8 Gbps Wi-Fi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz†
-Multiple Ports: 1× GPON port for high-speed, ultra-range access and 2× Gigabit RJ45 ports (one supporting 802.3af PoE out) for flexible deployment
-One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
-VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
-Easy Use: One-Click Pairing and Automatic Adoption
-Advanced Functions: Omada Mesh, Seamless Roaming, Centralised Cloud Management§
-Multiple Ports: 1× GPON port for high-speed, ultra-range access and 2× Gigabit RJ45 ports (one supporting 802.3af PoE out) for flexible deployment
-One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
-VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
-Easy Use: One-Click Pairing and Automatic Adoption
-Advanced Functions: Omada Mesh, Seamless Roaming, Centralised Cloud Management§
| VPN | N/A |
| NETWORK | IEEE 802.11 a/b/g/n/ac/ax - AX1800 |
| MOUNTING | Wall mouting (Kits included) |
| SIM TYPE | N/A |
| WARRANTY | 5-Year Warranty |
| FREQUENCY | 2.4 GHz and 5 GHz |
| INTERFACE | 1x GPON Port(SC-APC), 1x FXS Port, 2x Gigabit RJ45 Ports (One supporting 802.3af PoE Out) |
| OMADA APP | Yes |
| IN THE BOX | EAP625GP-Wall, Installation Guide, Mounting Kits |
| WATERPROOF | N/A |
| DEVICE TYPE | Wi-Fi 6 GPON Access Point |
| SIGNAL RATE | 5 GHz:Up to 1201 Mbps, 2.4 GHz:Up to 574 Mbps |
| CLOUD ACCESS | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| DIMENSIONS (WXDXH) | 143 × 86 × 44.6 mm |
| POWER SUPPLY (POE) | 30.5W (PoE out full load 15W) |
| PRODUCT DESCRIPTION | TP-LINK OMADA AX1800 WI-FI 6 GPON WALL PLATE ACCESS POINT, GPON(1), FXS(1), GbE(2), 5YR |
| ADVANCED FUNCTIONS 1 | Captive Portal Authentication |
| ADVANCED FUNCTIONS 2 | Multiple SSIDs (16 SSIDs, 8 on each band) |
| ADVANCED FUNCTIONS 3 | HE80 (80 MHz Bandwidth) |
| ADVANCED FUNCTIONS 4 | Standards and Protocols: ITU-984.x, G.988, Class B+ |
| ADVANCED FUNCTIONS 5 | Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream) |
| ADVANCED FUNCTIONS 6 | Fiber Type: 9/125 um Single mode, Max. Cable Length: 20 km |
-Seamless 1.8 Gbps Wi-Fi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz†
