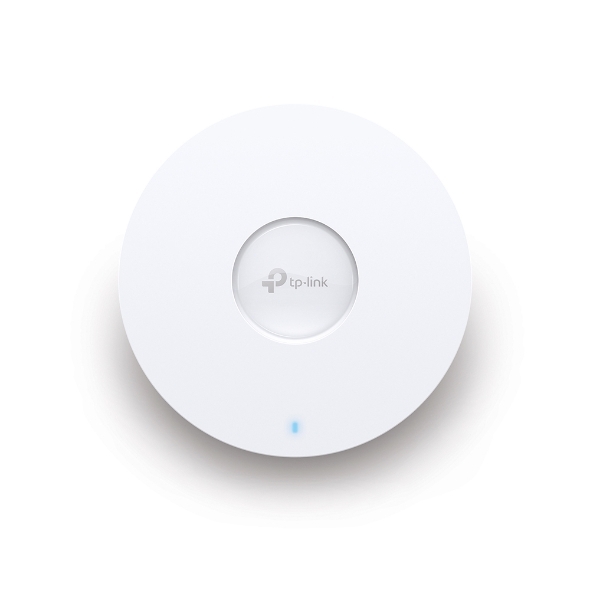

TP-Link AX3000 Ceiling Mount Dual-Band Wi-Fi 6 Access Point, 1×1Gbps RJ45 Port, 574Mbps At 2.4 GHz + 2402 Mbps At 5 GHz, 5-Year Wty -(Eap653) EAP653
SKU
394272
Brand
MPN
EAP653
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$209.00
Buy Now And Earn 209 Reward Points!
"TP-Link AX3000 Ceiling Mount Dual-Band Wi-Fi 6 Access Point-(EAP653)
PORT:1×1Gbps RJ45 Port
SPEED:574Mbps at 2.4 GHz + 2402 Mbps at 5 GHz
FEATURE: 802.3at POE, 2×Internal Antennas, 160MHz Supported, MU-MIMO, Seamless Roaming, Band Steering, Beamforming, Load Balance, Airtime Fairness, Centralized Management by Omada SDN Controller, Omada App"
PORT:1×1Gbps RJ45 Port
SPEED:574Mbps at 2.4 GHz + 2402 Mbps at 5 GHz
FEATURE: 802.3at POE, 2×Internal Antennas, 160MHz Supported, MU-MIMO, Seamless Roaming, Band Steering, Beamforming, Load Balance, Airtime Fairness, Centralized Management by Omada SDN Controller, Omada App"
| SKU | EAP653 |
|---|---|
| Bands | Dual-band (2.4 GHz & 5 GHz) |
| Brand | TP-Link (Omada) |
| Color | White |
| Model | EAP653 |
| Series | Omada |
| Weight | 14.1 oz (≈ 400 g) |
| Antenna | Type: Internal dual-band antennas 5 GHz: 2 × 5 dBi 2.4 GHz: 2 × 4 dBi |
| Buttons | Reset |
| Category | Networking |
| Dimensions | Diameter: 6.3 in (160 mm) Height / Thickness: 1.3 in (33.6 mm) Dimensions (W × D × H): 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Description | The TP-Link Omada EAP653 is an AX3000 ceiling-mount WiFi 6 access point delivering simultaneous speeds of up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz (total 2976 Mbps). Designed for business and high-density environments, it features a slim 160 mm × 33.6 mm design, internal dual-band antennas, 1× Gigabit Ethernet port, and flexible power options including 802.3at PoE/PoE+ and 12 V DC (DC adapter sold separately). Advanced features include HE160, OFDMA, MU-MIMO, 1024-QAM, seamless roaming, Omada Mesh, centralized management via Omada Cloud/Hardware/Software controllers and the Omada app, WPA2/WPA3 security, and support for multiple SSIDs. Package includes the EAP653, ceiling/wall mounting kits, and an installation guide. |
| Environment | Storage Humidity: 5–90% RH non-condensing Operating Humidity: 10–90% RH non-condensing Storage Temperature: -40–70 °C (-40–158 °F) Operating Temperature: 0–40 °C (32–104 °F) |
| Product Type | Ceiling-mount WiFi 6 Access Point |
| Sub-Category | Wireless Networking |
| Max Data Rate | 5 GHz: 2402 Mbps 2.4 GHz: 574 Mbps Total (theoretical): 2976 Mbps (AX3000) |
| Power Options | 802.3at PoE / PoE+ 12 V DC (power adapter not included; EU: 12 V / 1.0 A DC, US: 12 V / 1.5 A DC) 48 V Passive PoE (supported) |
| Product Title | TP-Link Omada EAP653 AX3000 Ceiling-Mount WiFi 6 Access Point (PoE+, 1× Gigabit) |
| WiFi Features | HE160 (160 MHz) OFDMA MU-MIMO 1024-QAM 4 spatial streams Beamforming Band steering Airtime fairness Load balancing Multiple SSIDs (up to 16, 8 per band) Automatic channel assignment Transmit power control Rate limit Wireless scheduling Wireless statistics Seamless roaming Omada Mesh |
| Certifications | CE FCC RoHS |
| Mounting Options | Ceiling mount Wall mount Junction box T-bar mount |
| Wireless Security | WPA-Personal/Enterprise WPA2-Personal/Enterprise WPA3-Personal/Enterprise Captive portal authentication Access control MAC address filtering Wireless client isolation SSID to VLAN mapping Rogue AP detection |
| Interfaces / Ports | 1 × Gigabit Ethernet (10/100/1000 Mbps) |
| Regulatory & Notes | Maximum wireless signal rates are physical PHY rates per IEEE 802.11 specifications. Actual throughput, coverage, and connected devices vary by environment, client capability, and regulatory region. HE160 and some features may be unavailable in some regions. Some features require an Omada controller. |
| Transmission Power | CE: 2.4 GHz: 7–20 dBm (EIRP); 5 GHz U-NII-1/U-NII-2A: 7–23 dBm (EIRP); 5 GHz U-NII-2C: 7–30 dBm (EIRP) FCC: 2.4 GHz: 4–25 dBm; 5 GHz (U-NII-1/2A/2C/3): 4–25 dBm |
| Wireless Standards | IEEE 802.11ax (WiFi 6) IEEE 802.11ac IEEE 802.11n IEEE 802.11g IEEE 802.11b IEEE 802.11a |
| Capacity & Coverage | Coverage (manufacturer claim): Up to 1500 ft² (140 m²) Concurrent Clients (manufacturer claim): 250+ (actual depends on environment and client traffic) |
| Included Accessories | EAP653 access point Ceiling/wall mounting kits Installation guide |
| Management & Control | Omada Cloud-based controller Omada hardware controller Omada software controller Omada mobile app Web-based management (HTTP/HTTPS) SSH SNMP v1/v2c/v3 Local/remote syslog Email alerts Management MAC access control Management VLAN Zero-touch provisioning (requires Omada controller) Multi-site management Layer 3 management |
| Maximum Power Consumption | EU: 13.5 W US: 14.7 W |
| Certainty / Data Confidence | Specifications consolidated from multiple manufacturer and reseller sources (TP-Link / Omada product pages and reseller listings). |
| Compatibility / System Requirements | Omada controller required for some features (cloud access, mesh, zero-touch, etc.) Client devices must support corresponding WiFi 6 features to utilize OFDMA/MU-MIMO/1024-QAM/HE160 Operating systems for management tools: Windows, Linux (Windows XP through Windows 11 listed for client/management compatibility) |
TP-Link AX3000 Ceiling Mount Dual-Band Wi-Fi 6 Access Point, 1×1Gbps RJ45 Port, 574Mbps at 2.4 GHz + 2402 Mbps at 5 GHz, 5-Year WTY -(EAP653)
