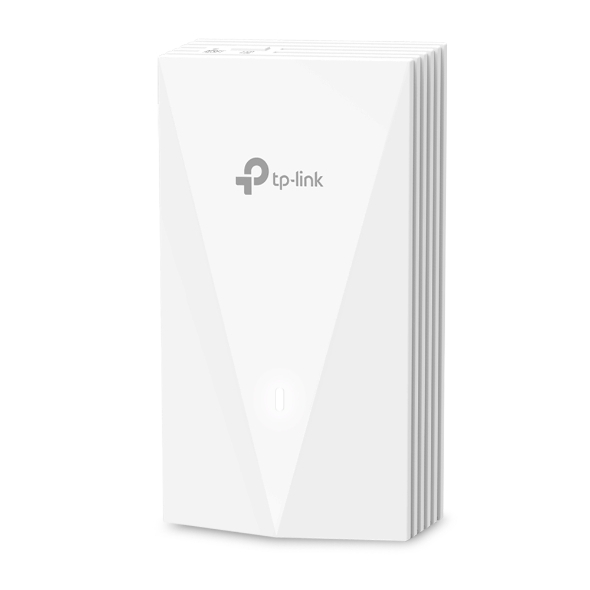

TP-Link AX3000 Wall-Plate Dual-Band Wi-Fi 6 Access Point-(EAP655-Wall) EAP655-Wall
SKU
393640
Brand
MPN
EAP655-Wall
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$166.00
Buy Now And Earn 166 Reward Points!
"TP-Link AX3000 Wall-Plate Dual-Band Wi-Fi 6 Access Point-(EAP655-Wall)
PORT: Uplink: 1× Gigabit RJ45 Port; Downlink: 3× Gigabit RJ45 Port
SPEED:574Mbps at 2.4 GHz + 2402 Mbps at 5 GHz
FEATURE: Compatible with EU & US Standard Junction Box, 802.3at/af PoE, PoE Passthrough, 2× Internal Antennas, MU-MIMO, Band Steering, Beamforming, Load Balance, Centralized Management by Omada SDN Controller , Omada App, 143 × 86 × 42.6 mm
PORT: Uplink: 1× Gigabit RJ45 Port; Downlink: 3× Gigabit RJ45 Port
SPEED:574Mbps at 2.4 GHz + 2402 Mbps at 5 GHz
FEATURE: Compatible with EU & US Standard Junction Box, 802.3at/af PoE, PoE Passthrough, 2× Internal Antennas, MU-MIMO, Band Steering, Beamforming, Load Balance, Centralized Management by Omada SDN Controller , Omada App, 143 × 86 × 42.6 mm
| SKU | EAP655-Wall |
|---|---|
| Brand | TP-Link |
| Color | White |
| Model | EAP655-Wall |
| Notes | Maximum wireless signal rates are physical rates from IEEE 802.11 specifications; actual throughput, coverage and number of clients will vary by environment, client capability and network conditions. 160 MHz channel (and some Wi‑Fi 6 features) may be restricted in certain regions and requires client support. Seamless roaming, Omada Mesh, captive portal and some provisioning features require an Omada controller (hardware/software/cloud) as noted by vendor. |
| Weight | 0.88 lb (vendor-stated) |
| Antennas | 2 internal dual-band antennas |
| Warranty | 5 years (vendor-stated) |
| Dimensions | 143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in) |
| Description | TP-Link EAP655-Wall is a wall-plate Wi‑Fi 6 (802.11ax) access point delivering AX3000 combined speeds (574 Mbps on 2.4 GHz + 2402 Mbps on 5 GHz). Designed for in-room deployments (hotel rooms, offices, cubicles), it provides four Gigabit Ethernet ports (1× uplink PoE-powered, 3× downlink; one downlink supports PoE pass-through when powered by 802.3at), centralized Omada SDN management (hardware/software/cloud controllers and Omada app), and advanced Wi‑Fi 6 features including OFDMA, MU‑MIMO, 1024‑QAM, beamforming, band steering, airtime fairness and seamless roaming (seamless roaming/mesh require Omada controller). The unit mounts to standard 86 mm / EU / US junction boxes and includes mounting kits and an installation guide. Additional capabilities include multiple SSIDs (up to 16), captive portal/guest authentication options, enterprise security (WPA2/WPA3, 802.1X), SNMP, SSH, web management, and system logging. Vendor-stated environmental, certification and warranty details are provided below. |
| Form Factor | Wall plate |
| PoE Support | 802.3af/at (device powered via PoE) |
| Radio Rates | 5 GHz: Up to 2402 Mbps 2.4 GHz: Up to 574 Mbps Total (theoretical): 2976 Mbps |
| Antenna Gain | 5 GHz: 2 × 5 dBi 2.4 GHz: 2 × 3 dBi |
| Environmental | Storage Humidity: 5–90% RH non-condensing Operating Humidity: 10–90% RH non-condensing Storage Temperature: -40–70 °C (-40–158 °F) Operating Temperature: 0–40 °C (32–104 °F) |
| Product Title | TP-Link EAP655-Wall AX3000 Wall-Plate Wi-Fi 6 Access Point (Omada) |
| Certifications | FCC RoHS |
| Ethernet Ports | Total: 4 Uplink: 1 × 10/100/1000 Mbps (PoE-powered) Downlink: 3 × 10/100/1000 Mbps (one supports PoE pass-through) |
| Product Family | Omada |
| Wi-Fi Standard | IEEE 802.11ax (Wi‑Fi 6); backward compatible with 802.11a/b/g/n/ac |
| Frequency Bands | Dual-Band (2.4 GHz and 5 GHz) |
| PoE Passthrough | PoE pass-through supported on one downlink port when input is 802.3at (PoE+) |
| Package Contents | EAP655-Wall access point Installation guide Mounting kits |
| Power Consumption | Approximately 12 W (EU) / 12.6 W (US) when powered via 802.3at with PoE out off |
| Wireless Features | OFDMA MU-MIMO 1024-QAM Beamforming Band Steering Airtime Fairness Load Balancing Seamless Roaming (requires Omada controller) Omada Mesh (requires Omada controller) Automatic Channel Assignment Transmit Power Control Rate Limit Reboot Schedule Wireless Schedule 16 SSIDs (up to 8 per band) |
| Wireless Security | WPA-Personal/Enterprise WPA2-Personal/Enterprise WPA3-Personal/Enterprise 802.1X Captive Portal Authentication (Omada) MAC Address Filtering Wireless Isolation VLAN Rogue AP Detection |
| Encryption Standard | WPA-PSK, WPA-ENT, WPA2-PSK, WPA2-ENT, WPA3-PSK, WPA3-ENT |
| Included Components | AX3000 Wall Plate Wi-Fi 6 Access Point (EAP655-Wall) Installation Guide Mounting Kits |
| Interfaces & Buttons | Ethernet ports as listed Reset button LED (on/off control) |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Management & Protocols | Omada Hardware Controller (OC300/OC200) Omada Software Controller Omada Cloud-Based Controller / Omada App Web-based management (HTTP/HTTPS) SSH SNMP v1/v2c/v3 Local/Remote Syslog RADIUS Accounting Multi-site Management Management VLAN Zero-Touch Provisioning (requires Omada Cloud-based controller) |
| Compatibility / Mounting | Compatible with 86 mm, EU & US standard junction boxes; wall-plate mounting (mounting kits included) |
| Transmission Power (EIRP) | CE: <20 dBm (2.4GHz); <23 dBm (5GHz band1 & 2); <26 dBm (5GHz band3) FCC: <21 dBm (2.4 GHz); <21 dBm (5 GHz) |
| Maximum Number of Wireless Clients | 100+ (vendor-stated; actual capacity varies by environment and traffic) |
TP-Link AX3000 Wall-Plate Dual-Band Wi-Fi 6 Access Point-(EAP655-Wall)
