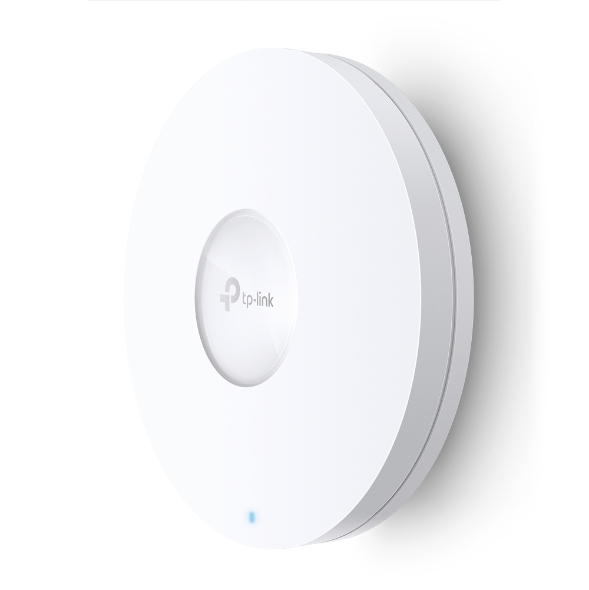

TP-Link AX3600 Ceiling Mount Dual-Band Wi-Fi 6 Access Point, 1 X 2.5Gbps RJ45 Port, 1148Mbps At 2.4 GHz + 2402 Mbps At 5 GHz, 5-Year Wty- (EAP660 Hd) EAP660 HD
SKU
392403
Brand
MPN
EAP660 HD
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$513.00
Buy Now And Earn 513 Reward Points!
"TP-Link AX3600 Ceiling Mount Dual-Band Wi-Fi 6 Access Point - (EAP660 HD)
PORT: 1x 2.5Gbps RJ45 Port
SPEED:1148Mbps at 2.4 GHz + 2402 Mbps at 5 GHz
FEATURE: High Density connectivity（1000+ Clients）, 802.3at POE,8×Internal Antennas, MU-MIMO, Seamless Roaming, Band Steering, Beamforming, Load Balance, Airtime Fairness, Centralized Management by Omada SDN Controller, Omada App"
PORT: 1x 2.5Gbps RJ45 Port
SPEED:1148Mbps at 2.4 GHz + 2402 Mbps at 5 GHz
FEATURE: High Density connectivity（1000+ Clients）, 802.3at POE,8×Internal Antennas, MU-MIMO, Seamless Roaming, Band Steering, Beamforming, Load Balance, Airtime Fairness, Centralized Management by Omada SDN Controller, Omada App"
| SKU | EAP660 HD |
|---|---|
| Brand | TP-Link |
| Color | White |
| Model | EAP660 HD |
| Power | PoE: 802.3at PoE+ supported DC Input: 12 V DC (supported on some units) Typical Power Consumption: 21.5 W |
| Antenna | Internal omnidirectional (2.4 GHz: 4 × 4 dBi; 5 GHz: 4 × 5 dBi) |
| Ethernet | LAN Ports: 1 × 2.5 Gbps RJ‑45 (supports IEEE 802.3at PoE+) Additional Ports: Optional 12 V DC input (depending on region/model) |
| Warranty | Limited lifetime (listed on some sources) 5 years (listed on some sources) |
| Description | The TP-Link EAP660 HD is a Wi‑Fi 6 (802.11ax) AX3600 dual‑band ceiling/wall access point designed for high‑density deployments. It delivers up to 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz (total 3550 Mbps), uses OFDMA, MU‑MIMO and 1024‑QAM to increase capacity and performance, and supports seamless roaming and Omada Mesh. A 2.5 Gbps Ethernet port with 802.3at PoE+ support boosts uplink throughput; centralized management is available via Omada SDN, Omada Cloud, hardware/software controllers and the Omada app. Includes ceiling/wall mounting kit, power adapter and installation guide. |
| Form Factor | Ceiling / wall mountable (ceiling mount preferred) |
| Identifiers | EAN: [ "4895252506167", "6222051808730" ] MPN: EAP660 HD UPC: 845973089719 ASIN: B08PW34WPX |
| Environmental | Storage Humidity: 5–90% RH (non‑condensing) Operating Humidity: 10–90% RH (non‑condensing) Storage Temperature: -40–70 °C (-40–158 °F) Operating Temperature: 0–40 °C (32–104 °F) |
| Product Title | TP-Link EAP660 HD Omada AX3600 Wi‑Fi 6 Dual‑Band 2.5G Ceiling Access Point |
| Wireless Band | Dual‑Band (2.4 GHz + 5 GHz) |
| Certifications | FCC CE RoHS |
| Product Family | Omada |
| Wi-Fi Standard | IEEE 802.11ax (Wi‑Fi 6) Backward compatible: IEEE 802.11ac/n/a/b/g |
| Maximum Clients | 1000+ (high‑density scenarios) |
| Spatial Streams | 8 (combined) |
| Wireless Speeds | 5 GHz: Up to 2402 Mbps 2.4 GHz: Up to 1148 Mbps Total (AX3600): 3550 Mbps |
| Hardware Version | V2 |
| Package Quantity | 1 |
| Special Features | Access Point Mode WPS Seamless Roaming Omada SDN integration Cloud access and management Mesh support |
| Country of Origin | China |
| Wireless Features | QoS: WMM SSID: Up to 16 SSIDs (8 per band) Rate Limit: Yes Load Balance: Yes Transmit Power: < 26 dBm (2.4 GHz and 5 GHz) Reboot Schedule: Yes Wireless Schedule: Yes |
| Wireless Security | WPA/WPA2/WPA3 Personal/Enterprise WEP 802.1X Captive Portal MAC filtering SSID to VLAN mapping Wireless isolation |
| Included Components | EAP660 HD access point Power adapter Ceiling/Wall mounting kit Installation guide |
| Physical Dimensions | Weight: 1.94 lb (0.88 kg) Dimensions (mm): 243 × 243 × 64 mm Dimensions (inches): 9.59 × 9.59 × 2.5 in |
| Transmit/Modulation | 1024 QAM OFDM/OFDMA |
| Compliance Standards | IEEE 802.11ax IEEE 802.11ac IEEE 802.11n IEEE 802.11a/b/g IEEE 802.3at |
| Wireless Technologies | OFDMA Uplink & Downlink MU‑MIMO 1024‑QAM Long OFDM Symbol Beamforming Band Steering Airtime Fairness Omada Mesh Seamless Roaming MU‑MIMO |
| Management & Protocols | Omada Cloud-Based Controller / Omada Hardware Controller (OC200/OC300) / Omada Software Controller Omada App Zero‑Touch Provisioning (ZTP) HTTP/HTTPS web management SSH SNMP v1/v2c/v3 Local/Remote Syslog Multi‑site management Management VLAN |
| Use Case / Recommended Uses | Business / High‑density deployments (enterprises, offices, schools, venues) |
TP-Link AX3600 Ceiling Mount Dual-Band Wi-Fi 6 Access Point, 1 x 2.5Gbps RJ45 Port, 1148Mbps at 2.4 GHz + 2402 Mbps at 5 GHz, 5-Year WTY- (EAP660 HD)
