Eaton PSF10i Technical Specifications

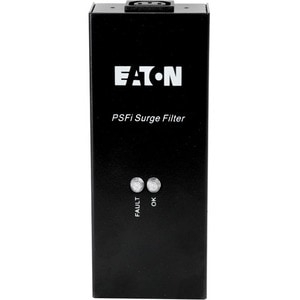

Eaton PSF10i
General
Location Category Indoor
Dimensions - Including hinges (H x W x D, mm) 50 x 155 x 150
Weight (g) 500
Warranty 12 months

Electrical
Input voltage (Uc) 200-250VAC 1 Phase
Max Continuous Voltage (Mcov) 285VAC L-N
Number of ports 2 Port
Method of mounting Portable
Service type TT, TN, TN C-S or any 1 phase system with a grounded neutral. This unit must not be connected to an ungrounded system.
Temporary overvoltage - TOV 300VAC L-N, 15 mins
Test Classification Class II
Energy Absorption rating - per mode (joules) Primary Protection L-N = 370J
Primary Common Mode protection L-E & N-E = 480J
Secondary protection L-N = 225J
Secondary Common Mode protection L-E & N-E = 480J
Aggregate rating = 1,555J
Current rating - continuous 10A
Test Classification Class III (IEC 61643-1), Category A (ANSI/IEEE C62.41)
Recommended max. overcurrent protection 10A
Residual current <0.5 mA
Protection modes Line-Neutral, Line-Earth, Neutral-Earth
In 8/20us (Line-Neutral) Nominal surge life 10kA x 20 hits
In 8/20us (Line-Earth) Nominal surge life 3kA x 20 hits
In 8/20us (Neutral-Earth) Nominal surge life 3kA x 20 hits
Ismax 8/20us (Line-Neutral) Max surge level 20kA
Ismax 8/20us (Line-Earth) Max surge level 10kA
Ismax 8/20us (Neutral-Earth) Max surge level 10kA
Filter attenuation 40dB nominal above 1MHz
Initial clamp voltage (Line-Neutral) 560V
Initial clamp voltage (Line-Earth) 680V
Initial clamp voltage (Neutral-Earth) 680V
Residual voltage (Vpl) (Line-Neutral) (Let through voltage) <1100 (3kA, 8/20uS)
Residual voltage (Vpl) (Line-Earth) (Let through voltage) <1400 (3kA, 8/20uS)
Residual voltage (Vpl) (Neutral-Earth) (Let through voltage) <1400 (3kA, 8/20uS)
Internal protection (fusing) Thermal fusing on primary line-connected MOVs
Terminations IEC 320-C14 10A input x 1, , IEC 320-C13 10A output x 1

Communications
Alarms/indicators Includes status indicators, dry contact alarm relay output (normally-closed with power applied and all SPD?s at 100% capacity). Contact rating 250Vac/32Vdc, 5A, alarm under-voltage cut off 180Vac.

Environmental & Standards
Enclosure rating IP42
Standards. Designed in accordance with : IEC61643-1:2005, IEC610006-1,2,3,4 ANSI/IEEE C62.41, AS/NZS1768, AS/NZS3000:2007, AS3100
Environment -10 to 65?C, 10 to 90%RH (non-condensing)
