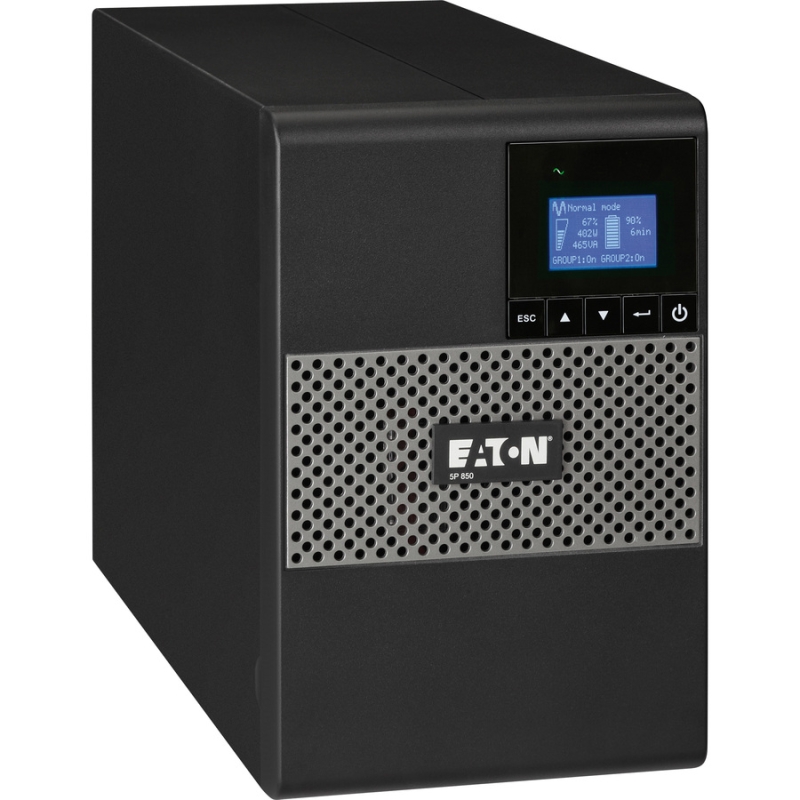

Eaton 5P650AU 5P 650VA / 420W Line Interactive UPS Tower 5P650AU
SKU
147620
Brand
MPN
5P650AU
Warranty
Standard Manufacturer's Warranty
$539.00
Buy Now And Earn 539 Reward Points!
The Eaton 5P is a Line interactive, density optimised (up to 1550VA in 1U) power protection for IT & Telecom environment. Wide power management capabilities offering point-to-point and network supervision.
| SKU | 5P650AU |
|---|---|
| GTIN | 743172042866 |
| Brand | Eaton |
| Color | Black/Silver |
| Model | 5P650AU |
| Series | 5P |
| Runtime | Full_Load: Approximately 2 minutes at 420 W (manufacturer rating) Half_or_Partial_Load: Manufacturer-listed ~9 minutes at half load; ~10 minutes at 200 W (typical) |
| Altitude | Up to 2000 m |
| Category | Power and Rack Equipment |
| Topology | Line-interactive (AVR buck/boost) |
| Warranty | Batteries: 2 years (manufacturer-listed) Electronics: 3 years (manufacturer-listed) |
| Weight_kg | 7.8 |
| Capacity_W | 420 W |
| Efficiency | Up to 98% (manufacturer-stated), 96% reported at max load |
| Capacity_VA | 650 VA |
| Description | The Eaton 5P 650VA / 420W is a line-interactive tower UPS with AVR (buck/boost) and pure sine-wave battery output, designed for IT and telecom environments. It provides high-efficiency power protection, a graphical multilingual LCD for status and configuration, individually controllable output segments, and advanced battery management (ABM® with temperature compensation). Connectivity includes USB and RS-232 ports, relay contacts and a slot for an optional network/SNMP/ModBus communication card for remote management. Output receptacles include 2 x Australian 10A and 3 x IEC 60320 C13. Hot-swappable sealed lead-acid battery, user-replaceable. Typical backup is approximately 2 minutes at full load (420 W) and several minutes at reduced loads (manufacturer-listed runtimes ~9–10 minutes at partial load). |
| Form Factor | Tower (1U height) |
| Battery Type | Sealed lead-acid |
| Product Type | Line-interactive UPS |
| Sub-Category | Power Equipment |
| Input Current | 10 A |
| Product Title | Eaton 5P 650VA / 420W Line-Interactive Tower UPS (5P650AU) |
| Acoustic_Noise | <= 40 dB(A) at 1 m |
| Outlet_Control | Individually controlled outlets / load-segmentation (remote reboot / prioritized shutdown) |
| Output Current | 10 A |
| Output Waveform | Pure sine wave (on battery) |
| Battery Features | Hot-swappable User-replaceable ABM® battery management and temperature-compensated charging Automatic battery test Deep-discharge protection |
| Input Connection | 1 x Australian 10A (fixed connection) |
| Output Frequency | 50/60 Hz (autosensing), ±0.1% on battery |
| Relative_Humidity | 0–90% non-condensing |
| Output Receptacles | 2 x Australian 10A 3 x IEC 60320 C13 |
| Additional_Features | High-density protection (compact 1U tower design) Energy metering and kWh reporting via LCD/software Adjustable input sensitivity and configurable input window Autoshutdown capability |
| Control_and_Display | Graphical multilingual LCD with navigation keys; 3 LEDs |
| Included_In_Package | UPS unit USB cable Serial cable IEC-IEC cables Quick Start Guide / Safety Instructions Software CD or download instructions (Eaton Intelligent Power Software) |
| Input Voltage Range | 160–294 V (adjustable to 150–294 V) |
| Output Voltage Range | 230 V (+6% / -10%) |
| Input Frequency Range | 47–70 Hz (50 Hz system); variants allow broader ranges |
| Input Nominal Voltage | 230 V (configurable 200/208/220/230/240 V) |
| Operating_Temperature | 0 to 35 °C |
| Output Nominal Voltage | 230 V (configurable 200/208/220/230/240 V) |
| Physical_Dimensions_mm | Depth: 345 Width: 150 Height: 230 |
| Regulatory_Part_Number | 5P650AU |
| Safety_and_Certifications | IEC/EN 62040-1 IEC/EN 62040-2 (EMC) IEC/EN 62040-3 (performance) C-Tick CE CB report ISO9001 ISO14001 |
| Management_and_Communications | USB_Port: 1 (data) Serial_Port: 1 x RS-232 (cannot be used simultaneously with USB) Expansion_Slot: 1 slot for optional Network-MS / ModBus-MS / Relay-MS card Relay_Contacts: Included Network_Manageable: Via optional communication card (SNMP/Web card) Mini_Terminal_Block: Remote ON/OFF and Remote Power Off Software_Compatibility: [ "Eaton Intelligent Power Manager", "Eaton Intelligent Power Protector", "Eaton Intelligent Power Software suite" ] |
