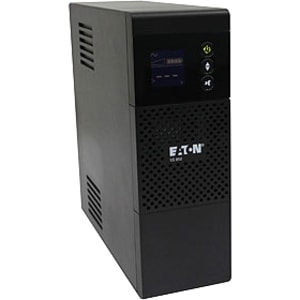

Eaton 5s 850va/ 510w Line Interactive Ups Lcd 5s850au
General
Topology Line-Interactive (AVR with Booster + Fader)
Configuration Tower or under monitor
Part Number 5S850AU
Color Black
Rating (VA/Watts) 850/510
Dimensions (H x W x D, mm) 250 x 87 x 382
Weight (kg) 9.48
Warranty 2 years warranty including batteries
Electrical Input
Connection
(1) Aust. 10A
Input Voltage Range 175V-275 V
Nominal Voltage 230 V
Operating Frequency 50-60 Hz autoselect
Electrical Output
Nominal Voltage 230 VAC
Output voltage regulation 230 V +/- 10%
Output Receptacles
(3) Aust. 10A
(3) Aust. 10A surge only
Battery
Battery Management Automatic battery test, deep-discharge protection, cold-start
capable, replaceable batteries
Communications
Communication Ports HID-compliant USB port for automatic integration with most
common operating systems (Windows Vista, 7 & 8, Linux, Mac OS X), cable supplied
Environmental & Standards
Audible Noise < 40 dB at 1 Meter
Operating Temperature 0 to 40?C
Safety markings IEC/EN 62040-1, IEC/EN 62040 -4
Markings CB Report, CE mark
Data Line Protection Tel/Fax/Modem/Internet and Ethernet
| Marketing Text | The Eaton 5S UPS provides cost-effective line-interactive backup power and voltage regulation for small and medium businesses with workstations, desktop PCs, telephone equipment and POS applications. |
| PI Date | Nov 2013 |
| Brand Name | Eaton |
| Manufacturer Web Site | http://www.eaton.com/ |
| Product Type | Uninterruptible Power Supply |
| Input Connection | 1 x Australian Connector |
| Output Connection | 6 x Australian Output Connector |
| Interface | 1 x USB |
| Input Voltage | 175 - 275Volt |
| Output Voltage | 230Volt |
| Power Rating | 850VA |
| Input Frequency | 50 - 60Hz |
| Depth (mm) | 382.0 |
| Height (mm) | 250.0 |
| Width (mm) | 87.0 |
| Weight (Kg) | 9.5 |
| Colour | Black |
| Dataline Protection | Tel/Fax/Modem/Internet/Ethernet |
| Other Features | * Battery Management - Automatic battery test, deep-discharge protection, cold-start capable, replaceable batteries |
| Operating Temperature | 0 - 40°C |
