Brand	Eaton
Model	5SX1750RAU
Notes	Rail kit not included (optional). Outlet and input ratings listed as 10 A IEC connectors.
Ports	1 × USB 1 × RS232 (Serial) 1 × communication slot (management card)
Weight	32 kg
Features	LCD display for real-time status and measurements Automatic Voltage Regulation (AVR) Pure sine wave output Cold start (start without utility power) Hot-swappable batteries Supports up to 4 Extended Battery Modules (EBM) Eaton Intelligent Power Software Suite compatibility Energy Star certified (as listed)
Topology	Line-interactive, pure sine wave output
UPS Type	Line-interactive
Warranty	2 years limited (24 months return-to-base listed)
Capacity_W	1575 W
Dimensions	57 × 20 × 68 cm
Capacity_VA	1750 VA
Capacity_kW	1.58 kW
Description	The Eaton 5SX1750RAU is a line-interactive 2U rack/tower convertible UPS delivering 1750 VA / 1575 W (1.58 kW) of protected power. It provides pure sine wave output with AVR, an LCD interface for real-time status, and hot-swappable batteries with optional cold-start capability. Connectivity includes USB, RS232 (serial) and a communication slot for management; up to four Extended Battery Modules (EBM) can be added for extended runtime. The unit features 8 x IEC 60320 C13 output outlets and an IEC C14 (10 A) input, and is backed by a 2-year limited warranty.
Form Factor	2U Rack/Tower (selectable rack or tower configuration; optional rail kit required for rack mounting)
Rack Height	2U
Ports Detail	USB and RS232 (serial) connectivity plus an add-in communication slot
Input Voltage	230 V AC

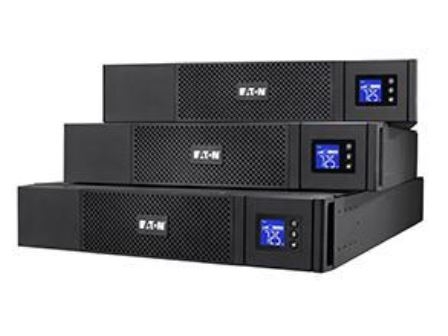

Product Title	Eaton 5SX1750RAU 1750VA (1575W) Line-Interactive 2U Rack/Tower UPS
Output Sockets	8 × IEC 60320 C13 (10 A)
Input Connector	IEC C14 (10 A)
Shipping Weight	28 kg (as listed)
Software/Management	Eaton Intelligent Power Software Suite; serial/USB and communication slot for management
Manufacturer Part Number	5SX1750RAU
Extended Battery Modules Supported	Up to 4 EBMs

Eaton Eaton 5SX 1750VA / 230V Rack/Tower 2U is a supplier-matched product available from Spot IT. Use this item for compatible business, office, and IT requirements. Manufacturer part number: PW100038. Order online for Australia-wide delivery with local support.
