MPN	6000MBS1
SKU	6000MBS1
Brand	Eaton
Model	6000MBS1
Weight	1.40 kg
Voltage	240 V
Category	Power and Rack Equipment
Warranty	12 months (manufacturer warranty)
Condition	New
Dimensions	Depth: 130 mm Width: 190 mm Height: 190 mm

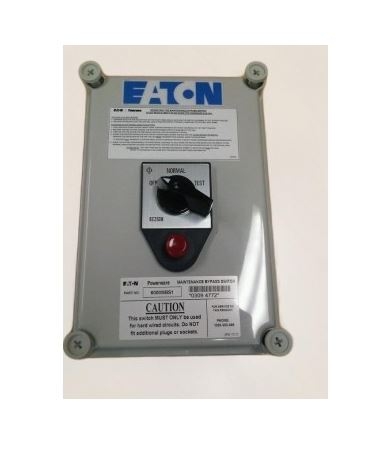

Description	The Eaton 6000MBS1 is a hardwired, interlocked external maintenance bypass switch for 1–6 kVA UPS systems. Designed for safe, seamless transfer during UPS maintenance, it features a voltage-free relay interlock, potential-free switch contact, instantaneous (0 ms) transfer, and supports single-phase 240V input/output. Suitable for commercial and industrial applications, the unit accepts up to 6 mm² cable and is compatible with Eaton Powerware 9130 6kVA UPS and Eaton 9SX systems. Free‑standing silver enclosure; professional installation by a qualified electrician is required. Includes unit and user guide. 12-month manufacturer warranty.
Form Factor	External / Free-standing
Applications	Maintenance bypass for UPS systems, commercial and industrial power management
Finish/Color	Silver
Manufacturer	Eaton
Power Rating	1-6 kVA
Product Type	Maintenance/Bypass Switch
Sub-Category	Power Equipment
Compatibility	Eaton Powerware 9130 6kVA UPS Eaton 9SX UPS systems
Product Title	Eaton 6000MBS1 1-6kVA Hardwired Interlocked External Bypass Switch (Max 6mm², 240V)
Transfer Time	0 ms (instantaneous)
Max Cable Size	6 mm²
Relay Interlock	Voltage-free (potential-free) relay interlock
What's Included	Eaton 6000MBS1 bypass switch User guide
Input/Output Phase	Single-phase
Potential Free Contact	Yes
Standards & Compliance	AS/NZS 3000 (wiring rules) — as referenced by product documentation
Manufacturer Part Number	6000MBS1
Installation Requirements	Professional installation by a qualified electrician required

Eaton Eaton 6000MBS1 1-6kVA Hardwired interlocked external bypass (max 6mm cable) is a supplier-matched product available from Spot IT. Use this item for compatible business, office, and IT requirements. Manufacturer part number: PW89020. Order online for Australia-wide delivery with local support.
