SKU	9E10Ki
UPC	743172067678
Brand	Eaton
Model	9E10KI
Category	Power and Rack Equipment > Power Equipment
Topology	Online / Double-conversion
Weight_kg	85.39
Description	Eaton 9E10KI is an online double-conversion tower UPS delivering 10 kVA / 8 kW (PF 0.8) protection for critical IT, telecom, industrial and medical applications. The unit provides sinewave output, internal and maintenance bypass for service continuity, an LCD for real-time status, USB (HID) and RS232 communications plus one slot for optional network or relay/ModBus cards. It uses sealed lead-acid batteries (20 × 12 V / 9 Ah) with replaceable batteries and supports up to 4 external battery modules (EBMs) for extended runtime. Compact freestanding design with high efficiency (≈92% full load, up to 96% in eco-mode) and broad input range for demanding power environments.
Form Factor	Tower (free standing)
Noise Level	<55 dB at 1 m
Part Number	9E10KI
Battery Type	Sealed, lead-acid
Power Factor	0.8
Phase (Input)	Single-phase

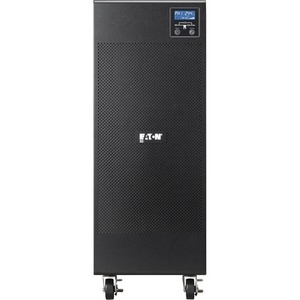

Product Title	Eaton 9E10KI 10 kVA / 8 kW Online Double-Conversion UPS (Tower, Hardwired)
Battery Rating	12 V / 9 Ah
Hot Swap Power	No
Phase (Output)	Single-phase
User Interface	LCD display (real-time status and measurements)
Internal Bypass	Yes
Output Waveform	Pure sine wave
Active Power (W)	8 kW
Battery Quantity	20
Input Connection	Hardwired / fixed connection
Output Frequency	50/60 Hz
Package Contents	UPS USB cable Serial cable User manual
Variants / Notes	XL model available for extra-long runtime (internal supercharger) for select 10 kVA variant
Input Voltage Max	276
Input Voltage Min	110
Nominal Frequency	50/60 Hz
Output Connection	Hardwired
Power Consumption	720 W
Rack Mounting Kit	No
Relative Humidity	0-95% non-condensing
Battery Management	Automatic battery test; deep-discharge protection
Input Power Factor	>.99
Input/Output Notes	Combo input (selectable 3:1 and 1:1) available on 10 kVA models
Maintenance Bypass	Available (standard option)
Apparent Power (VA)	10 kVA
BTU Rating (online)	2456
Communication Ports	USB (HID compliant) Serial (RS232) Mini terminal block for remote power off
Input Voltage Range	176-276 V (110-276 V with derating)
Output Voltage Range	220/230/240 V ±2%
Runtime at Full Load	6 min
Runtime at Half Load	14.5 min
Alternate Part Number	9105-32343
Batteries Replaceable	Yes
Efficiency (Eco-mode)	≈96%
Input Frequency Range	45-66 Hz
Input Nominal Voltage	400 V / 230 V
Network Card Included	No
Operating Temperature	0° to 40° C (32° to 104° F)
Additional Identifiers	ETIM: ETIM for 9E10KI (Data networking products EC000382)
Efficiency (Full Load)	≈92%
Output Nominal Voltage	230 V (default; selectable 220/230/240 V)
Software Compatibility	Eaton Intelligent Power Manager Eaton Intelligent Power Protector
Dimensions (H × W × D)	Depth_cm: 61.29 Width_cm: 26.24 Height_cm: 70.85
Maximum Operating Altitude	3000 m
Output Power Factor Rating	0.8
Extended Battery Capability	Yes (up to 4 external battery modules / EBMs)
Number of Hardwired Outputs	1
Virtualization Compatibility	VMware Hyper-V Citrix Xen Red Hat
Certifications and Compliance	IEC/EN 62040-1 IEC/EN 62040-2 CE EAC TUV (CB report)
Potential Free Switch Contact	Yes
Expansion Slot / Optional Cards	1 slot for optional communication card (Network-M2, ModBus-Jbus, Relay/Serial cards)
Max Number of Battery Packs / EBMs	4
Output Voltage Distortion (linear load) - max	≤3%

Eaton EATON 9E 10KVA/8kW Online Tower UPS HW is a supplier-matched product available from Spot IT. Use this item for compatible business, office, and IT requirements. Manufacturer part number: PW87609B. Order online for Australia-wide delivery with local support.
