SKU	9E1000IAU
GTIN	786689166601
Brand	Eaton
Model	9E1000IAU
Notes	USB and RS232 ports cannot be used at the same time. Runtime varies by load and EBM configuration. Some listings reference XL or alternate models for different kVA sizes.
Runtime	Dependent on load and EBM configuration (refer to runtime charts)
Category	Power and Rack Equipment
Topology	Online double-conversion (On-line)
Warranty	12 months (1 year) limited warranty
Weight_kg	9.5 kg
Capacity_W	800 W
Capacity_VA	1000 VA
Description	The Eaton 9E 1000VA/800W (model 9E1000IAU) is an online double-conversion tower UPS delivering continuous, clean power for critical IT, industrial, medical and telecom equipment. Featuring a 0.8 power factor and pure sine wave output, the 9E conditions input power and protects connected devices from sags, surges, frequency variations and noise. The unit includes an intelligent LCD for real-time status (load, battery, voltages, frequency), USB and RS232 communication ports (cannot be used simultaneously), a single communication card slot for optional Network-M2 / INDGW-M2 / Relay-MS cards, internal and maintenance bypass, and support for up to four external battery modules (EBMs) for extended runtime. Eaton IPM management software compatibility and CE/TUV (CB report) certification ensure manageability and regulatory compliance. Tower, single-phase form factor designed for rack-adjacent or standalone deployments.
Form Factor	Tower (single-phase)
LCD Display	Yes (intelligent LCD with load, battery, input/output voltage and frequency readouts)
Wiring Type	Single-phase
Applications	Servers / IT infrastructure Networking equipment Industrial and medical IT Storage systems Telecommunications equipment
Power Factor	0.8
Sub-Category	Power Equipment
Dimensions_mm	144 x 356 x 228 (W x D x H) mm

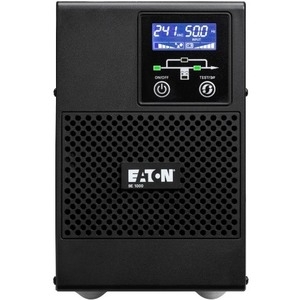

Product Title	Eaton 9E 1000VA / 800W Online Double-Conversion Tower UPS (9E1000IAU)
Certifications	CE (TUV certified, CB report)
Input Connector	1x IEC C14 (10 A)
Internal Bypass	Yes
Nominal Voltage	208 / 220 / 230 / 240 V (for 0-3 kVA models)
Output Waveform	Pure sine wave
Output Frequency	50/60 Hz autosensing
Output Connectors	4x IEC C13 (10 A)
Maintenance Bypass	Yes
Communication Ports	USB, RS232 serial (USB and RS232 cannot be used simultaneously)
Input Frequency Range	40–70 Hz
Alternate I/O Reported	One source reports an additional C19 16A output on some configurations
Software Compatibility	Eaton IPM (management software)
Extended Battery Support	Supports up to 4 external battery modules (EBMs) for extended runtime
Manufacturer_Part_Number	9E1000IAU
Communication Slot / Cards	1 communication card slot (supports Network-M2, INDGW-M2, Relay-MS); optional Relay and ModBus cards

Eaton Eaton 9E 1KVA/800W Online Tower UPS IEC is a supplier-matched product available from Spot IT. Use this item for compatible business, office, and IT requirements. Manufacturer part number: PW60000. Order online for Australia-wide delivery with local support.
