MPN	9E3000IAU
SKU	9E3000IAU
GTIN	786689166625
Brand	Eaton
Model	9E3000IAU
Notes	True online double-conversion technology with high power density and utility frequency independence Standard communication options; optional network and relay cards available LCD provides single-screen status and measurements
Phase	Single-phase
Bypass	Internal bypass and maintenance bypass available
Series	9E
Weight	24.2 kg
Display	LCD interface (shows load level, battery level, input/output voltage, frequency and backup status)
Topology	Online Double Conversion
Warranty	1 year limited / 12 months manufacturer warranty

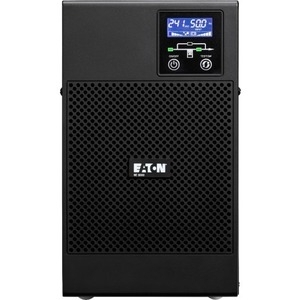

Description	The Eaton 9E 3kVA tower UPS (model 9E3000IAU) provides true online double-conversion power protection for servers, networking, storage, telecom and critical IT/medical equipment. Delivering 3000 VA (2400 W at 0.8 power factor), the unit features an LCD status display, USB and RS-232 communication ports, an expansion slot for optional network/relay cards, and support for up to four external battery modules (EBMs) for extended runtime. Designed for generator compatibility and continuous voltage/frequency regulation, the 9E includes internal and maintenance bypass capability and is CE certified (CB report from TUV). Dimensions: 190 x 399 x 330 mm (W x D x H). Weight: 24.2 kg. 1-year limited manufacturer warranty.
Form Factor	Tower
Part Number	9E3000IAU
Power Factor	0.8
Product Type	Online Double-Conversion UPS (Tower)
Suitable For	Infrastructure Industrial and medical IT Networking Storage Telecom
Product Title	Eaton 9E 3kVA (3000VA / 2400W) Online Double-Conversion Tower UPS - 9E3000IAU
Certifications	CE (CB report from TUV)
Product Family	9E
Frequency Range	40 - 70 Hz
Nominal Voltage	208 / 220 / 230 / 240 V
Extended Runtime	Supports up to 4 external battery modules (EBMs); XL internal-supercharger models available for extended runtime on select ratings
Input Connection	1 x IEC C20 (16A)
Nominal Frequency	50/60 Hz (autosensing)
Power Rating (VA)	3000 VA
Output Receptacles	6 x IEC C13 (10A) + 1 x IEC C19 (16A)
Communication Ports	1 x USB 1 x RS-232 (serial) -- USB and RS-232 cannot be used simultaneously 1 x communication expansion slot (supports Network-M2, INDGW-M2, Relay-MS)
Included Accessories	Quick start guide Battery power cable
Output Power (Watts)	2400 W
Dimensions (W x D x H)	190 x 399 x 330 mm
Generator Compatibility	Yes

Eaton Eaton 9E 3KVA/2.7kW Online Tower UPS IEC is a supplier-matched product available from Spot IT. Use this item for compatible business, office, and IT requirements. Manufacturer part number: PW60002. Order online for Australia-wide delivery with local support.
